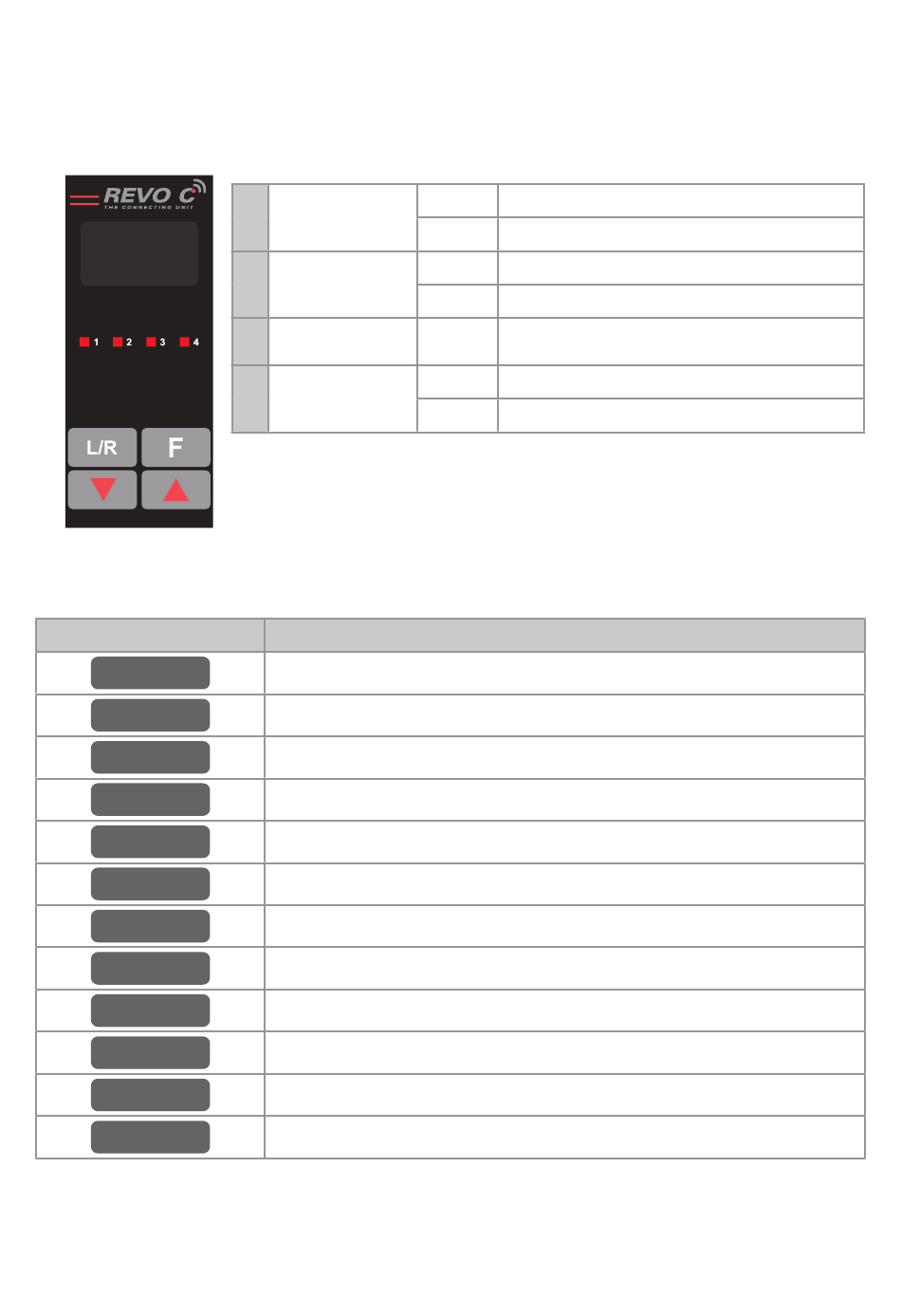

9.2 Control Panel Led

The four indicators on the control panel show the general state of the power controller.
Aux High
SP 100%

9.3 Displayed alarms

Alarm
HeatBrk
Aux High
Aux Low
ComError
Line Loss
SD Error
SHRT
SCR Temp
Line Loss
Phase Loss
FAN
FUSES
1
Local/Remote
2
Enable
3
Communications
4
Alarm
Description
Heater Break
Aux voltage too high
Aux voltage too low
Communication Watchdog error
Line power not detected
SD card error
Short Circuit on SCR
Thermal Switch over temperature
L1 and L2 not detected
L1 or L2 or L3 not detected
Indicate that a fan is not working properly or not supplied
Indicate if a fuse is burned
Flashing Power output set locally or via communications
Off Power output set remotely (via analog input)
On Output enabled
Off Output disabled
Flashing Active communications
Flashing Active alarm
Off No alarm
