Wiring instructions

The Thyristor unit could be susceptible to interferences lost by near equipments or by the power supply, for
this reason in accord to the fundamental practices rules is opportune take some precautions:
• The coil contactor, the relays and other inductive loads must be equipped with opportune RC filter.
• Use shielded bipolar cables for all the input and output signals.
• The signal cables must not be near and parallel to the power cables.
• Local regulations regarding electrical installation should be rigidly observed.
Use 75°C copper (CU) conductor only, wire ranges (AWG), wire terminal type (ZMVV), terminal tightening
torque in the table below.

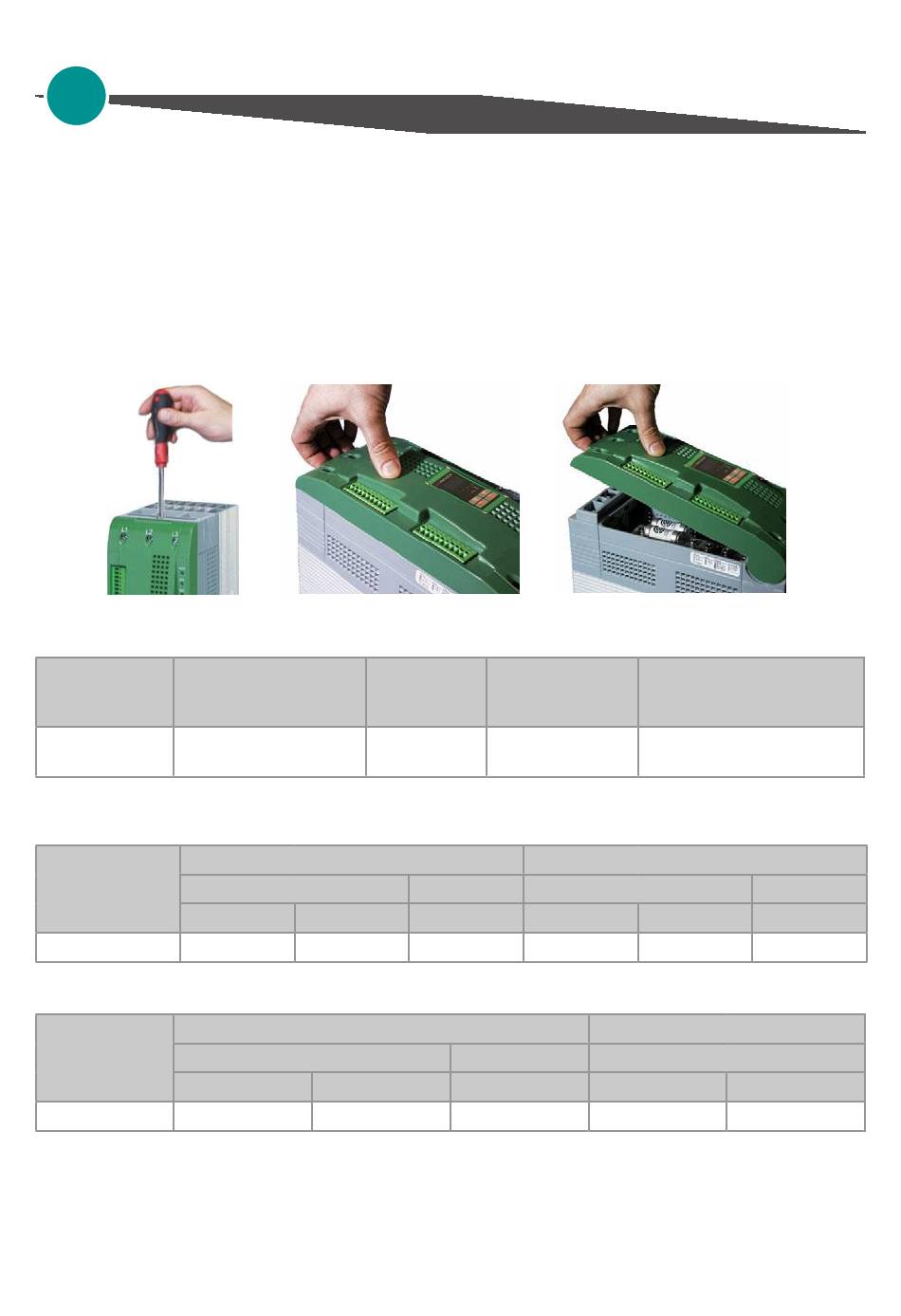

8.1 Removing the cover

8.2 Power cable torque (suggested)

Current
280A Terminal Block M8

8.3 Power cable dimensions (suggested)

Current
280A

8.4 Cable dimensions (suggested) of Earth and of the Command Terminals

Current
280A
Connector type
Supply
Cable
mm² AWG
120 4/0
Earth
Cable
mm² AWG
25 4
Wire
Torque
Range
Lb-in (N-m)
AWG / kcmil
265 (30.0)
3/0
Screw
M
M8
Screw
M
M6
20
User's manual
Terminal
1 Copper wire
Compact (Solid) Stranded
Load
Cable
mm² AWG
120 4/0
Command Terminals
Cable
mm²
0,50
Wire
Screw
M
M8
AWG
18
