10.5.8 To reset the power totals:
1) Click Test, if not already on the test view
2) Click Online
3) Click Reset Totals
4) Click Yes

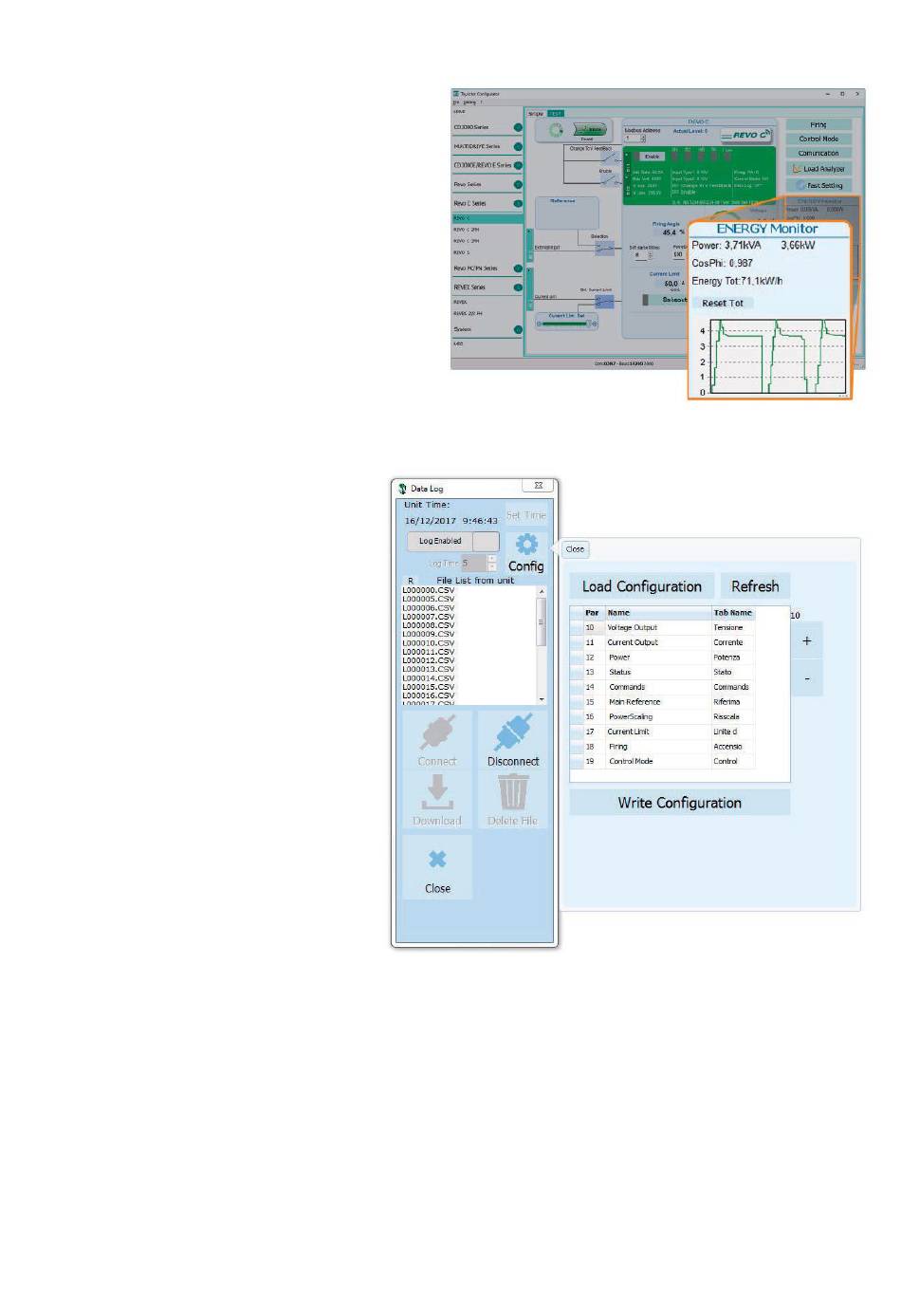

10.5.9 Setting Up and Using Data Logging
To set up data logging:
1) Click Test, if not already on the test view
2) Click Online
3) Click Load Analyzer
4) On the Load Analyzer
Log
5) In the Data Log window ensure the
slider is set to Log Enabled
6) Click Set Time
7) If necessary Set the date and time and
close the date/time window
8) Set Log Time to the number of seconds
between records
9) Click
Connect
10) Click Confi g
11) Click Load Confi guration
current list of logged parameters
12) For up to ten parameters to log:
-Click + to add a parameter to the list
-In a row in the list either: Type a parameter's Modbus address in the
OR
-Select the parameter from the drop down list in the
13) Click Write Confi guration
14) Click
Close
15) Click Disconnect
16) Close the Data Log
view click Data
to view the
to send the parameter list to the controller
window
Par
Name fi eld
