Connection Diagram For 3 Phases (Control On 2 Phases) - CD Automation REVO C 2PH 1100A User Manual

REVO C
2PH from 1100A to 2100A

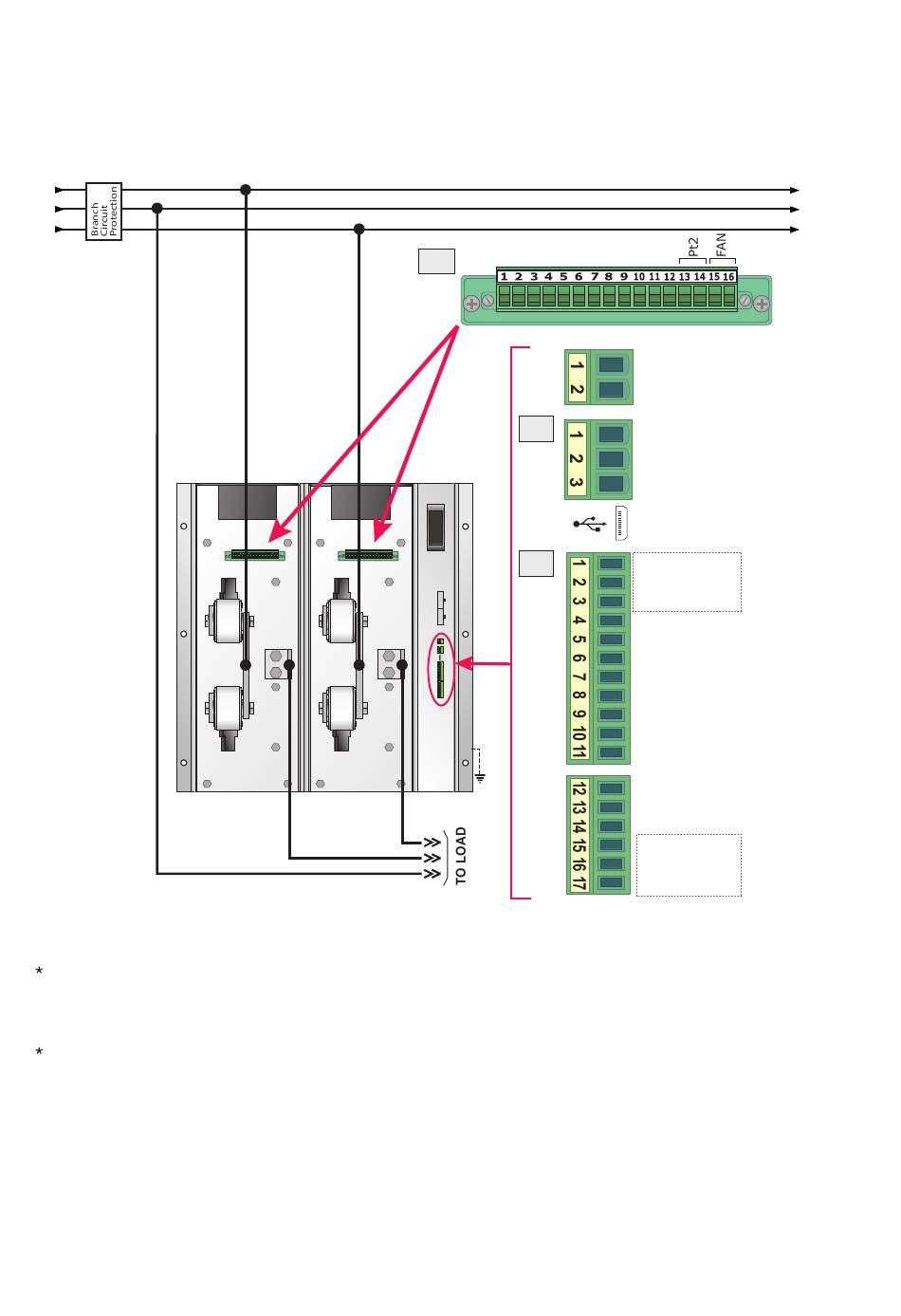

8.10 Connection Diagram for 3 phases (control on 2 phases)

L1
L2
L3
*1
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection. For UL any listed UL branch circuit fuse would be acceptable
as an external fuse, following national electric code guide for resistive heating of 125% load current rating
to protect external wires.
2 For the voltage value see Order Code (230V-120V)
T1 T3
L1 L3
MX
1-2
M4
M5
37
User's manual
L1
L2
L3
*2
SYNC
Voltage
AUX
Supply
*2
Not connected
Voltage
AUX
Supply
NO HB Relay
Alarm
-
COM
General
Alarm Unit
NC
Analog Input 2
ENABLE
Conf. Input / SSR
RS485+
RS485-
+10V
GND
AN- Analog Input 1 Setpoint
AN+ Analog Input 1 Setpoint
COM-DI
Not connected
NC
Fuse
COM
Alarm
NO
