10.6.5 Data Log Window

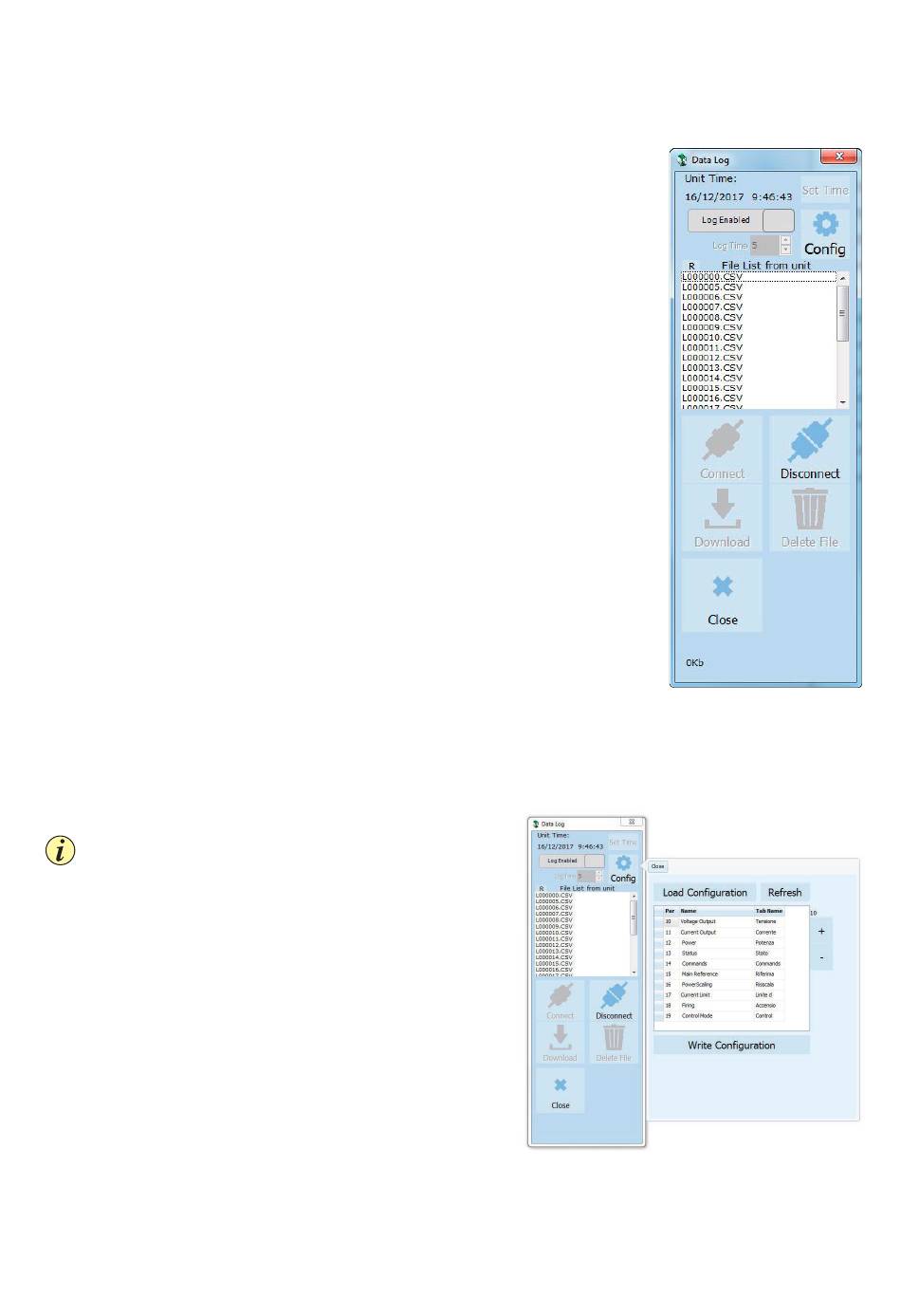

In the power controller the data log window is used to manage fi les and set up
logging parameter like log interval time and date/time in rtc
Log Enabled/Log Disabled
Log Time: the time between data log records in seconds
g: opens the data log confi guration window to customize the variable to
Confi
log
File List: lists the data log fi les available in the power controller
Connect: the power controller enter in log mode and permit the fi le manage
Disconnect: the power controller close the log mode
Download: download the selected fi le from the power controller to the computer
Delete File: erases the selected fi le from the power controller
Close: closes the Data Log window and close the log mode on power controller.
10.6.6 Data Log Confi guration window
Data log confi guration window is used to view and set the parameter log table.
Close: closes the window
Load Confi guration: refresh and displays the list of parameters being logged
Logged parameters list-the parameters confi guration table
Par: view or enter the Modbus address of the parameter
to log
NOTE: is possible to set all parameter number describe
in the Modbus communication manual
Name: view or choose by name of common parameter to
log
Tab Name: indicates the name of the logged parameter as
displayed in the log fi le
+
button: adds a row to the list
- button: removes the last row from the list
Write Confi guration: sends the list of parameters to be
logged to the controller
slider: Enable and disable data logging function.
