8.3 IP20 Cover OPTION

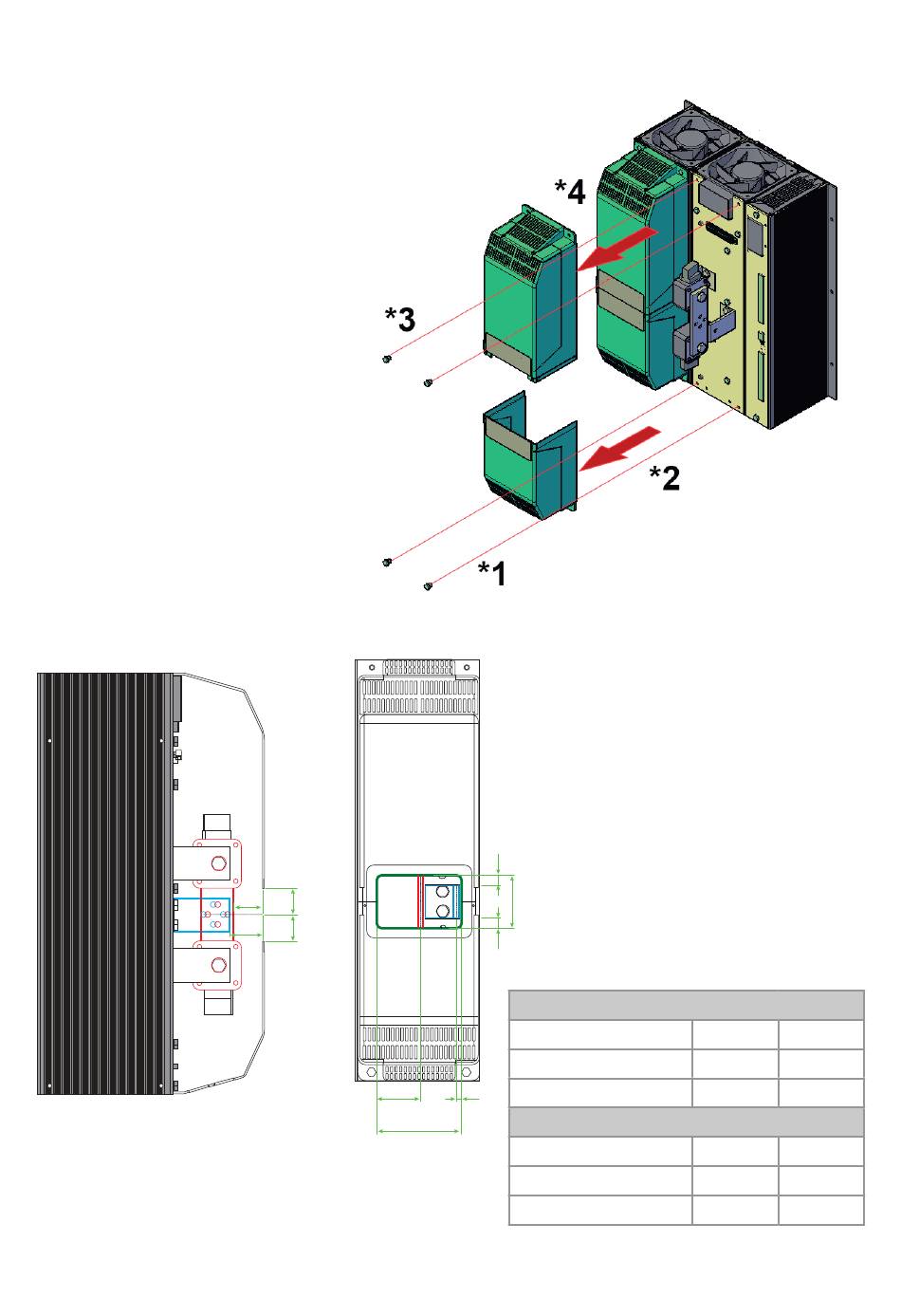

6.3.1 Removing the IP20 cover
For each phase:
*1 Unscrew the two bottom M6 screws.
*2 Pull out the bottom cover.
*3 Unscrew the two upper M6 screws.
*4 Pull out the upper cover.
40
45,5
40
52
A
128
15
80
15
6.3.2 IP20 Cover dimension
600V
1100A
1400A-1600A-1800A
B 2100A
690V
1100A
1400A-1600A-1800A
2100A
28
User's manual
A: 64mm B: 10mm
A: 65mm B: 11mm
A: 80mm B: 12mm
A: 78mm B: 10mm
A: 79mm B: 11mm
A: 80mm B: 12mm
