6. Communicator Configuration
6.1. Connect the Communicator
Procedure

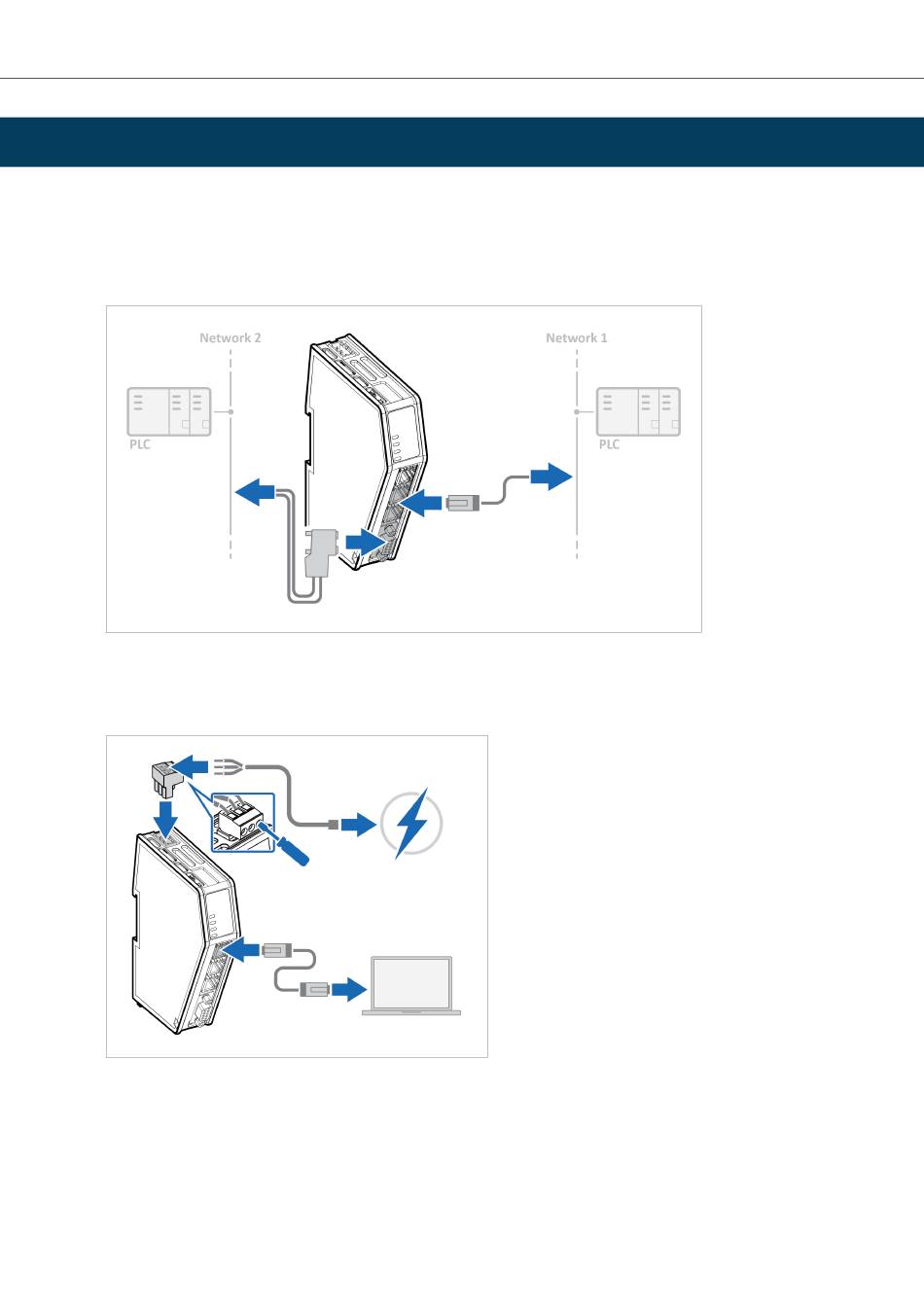

Connect to PROFINET and PROFIBUS network
Network 1 = PROFINET Network 2 = PROFIBUS
Connect to PC and Power
1.
Connect an Ethernet cable between the Communicator and your PC.
2.
Connect the Communicator to a power supply.
SCM-1202-202 Version 1.0
®
™
Anybus
Communicator
- PROFINET Device to PROFIBUS Device
Page 23 of 60
