Connect to Power

5.6. Connect to Power
CAUTION
Ensure that the power supply is turned off before connecting it to the equipment.
IMPORTANT
Using the wrong type of power supply can damage the equipment. Ensure that the power supply is
connected properly and of the recommended type.

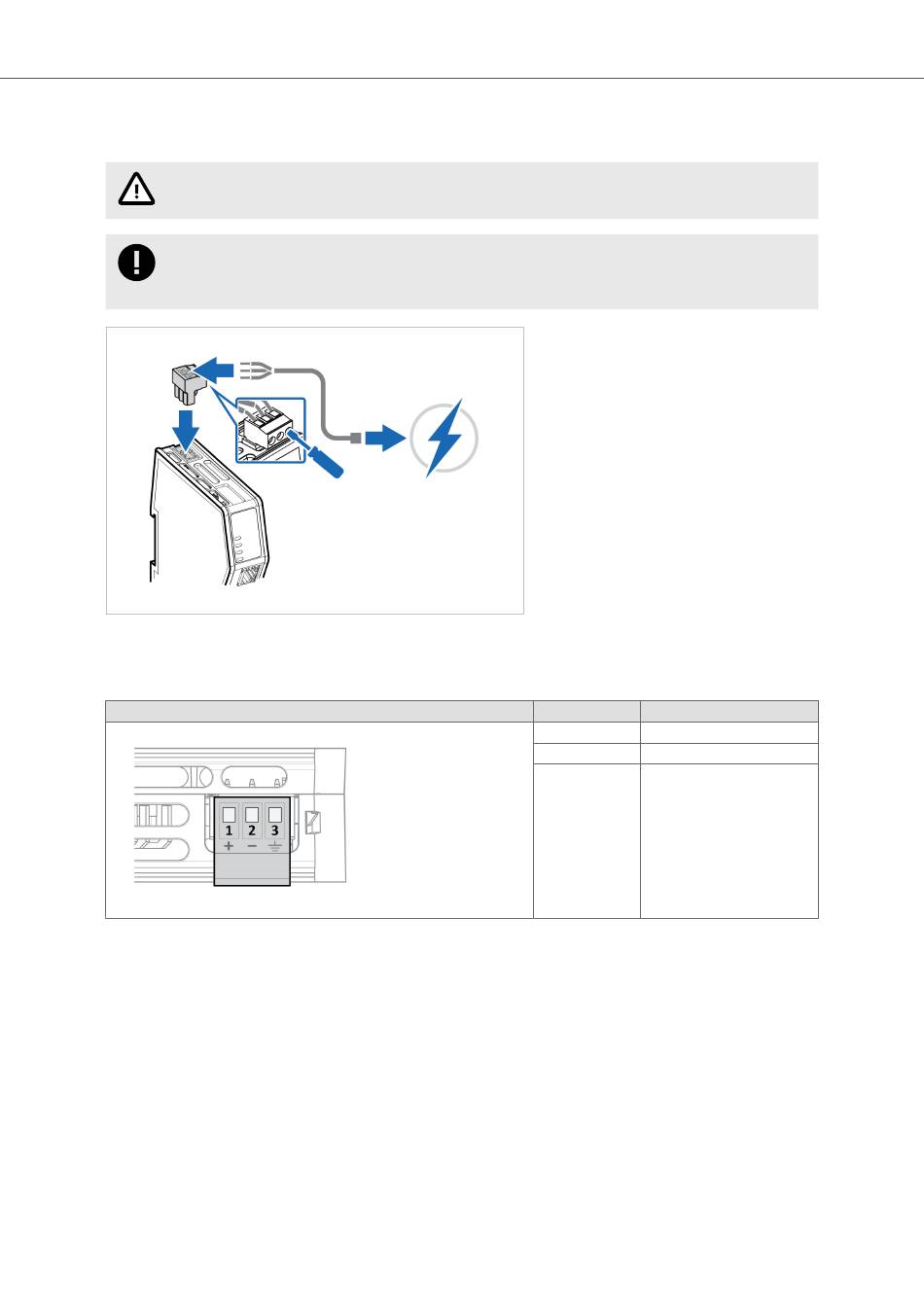

Figure 10. Connect to power
1. Insert the cable wires to the terminal block and tighten the wire clamp screws.
Power port
2. Connect the terminal block to the Communicator.
3. Connect the Communicator to a power supply.
4. Turn on the power supply.
To Do Next
Check LED status, refer to Communicator LED
SCM-1202-202 Version 1.0
®
Anybus Communicator
Pin
1
2
3
Indicators.
™
- PROFINET Device to PROFIBUS Device
Description
12-30 VDC Power Connector
Ground (GND)
Functional Earth (FE)
Page 17 of 60
