5.5.2. Set a Node Address with Rotary Switches

About the Rotary Switch Settings
TIP
Use Windows Calculator (or similar application) to convert between hexadecimal (hex) and decimal
(dec).
• The default node address setting is 000.
• The node address values are set in hexadecimal (hex).
• Minimum value is 00.
• Each node address may only occur once in the network.

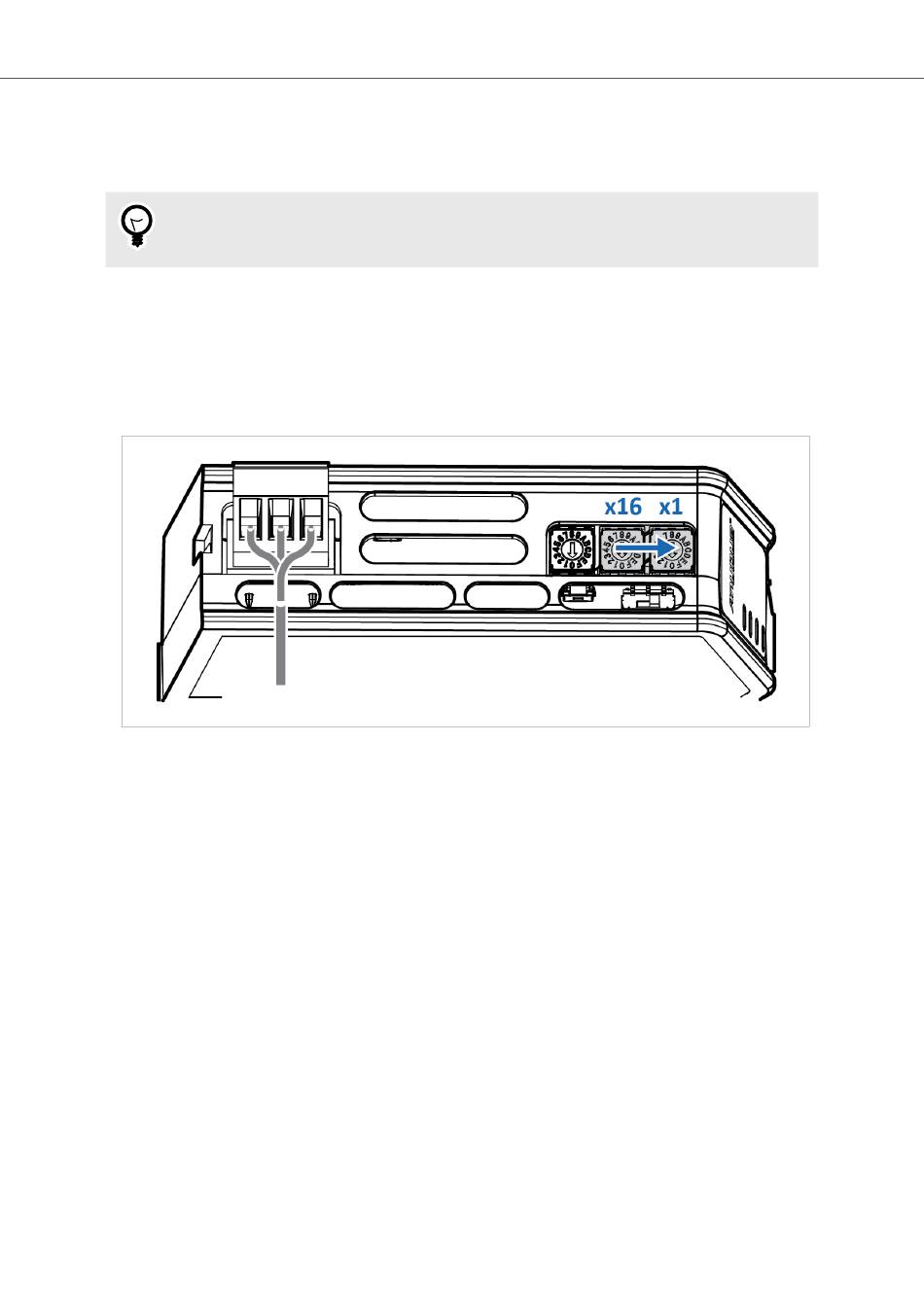

• The node address is read from the center rotary switch x16 to the front rotary switch x1.
• The rear rotary switch is not used, ensure that it is set to 0.
