How the Data Exchange Works

Anybus Communicator - PROFINET Device to PROFIBUS Device
4.2. How the Data Exchange Works

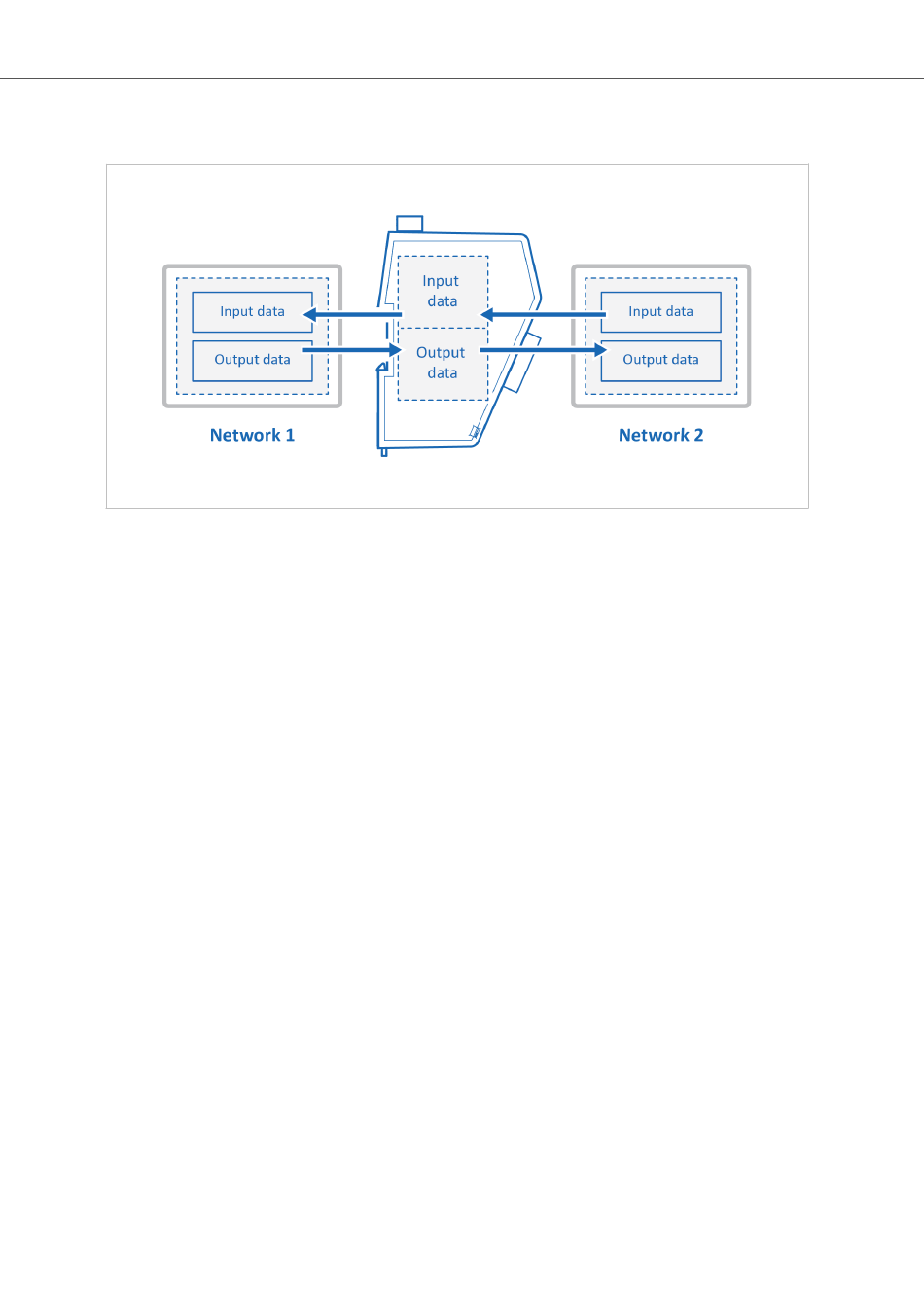

Figure 2. The Communicator internal memory areas
The data exchanged between the Communicator and the PROFINET and the PROFIBUS resides in the
Communicator internal memory buffer.
The Communicator internal memory buffer is divided into two areas: Input data and Output data.
Input Data
This Input data area is read by the PROFIBUS.
The Communicator can handle up to 244 bytes input data.
Output Data
The Output data area is read/written by the PROFINET.
The Communicator can handle up to 1024 bytes output data.

4.3. Data Integrity

A snapshot of the process data buffer between the PROFINET/PROFIBUS Client and the server interface is used
during the operation of executing all the transactions within one cycle.
When the cycle is completed, the process data available on the server interface is updated and a new snapshot is
created for the next cycle.
