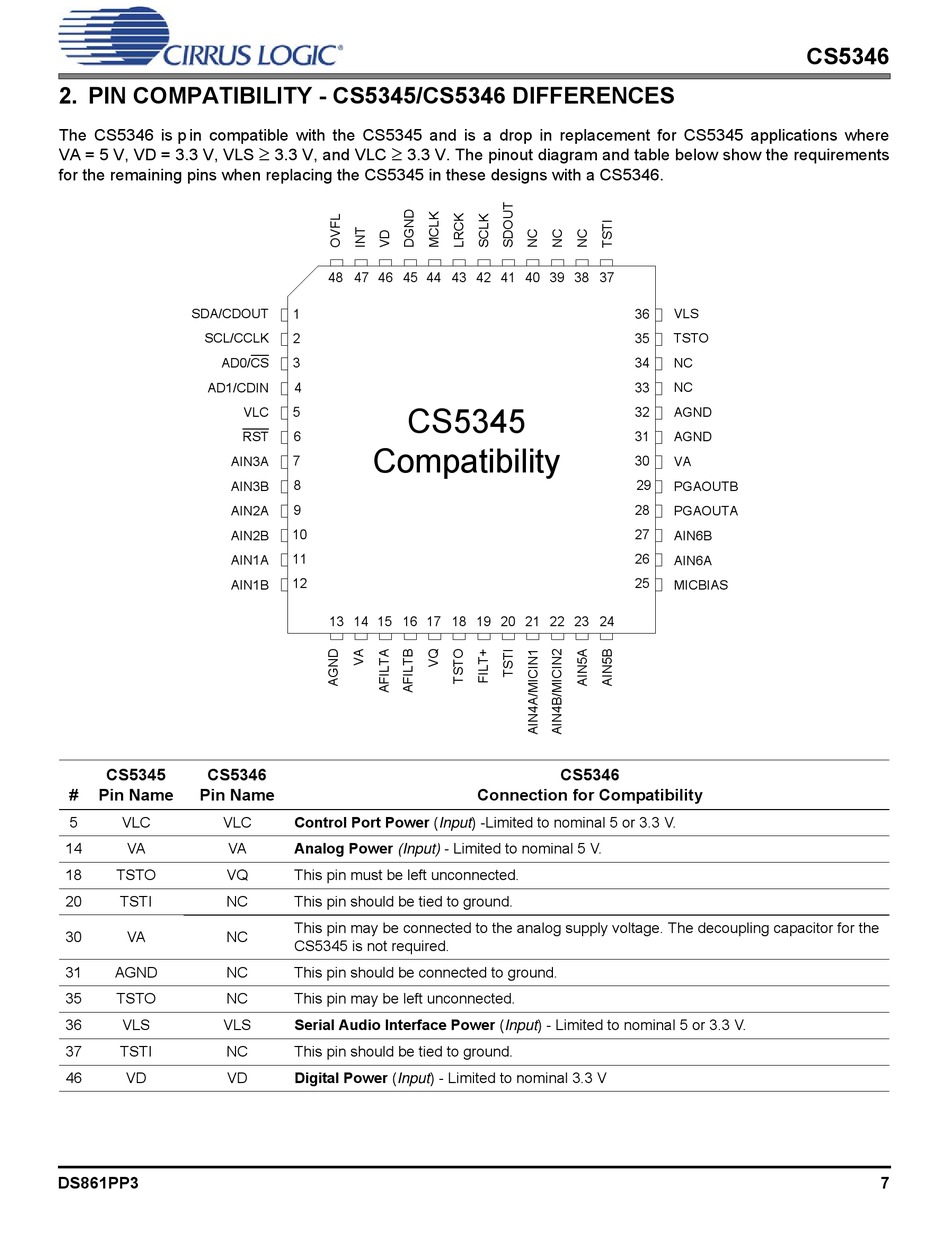

2. PIN COMPATIBILITY - CS5345/CS5346 DIFFERENCES

The CS5346 is p in compatible with the CS5345 and is a drop in replacement for CS5345 applications where
VA = 5 V, VD = 3.3 V, VLS
for the remaining pins when replacing the CS5345 in these designs with a CS5346.
SDA/CDOUT
SCL/CCLK
AD0/CS
AD1/CDIN
AIN3A
AIN3B
AIN2A
AIN2B
AIN1A
AIN1B
CS5345 CS5346
# Pin Name Pin Name
5 VLC VLC
14 VA VA
18 TSTO VQ
20 TSTI NC
30 VA NC
31 AGND NC
35 TSTO NC
36 VLS VLS
37 TSTI NC
46 VD VD
DS861PP3
 
3.3 V, and VLC 3.3 V. The pinout diagram and table below show the requirements
48 47 46 45 44 43 42 41 40 39 38 37
1
2
3
4
CS5345
5
VLC
RST 6
Compatibility
7
8
9
10
11
12
13 14 15 16 17 18 19 20 21 22 23 24
Control Port Power (Input) -Limited to nominal 5 or 3.3 V.
Analog Power (Input) - Limited to nominal 5 V.
This pin must be left unconnected.
This pin should be tied to ground.
This pin may be connected to the analog supply voltage. The decoupling capacitor for the
CS5345 is not required.
This pin should be connected to ground.
This pin may be left unconnected.
Serial Audio Interface Power (Input) - Limited to nominal 5 or 3.3 V.
This pin should be tied to ground.
Digital Power (Input) - Limited to nominal 3.3 V
