4.2.6. Signals

All available Modbus registers, its corresponding description and other main parmaters are listed in the signals tab.

4.2.7. Sending the configuration to Intesis

When the configuration is finished, follow the next steps.
1.- Save the project (Menu option Project->Save) on your hard disk (more information in Intesis MAPS User
Manual).
2.- Go to tab 'Receive / Send' of MAPS, and in Send section, press Send button. Intesis will reboot
automatically once the new configuration is loaded.
After any configuration change, do not forget to send the configuration file to the Intesis using the
Send button in the Receive / Send section.

4.2.8. Diagnostic

© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice

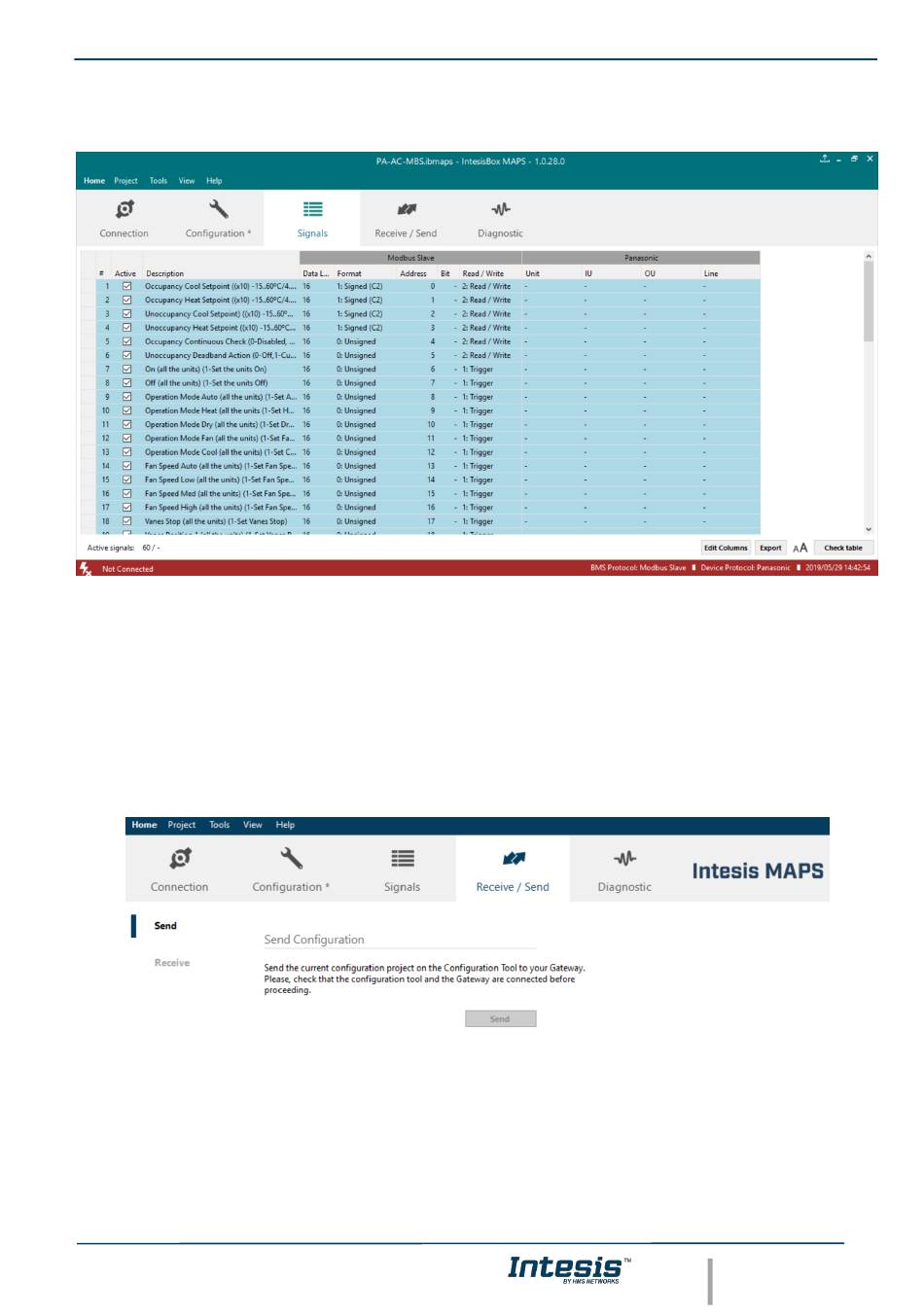

Figure 4.12 Intesis MAPS Signals tab
Figure 4.13 Intesis MAPS Receive/Send tab
