1) Enable consumption function and click in Edit button:
It will display this pop-up window:
It is possible to configure up to three energy meters using the selector at the top.
2) Energy meter configuration
The settings for the meters are:
Settings related to the installation:
•
Set energy meter active. It enables/disables the energy meter.
•
Description. Internal description for the meter.
•
IP Address. IP address where the energy meter is located.
•
Port. Port for the Modbus TCP/IP connection. 502 port by default.
•
Slave number. Slave Modbus address of the energy meter (1 to 254).
Settings related to the energy meter:
•
Modbus register (active energy imported). Modbus register to read (1 to 3000).
•
Register units. Units of the energy: Wh / kWh.
•
Read function. Modbus Read function to use with this register. Functions 3: Read Holding
Registers and function 4: Read Input Registers are supported.
•
Data length. Set the length of the data. (16, 32 or 64 data bits).
•
Format. Set the data format: 0: Unsigned / 1: Signed (C2) / 2: Signed (C1) / 3: Float.
•
Byte order. Set the data byte order: Big Endian / Little Endian / Word Inv BE / Word Inv LE.
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice

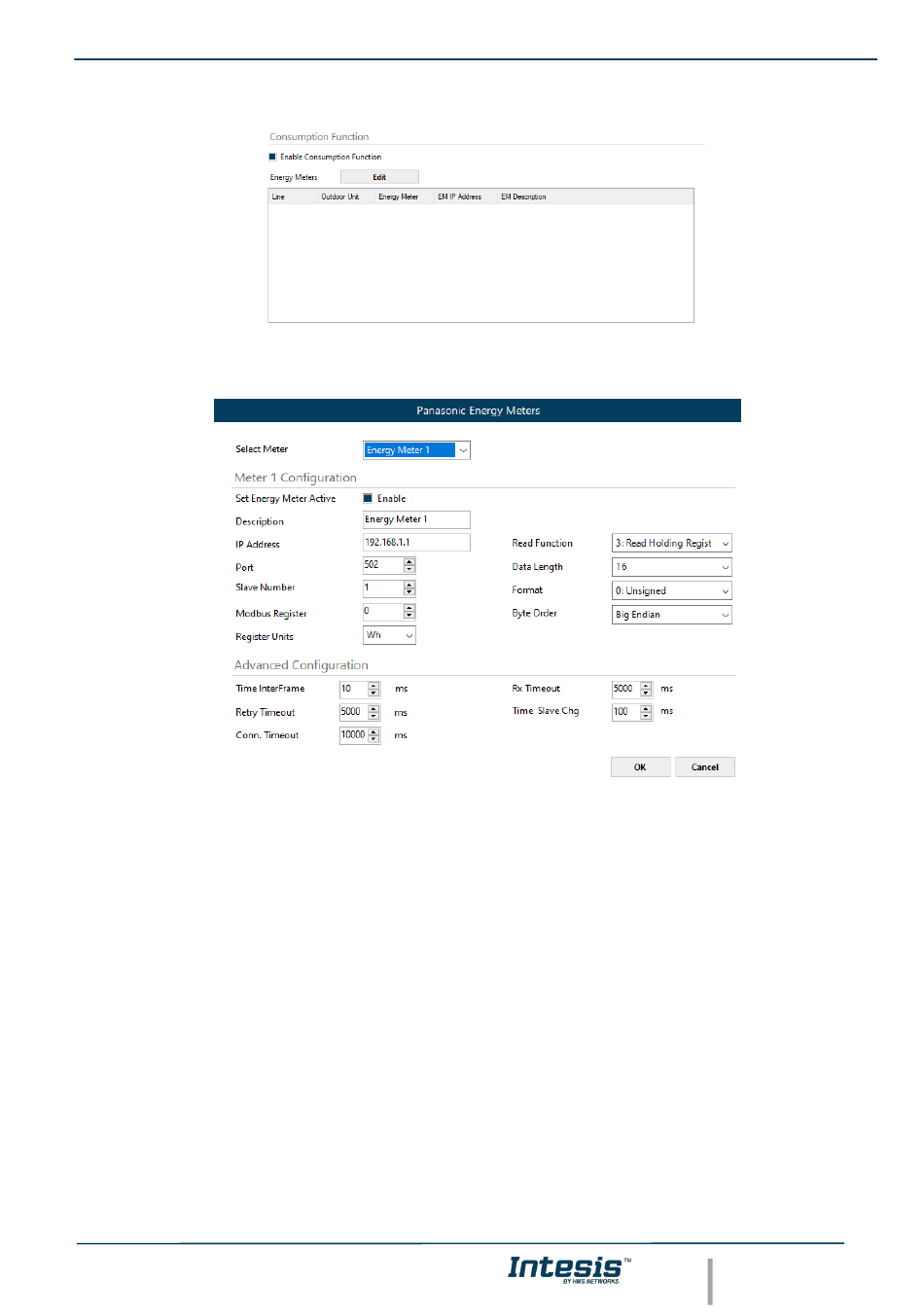

Figure 4.8 Consumption function settings
Figure 4.9 Energy meters configuration window
