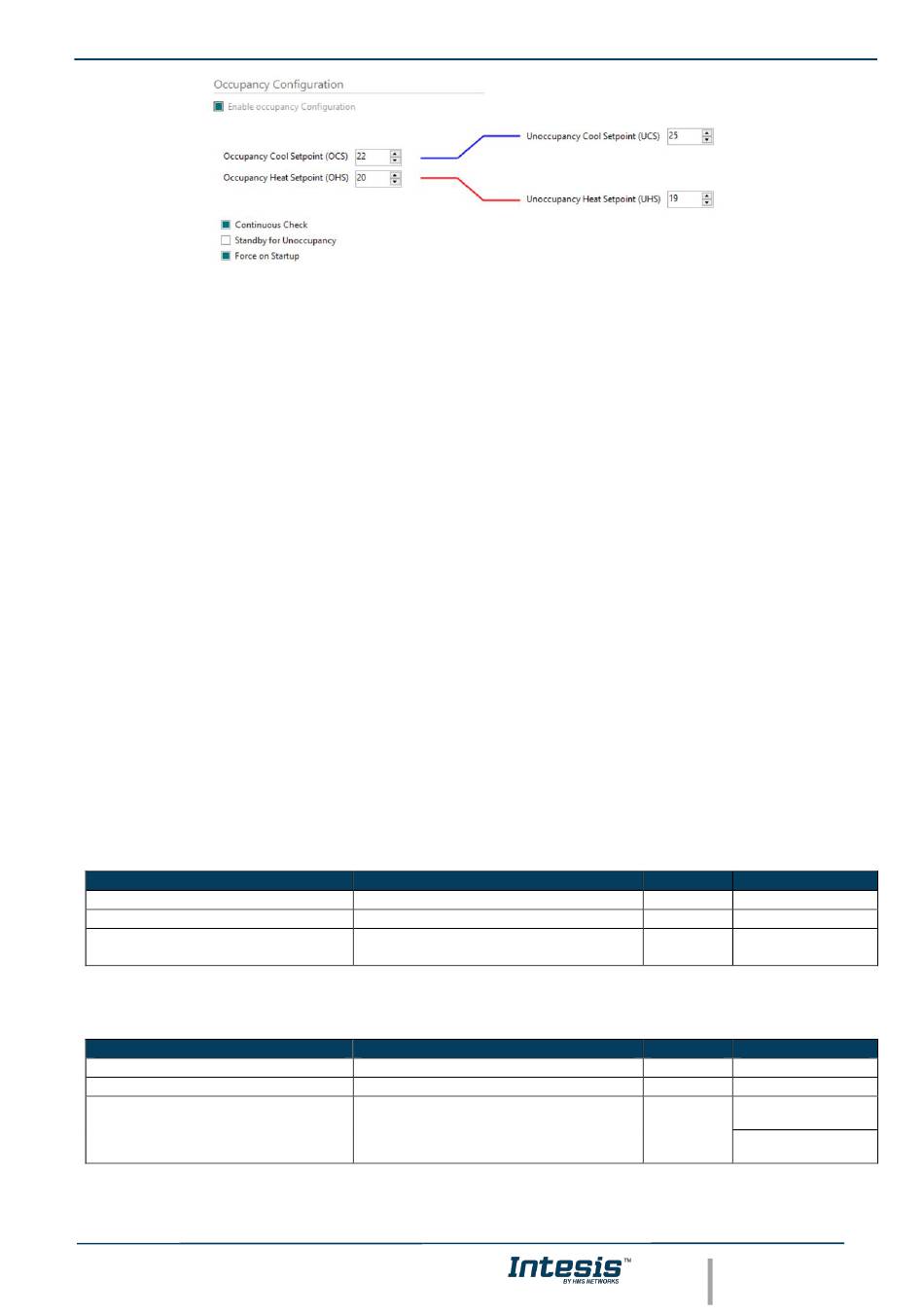

1. Occupancy/Unoccupancy Cool Setpoint (OCS/UCS): Default value for setpoint temperature to be set
when Occupancy/Unoccupancy is enabled and current mode is cool. UCS must always be greater or
equal to OCS. Difference between OCS and OHS must be greater or equal to 2ºC/4ºF. It can be changed
later through ModBus (Occ_Cool_setpoint and Unocc_Cool_Setpoint ModBus registers) and newer
value will persist.
2. Occupancy/Unoccupancy Heat Setpoint (OHS/UHS): Default value for setpoint temperature to be set
when Occupancy/Unoccupancy is enabled and current mode is heat. UHS must always be smaller or
equal to OHS. Difference between OCS and OHS must be greater or equal to 2ºC/4ºF. It can be changed
later through ModBus (Occ_Heat_setpoint and Unocc_Heat_Setpoint ModBus registers) and newer
value will persist.
3. Continous check: This checkbox is used to determine if the gateway will check the occupancy
conditions constantly (check) or not (unchecked) by default. That means that with the the checkbox
active, conditions are checked on each change of the temperature too, while if unchecked, this is only
checked when the occupancy status changes. This check option can be changed later through ModBus
(Occ_ContinousCheck ModBus registers) and newer value will persist.
4. Standby for Unoccupancy: This checkbox determines the action to be taken while the ambient
temperature is in between the deadband. If unchecked, indoor unit will turn off and if checked will reamin
on. It can be changed later through ModBus (Unocc_DeadbandAcion ModBus registers) and newer
value will persist.
5. Force on startup: If checked, values set in the configuration screen will be loaded after a reset. If
unchecked, last values selected (as it can be changed through ModBus registers) will be loaded after
reset.
Note that the default units are in ªC and when changing from Celsius to Fahrenehit and vice versa all values are
set to its default values.
When occupancy mode is active (there is presence in the room), according to current room temperature, mode,
setpoint and on/off will be set to:
Condition
Room temperature > OCS
Room temperature < OHS
OCS < Room temperature > OHS
When unoccupancy mode is active (there is no presence in the room), according to current room temperature,
mode, setpoint and on/off will be set to:
Condition
Room temperature > OCS
Room temperature < OHS
OCS < Room temperature > OHS
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
Setpoint
Current OCS value
Current OHS value
OCS/OHS depending on current mode
(If Fan or Dry mode is active, no setpoint is sent)
Setpoint
Current UCS value
Current UHS value
UCS/UHS depending on current mode
(If Fan or Dry mode is active, no setpoint is sent)
User Manual r1.1 EN
Mode On/Off
Cool On
Heat On
Current
On
mode
Mode On/Off
Cool On
Heat On
On
Current
(Deadband action =1)
mode Off
(Deadband action =0)
