4. Set-up process and troubleshooting

4.1. Pre-requisites

It is necessary to have the Modbus RTU or TCP master/client device (BMS side device) operative and properly
connected to the corresponding port of the gateway and the Panasonic VRF installation connected to their
corresponding ports as well.
Connectors, connection cables, PC for the Configuration Tool usage and other auxiliary material, if needed, are not
supplied by Intesis for this standard integration.
Items supplied by HMS Networks for this integration are:
•
Intesis gateway.
•
Link to download the configuration tool.
•
USB Console cable to communicate with Intesis.
•
Product documentation.
4.2. Intesis MAPS. Configuration & monitoring tool for Intesis Modbus series

4.2.1. Introduction

Intesis MAPS is a Windows
generation gateways.
The installation procedure and main functions are explained in the Intesis MAPS User Manual. This document can
be downloaded from the link indicated in the installation sheet supplied with the Intesis device or in the product
website at www.intesis.com.
In this section, only the specific case of Panasonic VRF to Modbus systems will be covered.
Please check the Intesis MAPS User Manual for specific information about the different parameters and how to
configure them.

4.2.2. Connection

To configure the Intesis connection parameters press on the Connection button in the menu bar.
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
®
compatible software developed specifically to monitor and configure Intesis new

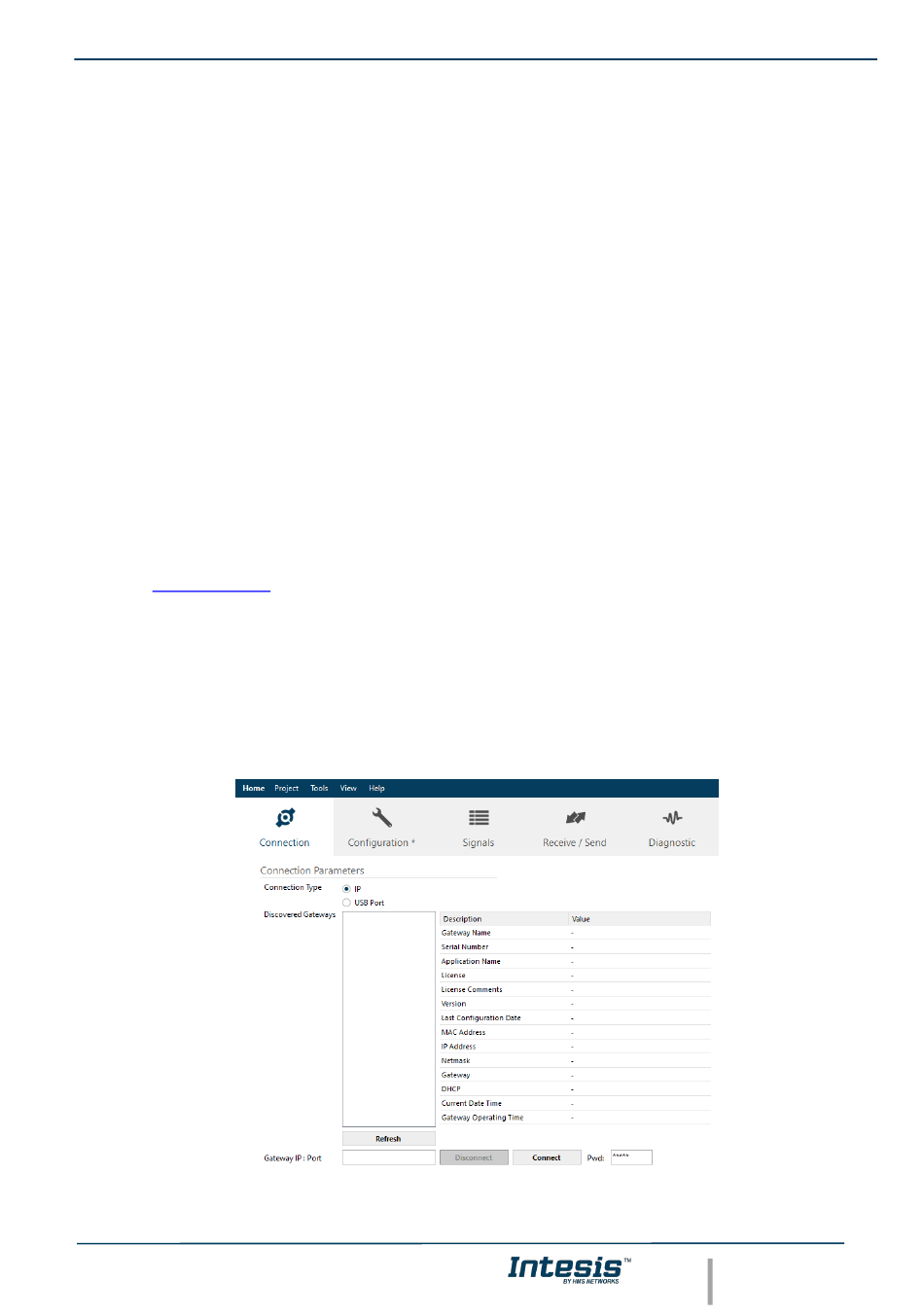

Figure 4.1 MAPS connection
