These checks will be done each time the indoor unit occupancy status is changed and each time the room
temperature changes if check continuously checkbox is checked.
The configuration set on the occupany tab is applied from the very first moment the occupancy signal is enabled
until the user changes the setpoint, mode or the On/Off signal, which disables occupancy functionality.
Consumption function
The consumption function will allow to monitor the energy consumption in kWh of the configured indoor untis.
Once the function is enabled, the following signals become active for each indoor unit:
In this section it is possible to configure and link up to three Modbus Energy Metters with the Panasonic system.
Modbus TCP and Modbus RTU meters may be used. Consider that using Modbus RTU meters needs a Modbus
RTU/TCP conversor in order to make them reacheable from the Intesis device.

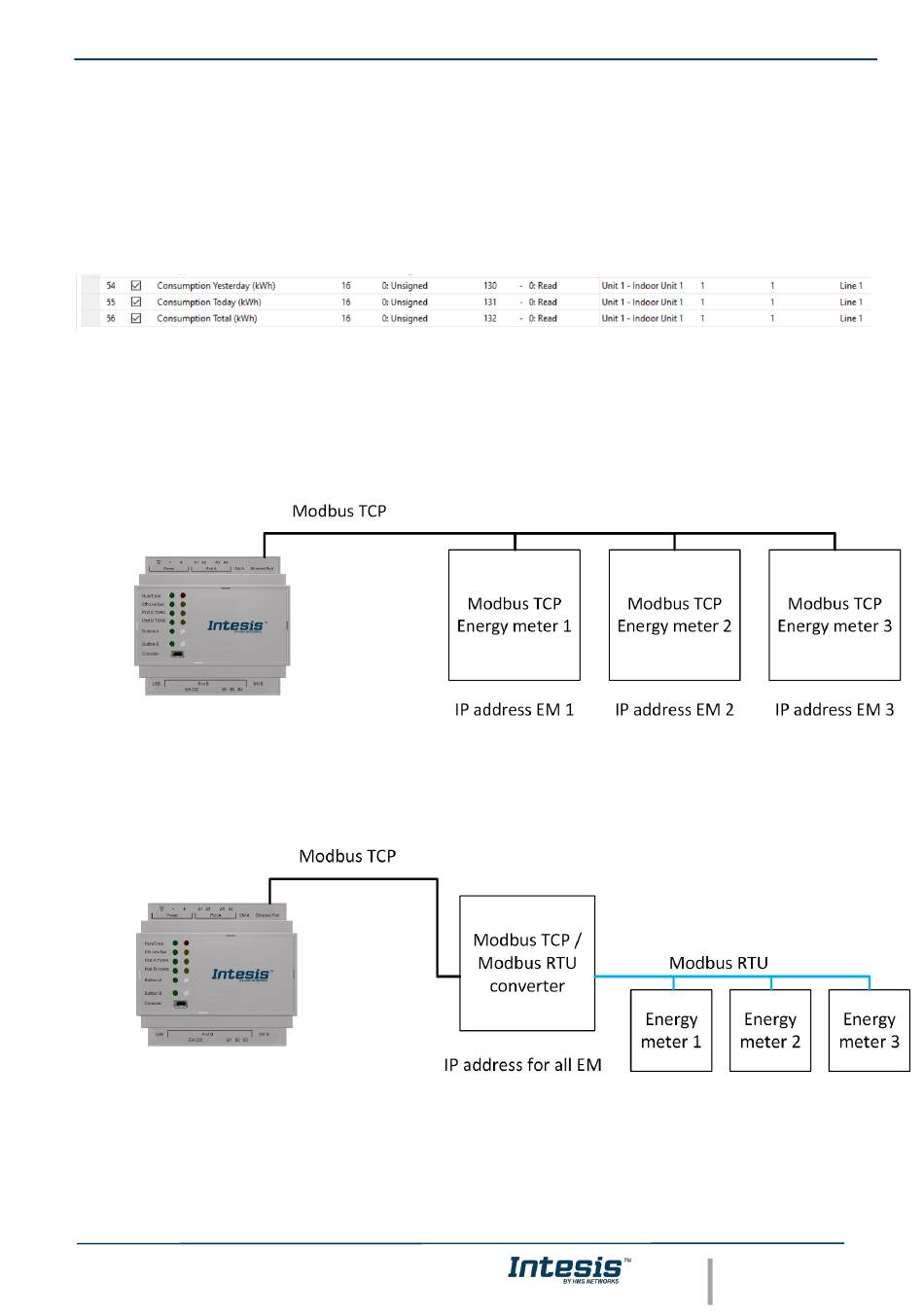

Scheme 2: Modbus RTU Energy meters with Modbus TCP/RTU converter
Before continuing with this section, it is recommended to configure Panasonic system in advanced and setup and
test the Modbus energy meters.
Once the above is completed, the recommended steps configuration for the energy meters in Maps are:
