4.2.5. Panasonic configuration

Set parameters for connection with Panasonic's installation.
Line configuration section
Each line of Panasonic needs to be addressed by using the parameter "Gateway Address in Panasonic line".
There are 2 addresses reserved for the gateway in the Panasonic bus: address 1 and address 2.
Note that only the version of 128 units allows the connection to 2 Panasonic lines simultaneously. The 16- and 64-
unit versions will only support the configuration of the "Panasoni Line 1".
In Units Configuration section you need to enter, for each unit:
•
Unit ID. If it's active (checkbox at Unit xx), ranging from 1 to 64 indoor units that will be integrated (maximum
number of units will depend on Intesis model)
•
OU address. Address 1...64 of Outdoor Unit in Panasonic P-Link bus.
•
IU address. Address 1...64 of Unit in Panasonic P-Link bus.
•
Unit type. Type will default to 'Not Defined'. When units have been detected after scan, it can be one of the
following: TBD, GHP, PAC and VRF
•
Description. Descriptive name to easy identification of the unit (for example, 'living room floor 1 unit', etc).
Additional to manual entry of each unit, autodiscover of present units in a P-Link installation is possible. To do so,
click button Scan. Following window will appear:
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice

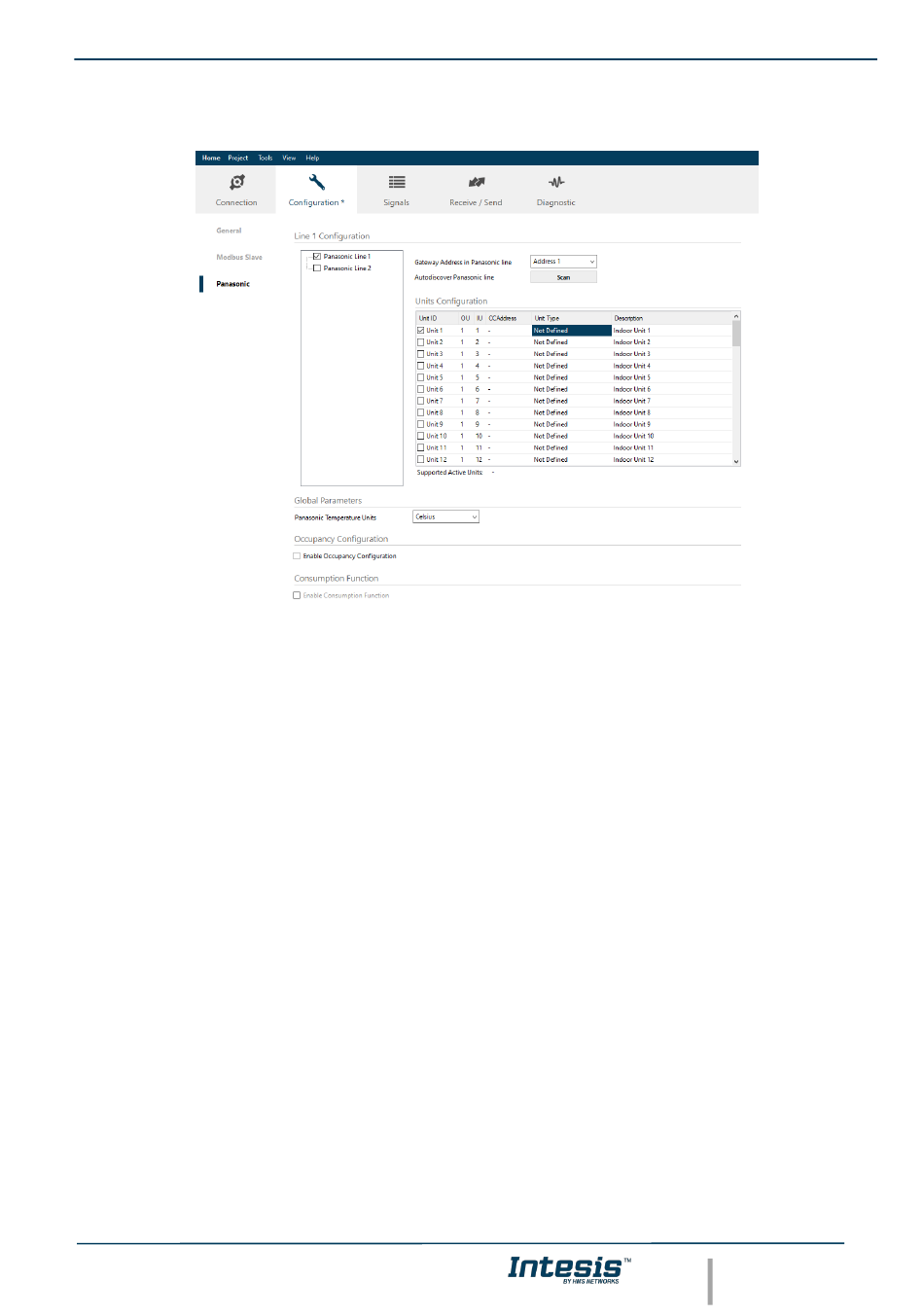

Figure 4.4 Intesis MAPS Panasonic configuration tab
