Home Automation (WMP) – Hitachi VRF

Intesis

Select with its checkbox units to add (or replace) in installation, according to selection Replace Units / Add Units.

After units to be integrated are selected, click button Apply, and changes will appear in previous Units

Configuration window.

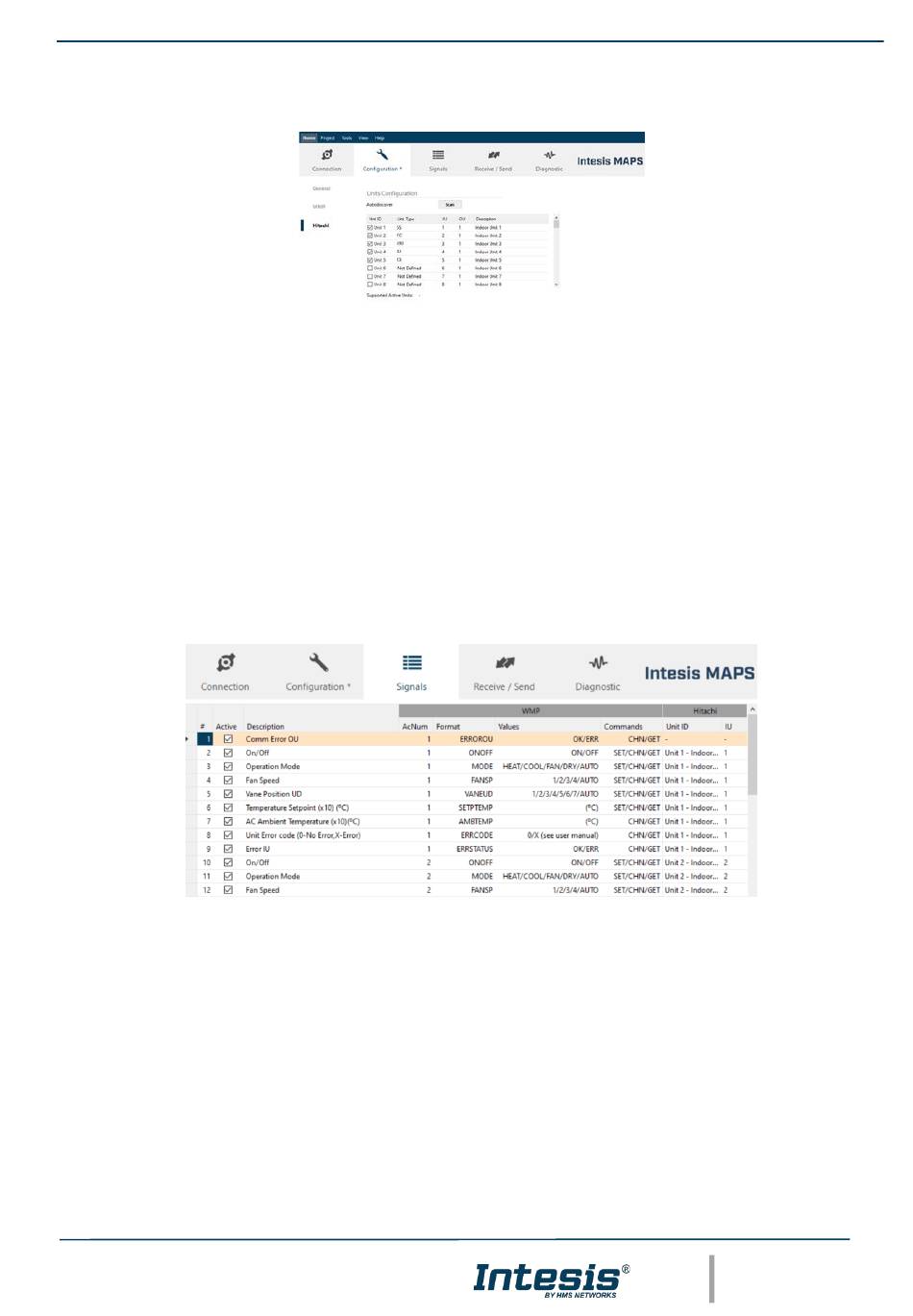

Figure 4.7 Intesis MAPS Hitachi configuration tab after importing scan results

Acnum

Acnum is the parameter or number associated to every ac unit. This parameter identifies the ac unit from the home

automation side.

In this gateway, this number corresponds with the unit ID available during the configuration process. This number

cannot be edited and is automatically generated during the manual or automatic (using SCAN) configuration

process. You can check the indoor units Unit ID number in its column.

For the outdoor units, acnum corresponds with the lowest Unit ID of its associated indoors.

4.2.6. Signals

All available WMP signals, its corresponding description and other main parmaters are listed in the signals tab. The

acnum of every unit is also displayed in a column in the signals view.

When the configuration is finished, follow the next steps.

1.- Save the project (Menu option Project->Save) on your hard disk (more information in Intesis MAPS User

Manual).

2.- Go to tab 'Receive / Send' of MAPS, and in Send section, press Send button. Intesis will reboot

automatically once the new configuration is loaded.

This information is subject to change without notice

Figure 4.8 Intesis MAPS Signals tab
