By pressing Scan button, connected Panasonic P-Link bus will be scanned for available units. Error window will
appear if there is a problem in the connection with P-Link bus (units not powered, bus not connected, ...).
A progress bar will appear during the scan, which will take up to a few minutes. After scan is complected, detected
units will be shown in available units as follows:

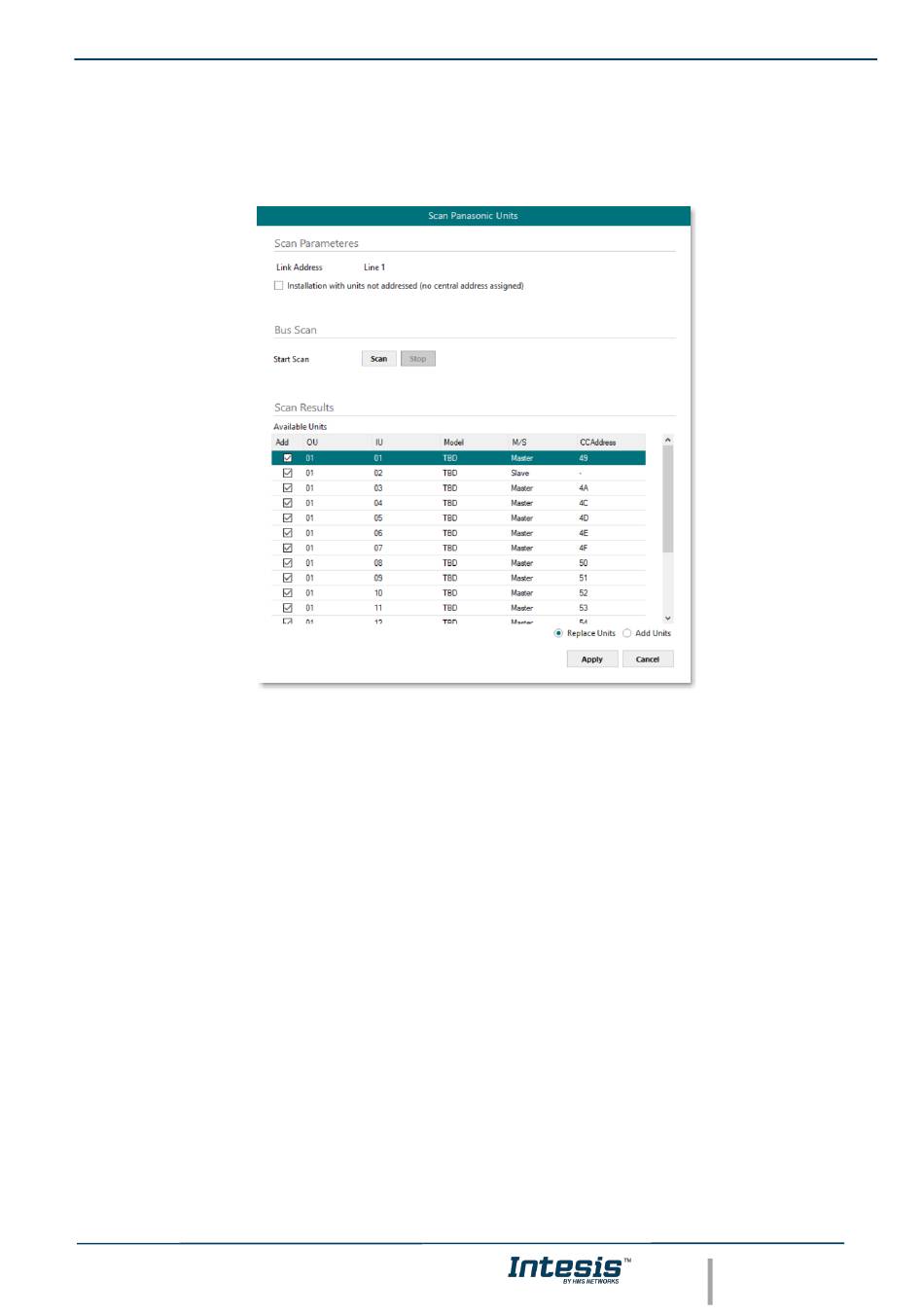

Figure 4.7 Intesis MAPS Scan Panasonic Units window with scan results
Select with its checkbox units to add (or replace) in installation, according to selection Replace Units / Add Units.
After units to be integrated are selected, click button Apply, and changes will appear in previous Units
Configuration window.
Global Parameters:
In this section it is possible to select the temperature units for monitoring of the temperature signals available in the
gateways, Celsius (ºC) or Fahrenheit (ºF).
Occupancy Function
Each indoor unit has its own occupancy signal. Remember that this signal needs to be feed by an external presence
sensor which indicates if there is presense or not (occupancy). This signal is processed directly in the Intesis
gateway.
To enable the use of this function, check the parameter "Enable occupancy Configuration" available in Panasonic
configuration tab.
This functionality modifies 3 parameters from the AC system: Setpoint, Mode and On/Off.
