To help integrators in the commissioning tasks and troubleshooting, the Configuration Tool offers some specific
tools and viewers.
To start using the diagnostic tools, connection with the Gateway is required.
The Diagnostic section is composed by two main parts: Tools and Viewers.
•
Tools
Use the tools section to check the current hardware status of the box, log communications into
compressed files to be sent to the support, change the Diagnostic panels' view or send commands
to the gateway.
•
Viewers
To check the status, viewer for the Internal and External protocols are available. It is also available
a generic Console viewer for general information about communications and the gateway status
and finally a Signals Viewer to simulate the BMS behavior or to check the current values in the
system.
More information about the Diagnostic section can be found in the Configuraion Tool manual.

4.2.9. Set-up procedure

1. Install Intesis MAPS on your laptop, use the setup program supplied for this and follow the instructions given by
the Installation wizard.
2. Install Intesis in the desired installation site. Installation can be on DIN rail or on a stable not vibrating surface
(DIN rail mounted inside a metallic industrial cabinet connected to ground is recommended).
3. If using Modbus RTU, connect the communication cable coming from the EIA485 port of the Modbus RTU
installation to the port marked as Port B of Intesis. Not available for INMBSPAN128O000. More details in
C .
ONNECTIONS
If using, Modbus TCP, connect the communication cable coming from the Ethernet port of the Modbus TCP
installation to the port marked as Ethernet Port of Intesis. More details in
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice

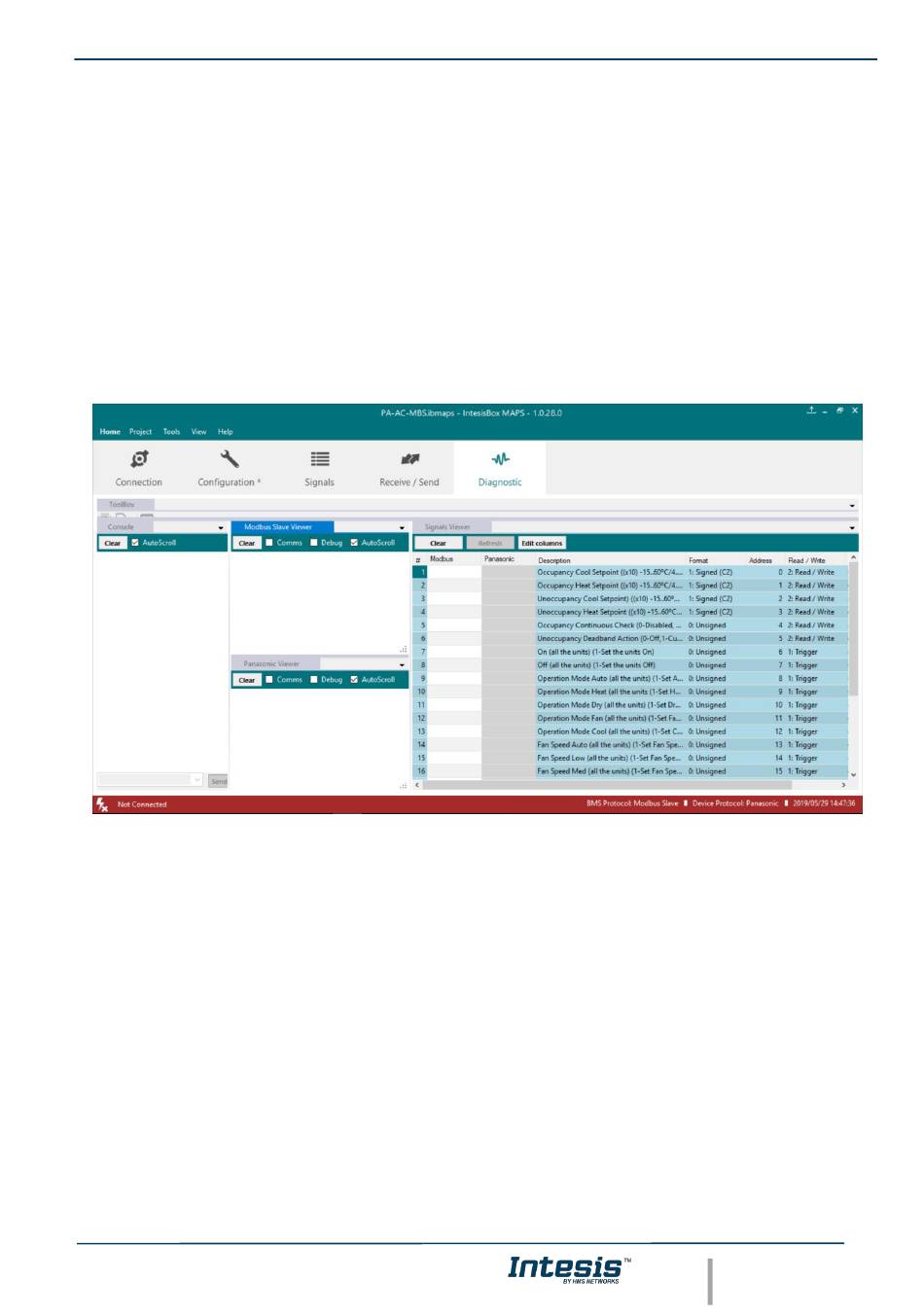

Figure 4.14 Diagnostic
