Tear-Off with Quick-Load (Straight Through)

EasyCoder PF4i User's Guide (IPL Version)

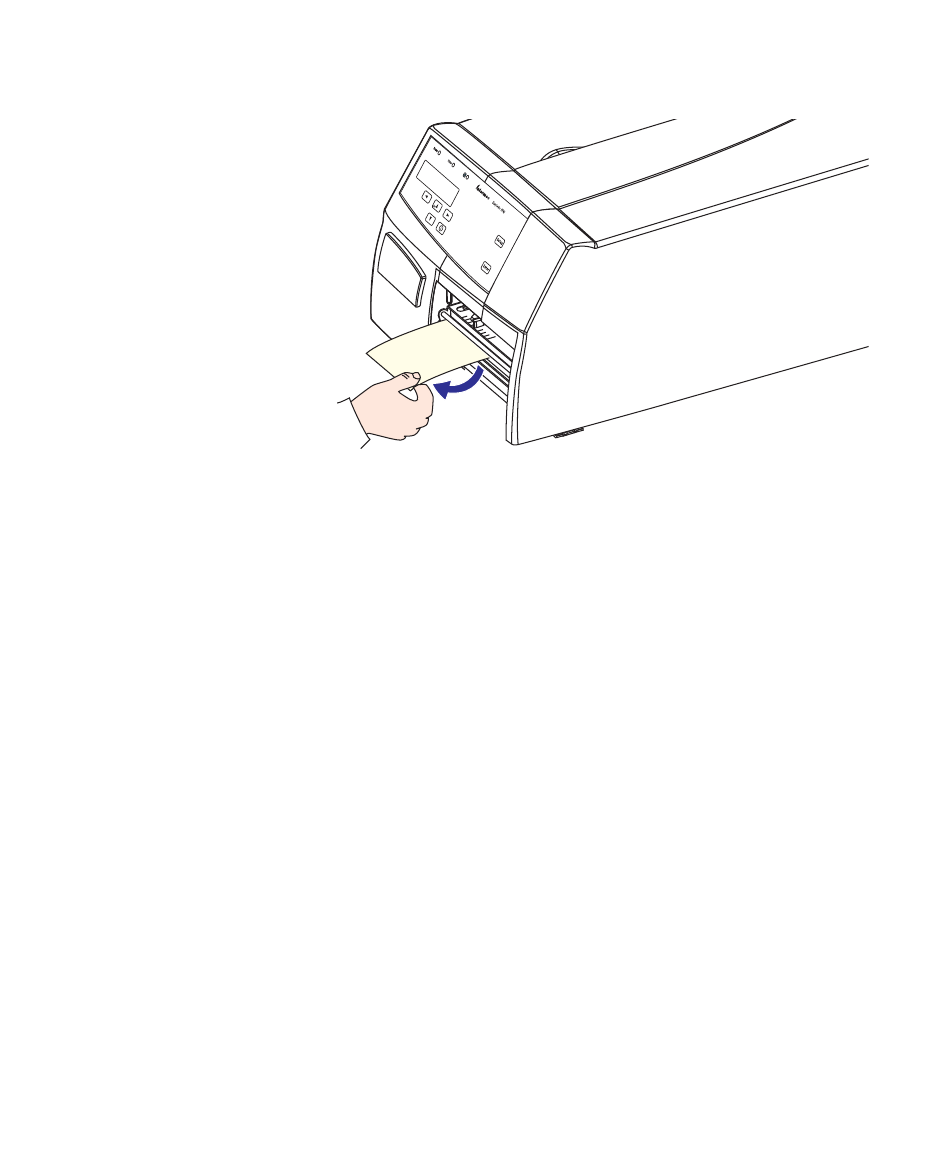

11 Tear off the media by grabbing the outer edge and pulling
downwards.
In addition to the media load procedure for tear-off (straight-
through) operation described earlier in this chapter, the
EasyCoder PF4i can optionally be fitted with a set of Quick-Load
guides that makes media load much easier and quicker, especially
if the printer has a short side door. See Chapter 10,
"Adjustments" on page 97
Quick-Load cannot be combined with peel-off (self-strip)
operation.
An optional label taken sensor can hold the printing of the next
copy in the batch until the present copy has been removed, see
"Label Taken Sensor" on page
Chapter 3 — Media Load
for installation instructions.
71.
23
