Chapter 2 — Installation

Media Supply Positions

10
There are four sets of slots and threaded holes in the printer's
center section for the media supply roll post or rotating hub
(optional). These slots allow the largest possible roll size to fit,
given the limitations of any liner takeup unit and/or the full
enclosure provided by the long side door or Megatop. The
positions are indicated by numbers engraved in the center
section. The printer can also use an external media supply located
behind the printer, unless it has an optional 8-inch Megatop
•Position 1: The media compartment is fully enclosed by a long
side door, regardless of the existence of any integral liner takeup
unit. Maximum roll size is 152 mm (6 inches).
•Position 2: The short side door only encloses the print
mechanism and does not have an integral liner takeup unit.
Maximum roll size is 203 mm (8.00 inches).
•Position 3L: The short side door and an integral liner takeup
unit. This position is also used with the optional 8-inch
Megatop. For more information, see Chapter 7,
page 67. Maximum roll size is 213 mm (8.38 inches).
•Position 4 is not used.

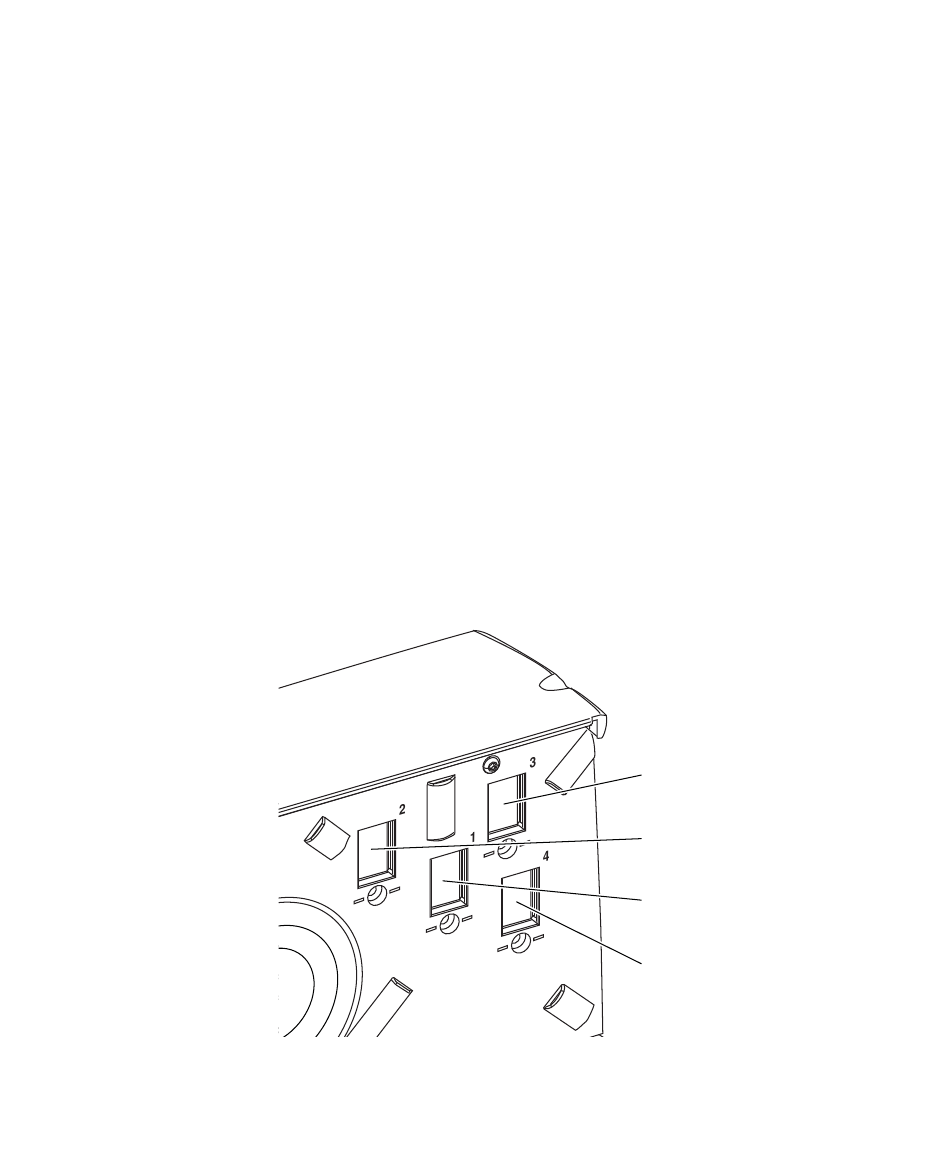

Media Supply Positions
Position 3
Position 2
Position 1
Position 4
(not used)
EasyCoder PF4i User's Guide (IPL Version)
"Options" on
