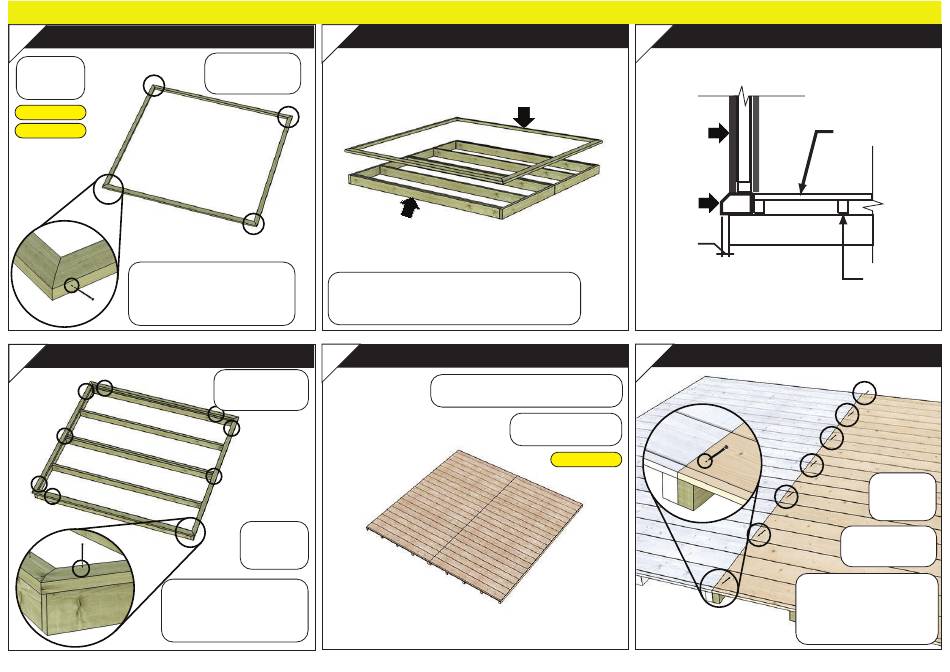

Project Timber Evolution My Den Building Instructions page 7

10 Floor Stages
4
70mm
Screws
Back
ID: 15906
ID: 15606
Side
Lay and fix the Plinth
lengths together at
the corner
13
Floor Stages
Back
Side
Fix and secure the
plinth and base
module together
Floor Sections Stages
11
Pilot drill holes
before fixing
Front
Base Module
Position the plinth into the top of
assembled base module
14
Pilot drill holes
before fixing
Back
Front
70mm
Screws
Floor Stages
Plinth
Floor Stages
Fix the Floors together
11mm Floor
assembly shown
ID: PT18173
Front
Side
12
Floor Sections Diagram
Wall
Panel
Plinth
Base Module
Gap
15 Floor Stages
Back
Fix the Floors with
screws in angled
Side
position
Floor Boards
Floor Joist
50mm
Screws
Pilot drill holes
before fixing
