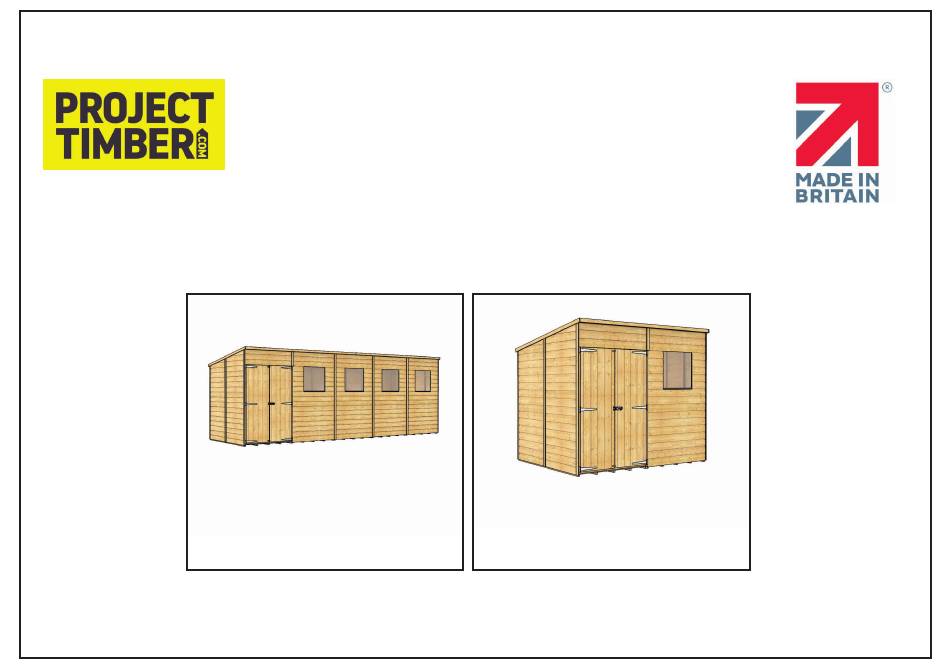

Hobbyist Windowed Pent Shed
Building Instructions
Please read the instruction carefully
and retain for future reference
20x6, 18x6, 16x6, 14x6,
Covers Multiple
Sizes:
12x6, 10x6 and 8x6
20x6 Hobbyist Windowed

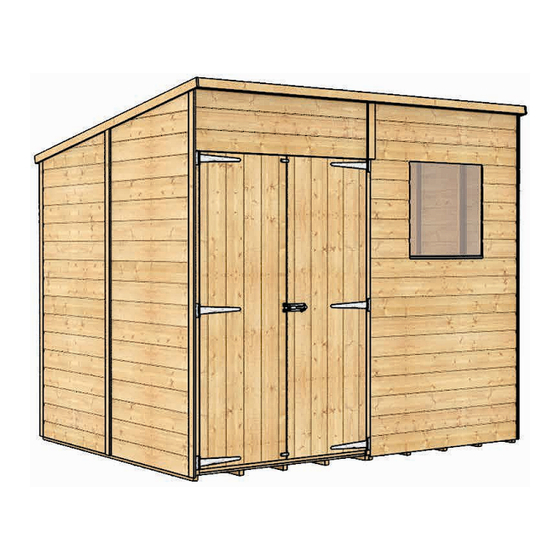

8x6 Hobbyist Windowed
Pent Shed Offset Door
Pent Shed Offset Door
Building shown
Building shown
For Queries and Help please contact 01777 802300
Please note that all images are for illustration purpose only.
V1.4 08.08.22 INS0067
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Project Timber 20x6 Hobbyist Windowed Pent Shed
Summary of Contents for Project Timber 20x6 Hobbyist Windowed Pent Shed
- Page 1 Hobbyist Windowed Pent Shed Building Instructions Please read the instruction carefully and retain for future reference 20x6, 18x6, 16x6, 14x6, Covers Multiple Sizes: 12x6, 10x6 and 8x6 20x6 Hobbyist Windowed 8x6 Hobbyist Windowed Pent Shed Offset Door Pent Shed Offset Door Building shown Building shown For Queries and Help please contact 01777 802300...
- Page 2 - Construct your building within one month of delivery to stop parts warping / bowing. - Treat your building annually with a quality timber treatment to comply with the buildings warranty. ADDRESS: Project Timber Ltd, Parry Business Park, Grassthorpe Road, Sutton-on-Trent, Newark, Notts, NG23 6QX SPARE PARTS...
-
Page 3: Trouble Shotting Guide
For Queries and Help please call Product Support: PRODUCT MAINTENANCE CHECK LIST: CLADDING STYLE PANEL ORIENTATION 01777 802300 Wooden Sheds / Playhouses / Summerhouses Shiplap Cladding: It is essential to ensure that the panels of your This style of building are in the correct orientation. Assembly cladding allows the timber to TROUBLE SHOTTING GUIDE in the wrong orientation may lead to water... - Page 4 6ft Gable Hobbyist Windowed Pent Shed Offset Door Buildings 20x6 Hobbyist Windowed 18x6 Hobbyist Windowed 16x6 Hobbyist Windowed 14x6 Hobbyist Windowed Pent Shed Offset Door Pent Shed Offset Door Pent Shed Offset Door Pent Shed Offset Door shown shown shown shown 12x6 Hobbyist Windowed 10x6 Hobbyist Windowed...
- Page 5 6ft Gable Hobbyist Windowed Pent Shed Offset Door Floor Assembly 20x6 Floor Assembly 18x6 Floor Assembly 16x6 Floor Assembly 14x6 Floor Assembly 1812mm x 1172mm (3) 1812mm x 1172mm (2) 1812mm x 1172mm (5) 1812mm x 1172mm (4) 1812mm x 879mm (2) 1812mm x 879mm (2) 12x6 Floor Assembly 10x6 Floor Assembly...
- Page 6 6ft Gable Hobbyist Windowed Pent Shed Offset Door Roof Position 20x6 Roof 18x6 Roof 16x6 Roof 14x6 Roof Position Position Position Position 12x6 Roof 10x6 Roof 8x6 Roof Position Position Position...
- Page 7 6ft Gable Hobbyist Windowed Pent Shed Offset Door Tongue and Groove Roof Panel Position 20x6 TG Roof 18x6 TG Roof 16x6 TG Roof 14x6 TG Roof Position Position Position Position 10x6 TG Roof 8x6 TG Roof 12x6 TG Roof Position Position Position...
- Page 8 6ft Gable Hobbyist Windowed Pent Shed Offset Door - Back Panels Position Please Note: For all sizes the back and front panel widths must match 18x6 Back Panels Position 16x6 Back Panels Position 14x6 Back Panels Position 20x6 Back Panels Position 3ft Plain 3ft Plain 3ft Plain...
- Page 9 6ft Gable Hobbyist Windowed Pent Shed Offset Door - Front Panels Position Please Note: For all sizes the back and front panel widths must match 18x6 Front Panels Position 16x6 Front Panels Position 14x6 Front Panels Position 20x6 Front Panels Position Double Double 4ft Window...
- Page 10 OSB Floor Stages OSB Floor Stages Tongue and Groove Floor option Back Pilot drill holes before fixing 20x6 Floor assembly Back Lay and align Back the floors Front Front 50mm Screws 20x6 Floor Fix the floors panels shown together, with Side screws in angled Align the tongue and...
- Page 11 Wall Panel Position Door on the LEFT Position Door on the RIGHT Position Back Back Back 4ft Plain Panel 4ft Plain Panel Plain Panel Floor Side Assembly 4ft Door Panel 4ft Door Panel Front Front Fix the left gable panels Fix the front-right Fix the back panels.
- Page 12 Front Front Position and Door panel fix the front position. window panel Can be on the 50mm Left or Right 50mm Screws Screws Pilot drill holes before fixing Pilot drill holes before fixing Front Purlin fixing Purlin fixing The window panel widths must match the back panels Fit and fix Back...
- Page 13 Purlin fixing Purlin fixing Purlin fixing Back 30mm Front Screws Front Pilot drill holes 30mm before fixing Screws Back Pilot drill holes before fixing Purlin Pilot drill holes before fixing Purlin Front Position and fix in Position and fix in 100mm Secure in place the purlins Panel...
- Page 14 For OSB Roof Sheet ONLY OSB Roof fixing OSB Roof fixing OSB Roof fixing Position the OSB roof sheet to the top of purlin and wall panels Front 30mm Nails 30mm Nails Fix the OSB roof sheet Back to the purlin and Fix the eaves purlin wall panels to the roof sheet...
- Page 15 For Tongue and Groove Roof Panel ONLY Soffit fixing Soffit fixing Tongue and Groove Roof Panel fixing Back Pilot drill holes Front before fixing Front Back *11mm x 45mm x 1172mm *11mm x 45mm x 879mm Position the soffit to the front 30mm Position the TG roof panel to the Secure in place the...
- Page 16 For Tongue and Groove Roof Panel ONLY Tongue and Groove Roof Panel fixing Tongue and Groove Roof Panel fixing Front Back 70mm Screws 70mm Pilot drill holes Screws before fixing Repeat previous Repeat previous stage until roof stage and secure Pilot drill holes panels is complete before fixing...
- Page 17 Door Fixing Tower Bolt Lock fixing Turn Button Lock fixing 30mm Screws 30mm Screws 30mm Screws Bottom Corner Cloaking Strip fixing Corner Cloaking Strip fixing Turn Buttom Lock fixing 30mm Screws 30mm 30mm Nails Nails...
- Page 18 Cloaking Strip fixing Cloaking Strip fixing Roof Packing Frame fixing (OSB roof) x 1952mm Roof Cut to size Packing Frame 50mm Screws Position and fix the roof 30mm packing frame at each Pilot drill holes Nails Nails side end of the building before fixing Roof Packing Frame fixing (OSB roof) Roof Packing Frame fixing (TG roof)
- Page 19 Roof Felt fittings Roof Felt fittings Roof Felt fittings Tack Top corners to hold in place Roof length T10 Felt + 140mm Tack every 100mm Tacks Measure and cut 2 lenghts of Felt Roof Felt fittings for TG Roof Side Fascia fixing Roof Felt fittings 60mm x 11mm x 2000mm On the front the...
- Page 20 Front Fascia fixing Front Fascia Length Diagram Front Fascia Length Diagram 1240mm 1760mm 1760mm 1240mm 1822mm 1822mm Front Fascia (20ft Wide Building) Front Fascia (12ft Wide Building) 1530mm 1170mm 1170mm 1530mm 1530mm 1530mm Front Fascia (18ft Wide Building) Front Fascia (10ft Wide Building) 1240mm 1170mm 1240mm...
