Project Timber Hobbyist Building Instructions

Windowed pent shed
Hide thumbs

Advertisement

Quick Links

Download this manual

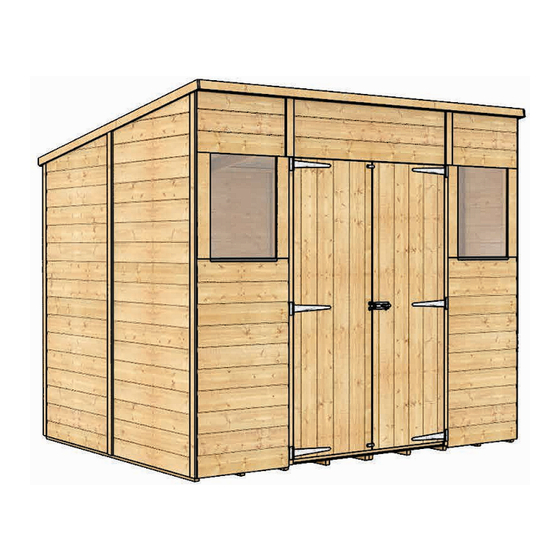

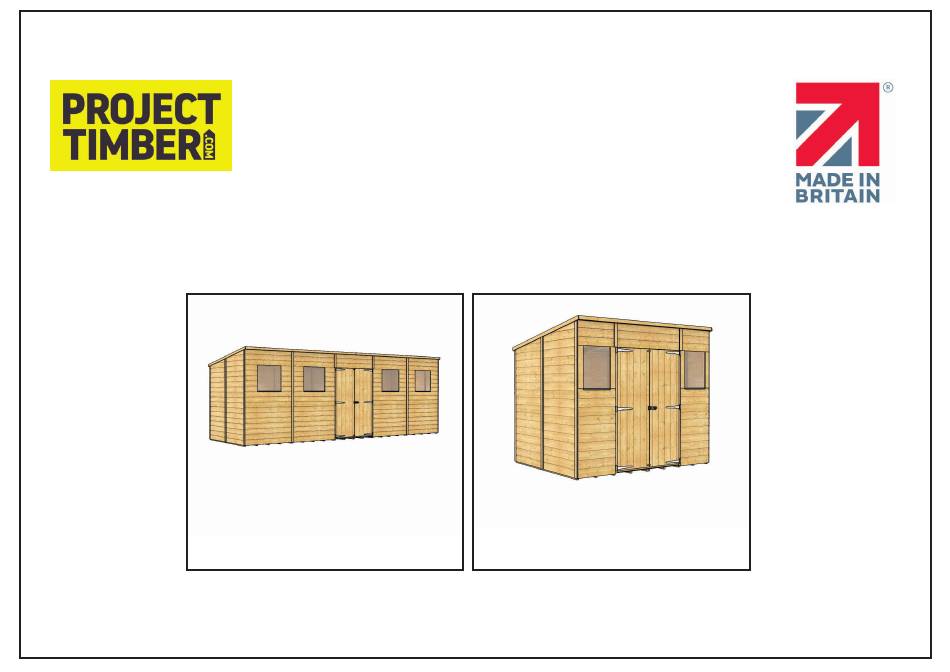

Hobbyist Windowed Pent Shed
Building Instructions
Please read the instruction carefully
and retain for future reference
20x6, 18x6, 16x6, 14x6,
Covers Multiple
Sizes:
12x6, 10x6 and 8x6
20x6 Hobbyist Windowed
8x6 Hobbyist Windowed
Pent Shed Central Door
Pent Shed Central Door
Building shown
Building shown
For Queries and Help please contact 01777 802300
Please note that all images are for illustration purpose only.
V1.4 05.08.22 INS0063

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hobbyist and is the answer not in the manual?

Questions and answers

Related Manuals for Project Timber Hobbyist

Summary of Contents for Project Timber Hobbyist

  • Page 1 Hobbyist Windowed Pent Shed Building Instructions Please read the instruction carefully and retain for future reference 20x6, 18x6, 16x6, 14x6, Covers Multiple Sizes: 12x6, 10x6 and 8x6 20x6 Hobbyist Windowed 8x6 Hobbyist Windowed Pent Shed Central Door Pent Shed Central Door...

  • Page 2: Important Safety Notices

    - Construct your building within one month of delivery to stop parts warping / bowing. - Treat your building annually with a quality timber treatment to comply with the buildings warranty. ADDRESS: Project Timber Ltd, Parry Business Park, Grassthorpe Road, Sutton-on-Trent, Newark, Notts, NG23 6QX SPARE PARTS...

  • Page 3: Trouble Shotting Guide

    For Queries and Help please call Product Support: PRODUCT MAINTENANCE CHECK LIST: CLADDING STYLE PANEL ORIENTATION 01777 802300 Wooden Sheds / Playhouses / Summerhouses Shiplap Cladding: It is essential to ensure that the panels of your This style of building are in the correct orientation. Assembly cladding allows the timber to TROUBLE SHOTTING GUIDE in the wrong orientation may lead to water...
  • Page 4 6ft Gable Hobbyist Windowed Pent Shed Central Door Buildings 20x6 Hobbyist Windowed 18x6 Hobbyist Windowed 16x6 Hobbyist Windowed 14x6 Hobbyist Windowed Pent Shed Central Door Pent Shed Central Door Pent Shed Central Door Pent Shed Central Door shown shown shown...
  • Page 5 6ft Gable Hobbyist Windowed Pent Shed Central Door Floor Assembly 20x6 Floor Assembly 18x6 Floor Assembly 16x6 Floor Assembly 14x6 Floor Assembly 1812mm x 1172mm (3) 1812mm x 1172mm (2) 1812mm x 1172mm (5) 1812mm x 1172mm (4) 1812mm x 879mm (2)
  • Page 6 6ft Gable Hobbyist Windowed Pent Shed Central Door - OSB Roof Position 20x6 Roof 18x6 Roof 16x6 Roof 14x6 Roof Position Position Position Position 12x6 Roof 10x6 Roof 8x6 Roof Position Position Position...
  • Page 7 6ft Gable Hobbyist Windowed Pent Shed Central Door Tongue and Groove Roof Panel Position 20x6 TG Roof 18x6 TG Roof 16x6 TG Roof 14x6 TG Roof Position Position Position Position 10x6 TG Roof 8x6 TG Roof 12x6 TG Roof Position...
  • Page 8 6ft Gable Hobbyist Windowed Pent Shed Central Door - Back Panels Position 18x6 Back Panels Position 16x6 Back Panels Position 14x6 Back Panels Position 20x6 Back Panels Position 3ft Plain 4ft Plain 3ft Plain 4ft Plain 3ft Plain 4ft Plain...
  • Page 9 6ft Gable Hobbyist Windowed Pent Shed Central Door - Front Panels Position 18x6 Front Panels Position 16x6 Front Panels Position 14x6 Front Panels Position 20x6 Front Panels Position Double Double Double Double 3ft Window Door 3ft Window 3ft Window 3ft Window...
  • Page 10 OSB Floor Stages OSB Floor Stages Tongue and Groove Floor option Back Pilot drill holes before fixing 20x6 Floor assembly Back Lay and align Back the floors Front Front 50mm Screws 20x6 Floor Fix the floors panels shown together, with Side screws in angled Align the tongue and...
  • Page 11 Wall Panel Position Fix the front-right Fix the back panels. Secure gable panel 50mm the panels to the floor panels Back Screws Plain Panel Pilot drill holes before fixing Floor Side Assembly Side Front Pilot drill holes 50mm Screws before fixing Front Fix the left gable panels to the back panel...
  • Page 12 Fix the door panel Front Front 50mm Screws 50mm Screws Front Pilot drill holes before fixing 50mm Pilot drill holes Pilot drill holes Screws before fixing before fixing Purlin fixing Purlin fixing Purlin fixing Fit and fix 30mm Front Back the purlins.
  • Page 13 Purlin fixing Purlin fixing Purlin Position Back Front View from Rear 879mm or 1172mm 30mm Screws Back Pilot drill holes before fixing The distance 879mm or 1172mm is the Pilot drill holes before fixing width of a Roof Sheet. Purlin Position and fix in Measure from the 100mm...
  • Page 14 For OSB Roof Sheet ONLY OSB Roof fixing Repeat previous stages until the OSB roof sheet are complete. 30mm Nails Front For Tongue and Groove Roof Panel ONLY Soffit fixing Soffit fixing Tongue and Groove Roof Panel fixing Back Pilot drill holes Front before fixing Front...
  • Page 15 For Tongue and Groove Roof Panel ONLY Tongue and Groove Roof Panel fixing Tongue and Groove Roof Panel fixing Tongue and Groove Roof Panel fixing Roof Overhang Dimension 70mm Roof panel position Screws Front Front Side Back Pilot drill holes before fixing 41mm Fix the roof panel...
  • Page 16 Window Sill fixing Window Glaze fixing Door Fixing Panel Pins 30mm Screws Use Cardboard Place the Glazing into Window to protect the Panel and fit the Beading on both Fix the hinges to the Glazing when sides. Fit the rest of the Glazing Position the window sill fitting the and Beading to the Window...
  • Page 17 Turn Buttom Lock fixing Corner Cloaking Strip fixing Corner Cloaking Strip fixing 30mm Screws 30mm 30mm Nails Nails Cloaking Strip fixing Cloaking Strip fixing Roof Packing Frame fixing (OSB roof) x 1952mm Roof Cut to size Packing Frame 50mm Screws Position and fix the roof 30mm packing frame at each...
  • Page 18 Roof Packing Frame fixing (OSB roof) Roof Packing Frame fixing (TG roof) Roof Packing Frame fixing (TG roof) x 1952mm Roof Roof Section Packing Frame Roof Section Roof Roof Packing Packing Frame 50mm Frame Screws Side Side Front Position and fix the roof Front packing frame at each Pilot drill holes...
  • Page 19 Roof Felt fittings Roof Felt fittings for TG Roof Side Fascia fixing Side Fascia Board On the front the 60mm x 11mm x 2000mm felt tacks tack into the roof purlins T10 Felt Tacks T10 Felt Tacks Nails The felt overlaps over the top of the previous piece Front Fascia fixing...
