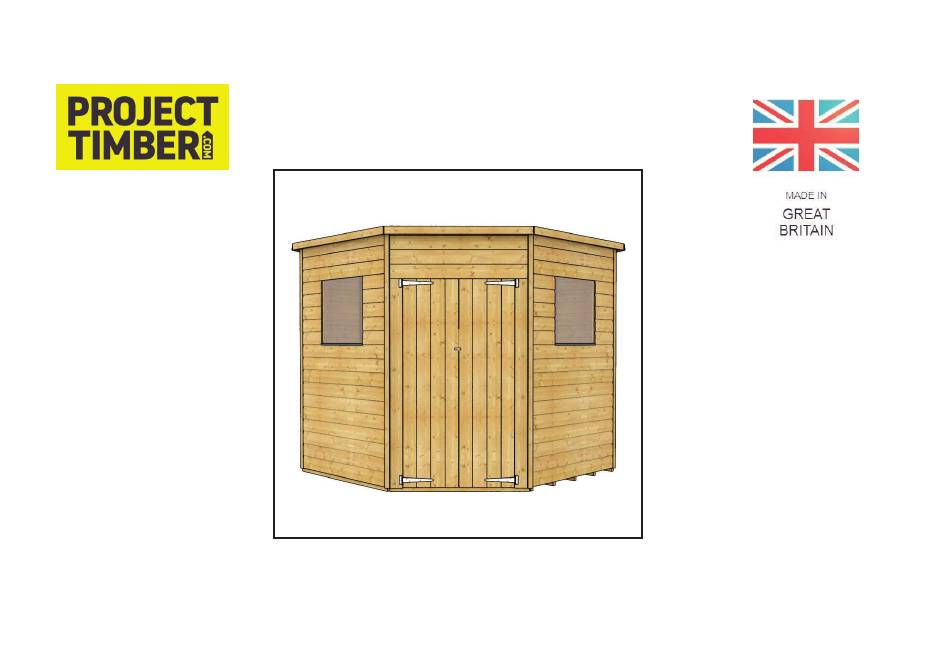

- Page 1 Corner Shed Building Instructions Covers: 7x7 Please read carefully and retain for future reference For Queries and Help please contact 01777 802300 Please note that all images are for illustration purpose only. V3.0 23.10.18 INS0022...
- Page 2 3. Fix the 2 Side Gable Panels *All Garden Buildings must be *Important* PILOT DRILL HOLES together and screw to the built on level, flat base to be BEFORE FIXING floor assembly erected correctly. 2. Fix Floor together 1. Fix the Corner Post Screws to Side Gable Panel Screws...
- Page 3 5. Fix Window Panels to the side gable panels and floor assembly 6. Fix the Door Panel to the front of window panels and floor panels Screw Here 5. Window Panel fixing 5. Window Panel fixing 6. Door Panel fixing Door Panel fixing Screws Screws...
- Page 4 7. Fix the Centre Purlin Sits flush and Fixing Block to the at top back corner, and fix Fixing to the Door Panel Block Screws 8. Fit and fix Roof Support to the Centre Purlin and Sits flush Side Panels at top 9.
- Page 5 10. Fix the Roof Sheets to the Centre Purlin and Panels Nails 10. Fix and place the Roof Side Position Fix the 2nd Roof Sheet Roof Sheet Nails Screws Side Side Nails...
- Page 6 11. Lay Doors and fix 15. Fix the Window Hinges Glazing and fit the Beading on both 12. Hang Doors and sides ONLY secure Door Hinges and Turn Button Window Beading fixing 13. Fix Turn Button to *Beading on both the Top and Bottom Sides ONLY* 14.
- Page 7 16. Measure and cut 3 Tack Top corners lengths of Felt to be Roof to hold in place length + 140mm Tack every 100mm and fold over edges 17. Fit 1st Felt Strip 18. Fit 2nd Felt Strip 19. Fit the 3rd Felt Strip The Felt must lay on top of each other T10 Felt...
- Page 8 20. Fix the Cloaking Strips Cloaking Strips fixing details 21. Fix the Fascias to the front Nails Nails...
