Project Timber Evolution My Den 12x8 Building Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual

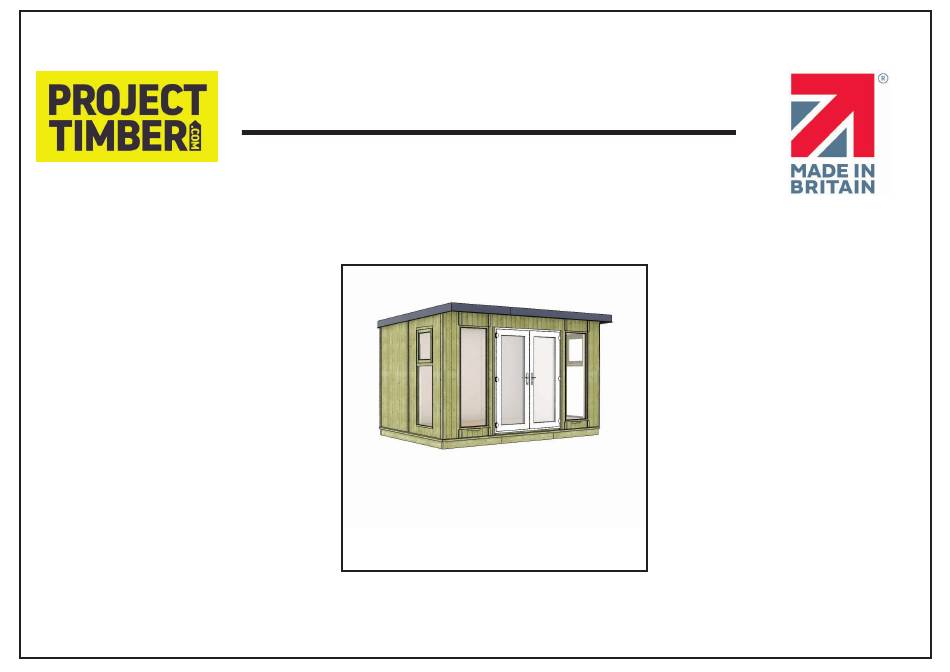

Evolution My Den
Building Instructions
Please read the instruction carefully
and retain for future reference
12x8
Cover Size:
12x8 My Den
Double Doors - Metal Roof
Building shown
For Queries and Help please contact 01777 802300
Please note that all images are for illustration purpose only.
V1.1 17.09.21 INS0149

Advertisement

loading
Need help?

Need help?

Do you have a question about the Evolution My Den 12x8 and is the answer not in the manual?

Questions and answers

Related Manuals for Project Timber Evolution My Den 12x8

Summary of Contents for Project Timber Evolution My Den 12x8

  • Page 1 Evolution My Den Building Instructions Please read the instruction carefully and retain for future reference 12x8 Cover Size: 12x8 My Den Double Doors - Metal Roof Building shown For Queries and Help please contact 01777 802300 Please note that all images are for illustration purpose only. V1.1 17.09.21 INS0149...
  • Page 2 12x8 Evolution My Den Double Doors Metal Roof Metal Roof Floor Assembly shown position 728mm 1000mm 1784mm x 1217mm (4) Back Panels Front Panels 14x8 Floor Plan position position 1220mm 1220mm 1220mm 317.5mm 317.5mm 1220mm 1220mm Double Doors 1220mm 610mm 610mm Panel Double...
  • Page 3 Building Parts: 12x8 Evolution My Den Building Parts Part ID Double Doors - Metal Roof PT25544 PT25545 Back Water Roof Section PT25537 Deflector Flashing 1000mm Width PT25533 Roof Section Roof Section 728mm Width PT25535 1000mm Width Gable Frame PT20324 Barge Board Standoff Flashing PT20328...
  • Page 4 Base Module Woodkits ID: 20931 Fixing Kit Parts List required: 1. Base Module A - 1220mm x 2528mm (3) ID: PT25385 ID: PT25398 2. Gable Bearers - 38mm x 2452mm (2) Gable Bearers Base Module (For each end of the assebled base) Base Module fixing Base Module fixing Base Module fixing...
  • Page 5 Base Module Stages Base Module fixing Base Module fixing Base Module fixing 70mm Side Back Screws Floor Boards Plinth Floor Joist Pilot drill holes before fixing Side of Side 70mm Base Module Front Screws Front ID: PT25398 Gable Bearers are fitted on each side of Position the gable bearers each side to fully assembled base.
  • Page 6 Floor Section Stages Floor Stages Floor Stages Floor Sections Diagram Plinth 70mm Screws 8ft Gable ID: 15602 12ft Plinth Plinth Wall ID: 15992 Floor Boards Front Panel ID: 15606 8ft Gable 12ft Plinth Plinth Back Plinth Base Module Base Module Pilot drill holes before fixing Fix the 12ft plinth lengths...
  • Page 7 Floor Section Stages Floor Stages Back Front Side Place the floor assembly inside the plinth and base module. Wall Panels Section Stages 1220mm 1220mm Parts List required: 1. Left Gable Panel - LOW (1) 2. Back Left - Plain Panel (1) Lining Flush Lining Flush 3.
  • Page 8 Wall Panels Section Stages LEFT Gable (Low) Panel Stage LEFT Gable (Low) Panel Stage Left Gable Low and Back (LEFT) Panel Position 50mm 50mm Position and fix ID: PT25544 the plain gable Screws Screws ID: PT25523 Side panel (Left) (LEFT) ID: PT25533 Front Pilot drill holes...
  • Page 9 Wall Panels Section Stages Side Opening Window (LEFT) fixing 50mm Screws ID: PT25521 Front Side (LEFT) Position and fix in place the Window Side Gable (High) Panel Wall Panels Section Stages 1220mm 1220mm Parts List required: 1. Back Centre - Plain Panel (1) 2.
  • Page 10 REAR - Wall Panels Section Stages Back (CENTRE) Panel Stages Back Panels Position Back Cloaking Strip (CS) fixing ID: PT21080 Gap for guttering at top 74mm ID: PT25537 50mm 50mm Screws Screws Pilot drill holes Pilot drill holes Back before fixing before fixing Back 1220mm...
  • Page 11 RIGHT - Gable Panels Section Stages Cloaking Strip Right Opening 1220mm 1220mm Window (High) Right Gable Panel (Low) Panel Parts List required: Lining Flush 1. Right Window Gable Lining Flush Panel - HIGH (1) 2. Right Gable Panel - LOW (1) 3.
  • Page 12 Front Panels Section Stages 317.5mm 16mm Parts List required: Lining Flush 1. Plain Panel - Front Corner (W317.5mm) (1) ID: PT25540 2. Window Glazing Unit (W610mm) (1) The panel can be rotated so the lining ID: PT18490 board gap can fit in the front corners 3.
  • Page 13 Front Panels Section Stages Glazing Unit fixing Top Panel Stage Glazing Unit fixing Pilot drill holes Secure the Front before fixing Glazing Position and align Unit. Use the Glazing Unit 70mm Screws ID: PT18490 through ID: PT20324 the back 50mm rebate Screws ID: PT18490...
  • Page 14 Front Panels (Double Doors) Section Stages 2135mm Parts List required: Lining Flush Lining Flush 1. Double Door Panel (1) 2. UPVC Double Door (1) 3. Front Cloaking Strip (cut-to-size) 60mmx16mmx2135mm 16mm Front ID: PT25539 / 19504 Double Door Panel Diagram Double Door Panel fixing Double Door Panel fixing UPVC Double Door fixing...
  • Page 15 Front Panels (Double Doors) Section Stages UPVC Double Door fixing UPVC Double Door fixing UPVC Double Door fixing ID: 19504 ID: 19504 ID: 19504 80mm Screws Front Front 80mm Screws Front Fix and secure the Position and fit the UPVC Double Door UPVC Door Cill to the Fix and secure the UPVC Double Door section to the double door panel...
  • Page 16 Front Panels Section Stages 317.5mm 16mm Parts List required: Lining Flush 1. Plain Panel BOTTOM (W610mm) (1) ID: PT20327 2. Window Glazing Unit (W610mm) (1) The panel can be rotated so the lining ID: PT18490 board gap can fit in the front corners 3.
  • Page 17 Front Panels Section Stages Top Panel Stage Front Cloaking Strip (CS) fixing Front Corner Panel Stage Front ID: PT25540 Check the corner gap of panel 70mm Screws ID: PT21080 Front Rotate the panel so 50mm that the flush side is Pilot drill holes on the inside before fixing...
  • Page 18 BACK - Corner Trims (CT) FRONT - Corner Trims (CT) REAR - Roof Stand-Off Frame (SOF) ID: PT21080 Side Front Side Back Position and fix 80mm ID: PT21080 80mm ID: PT21080 the Rear Frame. Screws Screws Back 44mm x 27mm x 3695mm 60mm x 16mm 60mm x 16mm...
  • Page 19 Roof Section Stages Parts List required: 1. Metal Roof Section L2920mm x W728mm - (1) [ID: 21147] 2. 115mm Metal Roof Screws Side Front (RIGHT) Roof Section Stages Roof Section Stages Roof Section Stages Roof section Roof sections Front 13mm position Cross-section overhang...
  • Page 20 Roof Section Stages Roof Section Stages Roof Section Stages Metal Roof Cross-Section Diagram 115mm Metal 115mm Metal Roof Screws Roof Screw ID: 21147 Metal Roof Wall Panels Ensure the 115mm metal roof screws 115mm Metal Ensure the 115mm metal roof screws is align fix through to the wall panels Roof Screws and fix through to the wall panels below.
  • Page 21 Roof Section Stages Roof Section Stages Roof Section Stages Roof Section Stages ID: 21140 ID: 21140 1m Wide Wide 115mm Metal Roof Screws ID: 21140 115mm Metal 115mm Metal Roof Screws Roof Screws * Use Step ladder when Position the 1m wide roof fixing the roof sections, 2 people are required.
  • Page 22 Roof Section Stages Monopitch Ridge Flashing Stages L2530mm x 2 ID: PT21166 Flashing overlap Position and fix the Monopitch Ridge Flashing to the front of roof sections. 25mm Metal These are the same lenghts Roof Screws of water deflector flashing Insulation Kits fixing Top Window Architrave Detail Door Stop (DS) fixing...
  • Page 23 Insulation Kits fixing Insulation Kits fixing Side Window Architrave Detail Window frames Window battens ID: 21090 ID: 21090 Add the side and Side window Repeat previous bottom window architrave stages to fit the architrave using edge frame. panel pins. Secure with See side window Panel Pins.
  • Page 24 Insulation Kits fixing Insulation Kits fixing Guttering fixing ID: 20131 ID: 20132 Cut to size Fix the cladding cover strips over the joins in the internal cladding ID: 21090 boards with Panel Pins Gutter union Back 25mm Black Screws Fix the cladding cover strips over ID: 21090 Position and fix in place the Guttering Kit the joins in the internal cladding...
