Project Timber Evolution My Den Building Instructions page 17

Front
51

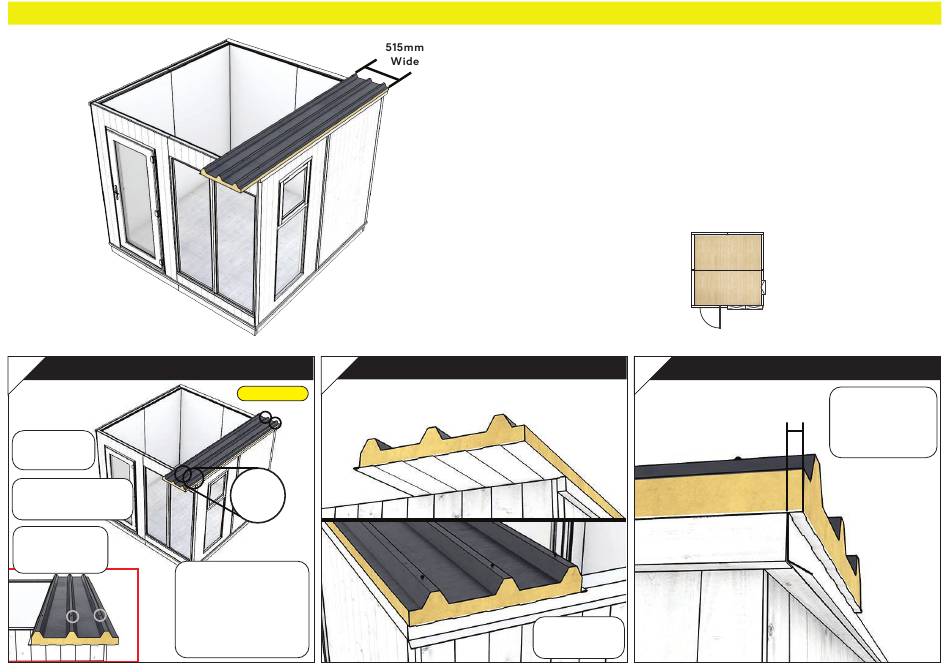

Roof Section Stages
98mm Metal
Roof Screws
* Use Step ladder when
fixing the roof sections,
2 people are required.
Screws must fix
throught the
Front
top ridge
Position the shortest
width of roof section
and insecure to fit
underneath to the
wall panels. Secure
with metal screws.
Roof Section Stages
Side
(RIGHT)
52 Roof Section Stages
ID: 21149
Front
See
Cross-section
diagram
Side
(RIGHT)
Parts List required:
1. Metal Roof Section L2920mm x W515mm - (1) [ID: 21149]
2. 98mm Metal Roof Screws
Side
(RIGHT)
Roof section
position
Back
Floor Plan
Rear
Side
Side
(Left)
(Right)
Front of Building
53
Roof Section Stages
13mm
Side
(RIGHT)
Roof sections
overhang
13mm at the
rear.
Rear
