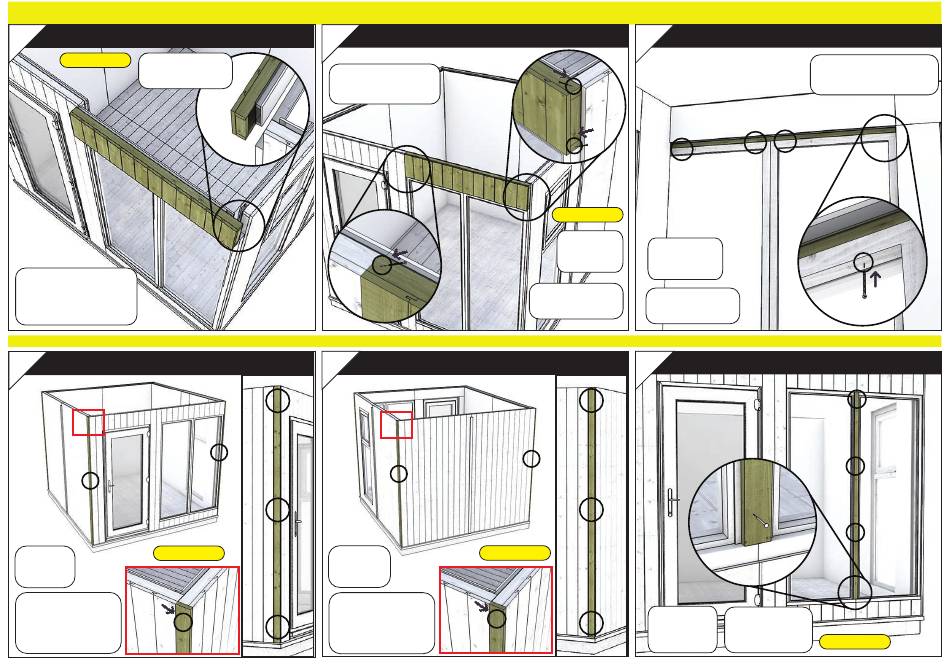

Project Timber Evolution My Den Building Instructions page 15

40 Top Panel Stages
ID: PT20323
Check the corner
gap of panel
Front
Position the Top
Panel to the top
of glazing units
43
FRONT - Corner Trims (CT)
Side
Front
ID: PT21077
80mm
Screws
60mm x 16mm
x 2135mm Side
Corner Trim
Door on the Left Panel Stages
41
Fix and secure
the Top Panel
44
Side
80mm
Screws
60mm x 16mm
x 2050mm
Front
Corner Trim
Top Panel Stages
Front
ID: PT20323
50mm
Screws
Pilot drill holes
before fixing
BACK - Corner Trims (CT)
Back ID: PT21077
Side
Back
Top Panel Stages
42
Top Panel fixing
Front
S70 S70
S70
70mm
Screws
Pilot drill holes
before fixing
45
Window Frame Cloaking Strip (CS)
Panel
40mm x 11mm
(1)
Pins x 1740mm
S70
ID: PT21077
