Cannes Summerhouse
Building Instructions
Please read the instruction carefully
and retain for future reference
Covers Multiple
12x6 Cannes Summerhouse
with French Doors
Building shown
For Queries and Help please contact 01777 802300
Please note that all images are for illustration purpose only.
12x6, 10x6
and 8x6
Sizes:

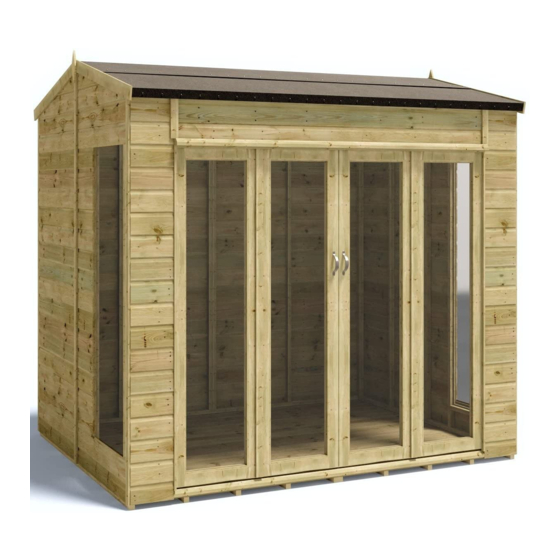

8x6 Cannes Summerhouse
with French Doors
Building shown
V1.8 06.01.22 INS0071
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Project Timber Cannes Summerhouse 12x6
Summary of Contents for Project Timber Cannes Summerhouse 12x6
- Page 1 Cannes Summerhouse Building Instructions Please read the instruction carefully and retain for future reference 12x6, 10x6 Covers Multiple and 8x6 Sizes: 12x6 Cannes Summerhouse 8x6 Cannes Summerhouse with French Doors with French Doors Building shown Building shown For Queries and Help please contact 01777 802300 Please note that all images are for illustration purpose only.
-
Page 2: Important Safety Notices
- Construct your building within one month of delivery to stop parts warping / bowing. - Treat your building annually with a quality timber treatment to comply with the buildings warranty. ADDRESS: Project Timber Ltd, Parry Business Park, Grassthorpe Road, Sutton-on-Trent, Newark, Notts, NG23 6QX SPARE PARTS... - Page 3 For Queries and Help please call Product Support: PRODUCT MAINTENANCE CHECK LIST: CLADDING STYLE PANEL ORIENTATION 01777 802300 Wooden Sheds / Playhouses / Summerhouses Shiplap Cladding: It is essential to ensure that the panels of your This style of building are in the correct orientation. Assembly cladding allows the timber to TROUBLE SHOTTING GUIDE in the wrong orientation may lead to water...
- Page 4 6ft Gable Cannes Summerhouse Buildings 12x6 Cannes 10x6 Cannes Summerhouse with Summerhouse with French Doors shown French Doors shown 8x6 Cannes Summerhouse with French Doors shown...
- Page 5 6ft Gable Cannes Summerhouse Floor Assembly 12x6 Floor Assembly 10x6 Floor Assembly 8x6 Floor Assembly 1812mm x 1172mm (1) 1812mm x 1172mm (3) 1812mm x 1172mm (2) 1812mm x 879mm (2) 6ft Gable Cannes Summerhouse Roof Position 12x6 Roof 10x6 Roof 8x6 Roof Position Position...
- Page 6 6ft Gable Cannes Summerhouse Back Panels Position 12x6 Back Panels Position 10x6 Back Panels Position 8x6 Back Panels Position 4ft Plain 4ft Plain 3ft Plain 3ft Plain 4ft Plain Panel Panel Panel Panel Panel 4ft Plain 4ft Plain 4ft Plain Panel Panel Panel...
- Page 7 Floor Stages For Floor Insulation only Floor Stages Back Lay and align 12x6 Floor the Floors Pilot drill holes assembly before fixing Back Front 50mm Screws Fix the Floors Before constructing the together, with building, cut the insulation Side screws in angled foil to size and staple to the *All Garden Buildings must be built on level, position...
- Page 8 Fix the Left Gable Panels 50mm Position and fix all the back panels Pilot drill holes to the back panel before fixing Screws and secure to the floor panels Fix the Front-Right Window Gable Panel Side Front 50mm Pilot drill holes 50mm Screws Pilot drill holes Front...
- Page 9 Fit the Door Drip Catcher and Fix the Valance Panel fix at the back of valance panel 70mm Screws Back Front Front Fix the Door 50mm 50mm Pilot drill holes Pilot drill holes Pilot drill holes Threshold Screws before fixing Screws before fixing Front...
- Page 10 Truss Position Centre Purlin fixing Centre Purlin fixing 50mm Pilot drill holes View from Front Detail 50mm Screws before fixing Screws 879mm or 1172mm Pilot drill holes before fixing Detail The distance 879mm Detail Detail Measure from the or 1172mm is the framing to the width of a Roof Panel.
- Page 11 For Tongue and Groove Roof Panel ONLY Roof Panel fixing ONLY Roof Panel fixing ONLY Roof Panel fixing ONLY Position the Roof Panel to the 70mm top of truss and panels Screws 70mm Screws Back Pilot drill holes before fixing *Important* Fix the Roof Panel Push up the Roof Panels...
- Page 12 For OSB Roof Sheet ONLY Roof Sheet ONLY Roof Sheet fixing ONLY Roof Sheet fixing ONLY Position the Roof Sheet to the 30mm top of truss and panels Nails Back 30mm Nails Fix the Roof Sheet Fix the Eaves Purlin to the truss and to the Roof Sheet panels...
- Page 13 Window Glazing fixing Door Hinge fixing Door Hinge fixing Detail A Fix the Hinges Place the Glazing at the back of into Window Gable the Door Frame Panel and fit the Beading around the edges 30mm Use Cardboard Screws to protect the Glazing when Detail B fitting the...
- Page 14 Door fixing Door Hinge fixing Door Hinge fixing 30mm Screws Pilot drill holes Front Important: before fixing 30mm Hung the doors and secure the Door Beading fitted on the Screws door hinge to the wall panels. front of the door Tower Bolt Fixing Door Handle fixing Tower Bolt fixing...
- Page 15 Door Lock fixing Press Lock Fixing Door Lock Block fixing Fix the Press Lock 30mm over keyhole. Screws The lock fits centrally Fix the Press Lock and to the door frame. Pilot drill holes It will overhang the sides Door Lock Block before fixing of the frame slightly.
- Page 16 Door Cloaking Fixing Door Cloaking Fixing Roof Packer fixing for TG Roof 30mm Screws 50mm Fit and fix the Door Screws Cloaking Strips at the back of the door 30mm Pilot drill holes Fit and fix the Door Cloaking Screws before fixing Strips at the front of the door Roof Felt fittings...
- Page 17 Roof Felt fittings Roof Felt fittings Roof Felt fittings Tack Top corners T10 Felt to hold in place Tacks T10 Felt Tacks Tack every 100mm Cloaking Strip fixing Cloaking Strip fixing Roof Felt fittings Cut to size 30mm 30mm The Felt must lay on Nails Nails the top of each other...
- Page 18 Fascia fixing Finials fixing 30mm Nails Panel Pilot drill holes Pins before fixing...
