Project Timber Evolution My Den Building Instructions page 5

ID: PT25385

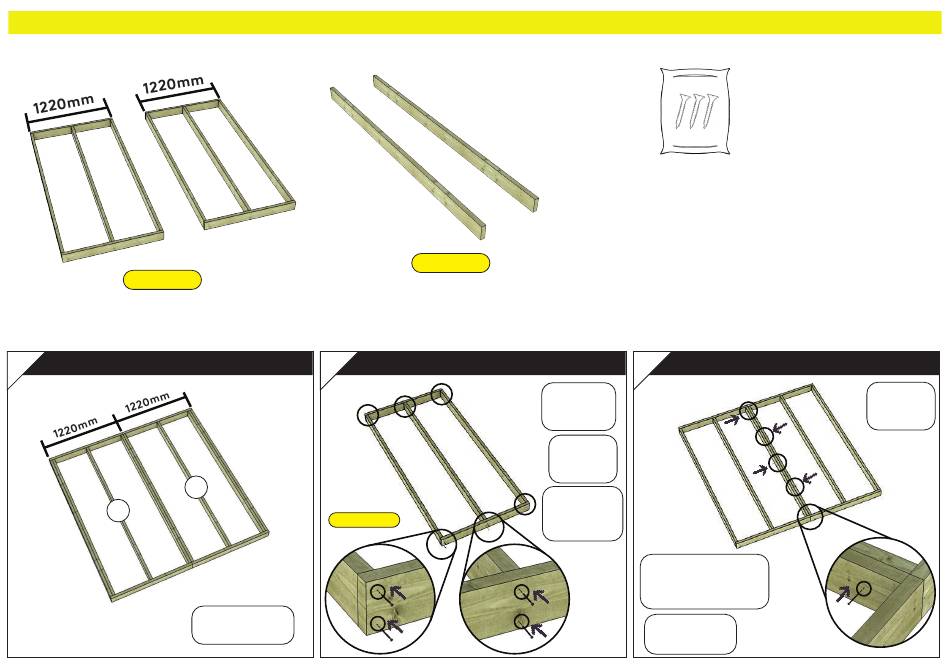

Base Modules
1
Base Module fixing
A
A
Side
Front
Gable Bearers
(For each end of the assebled base)
2
Side
ID: PT25385
Module A x2
Base Module Woodkits
ID: PT25398
Base Module fixing
1220mm
Module
100mm
Screws
Pilot drill
holes before
fixing
Fixing Kit
Parts List required:
1. Base Module A - 1220mm x 2528mm (2)
2. Gable Bearers - 38mm x 2452mm (2)
3
Base Module fixing
Back
Side
Alternate sides
to screws together
the Base Module
Pilot drill holes
before fixing
70mm
Screws
Front
