Summary of Contents for Project Timber Evolution My Den
Page 1

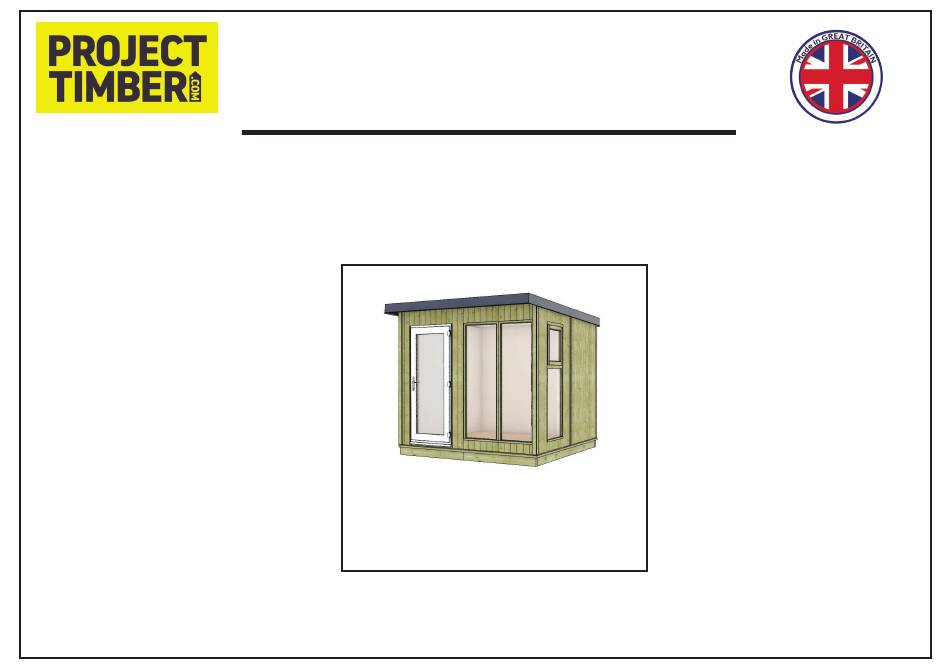

Evolution My Den Building Instructions Please read the instruction carefully and retain for future reference Cover Size: 8x8 My Den - Metal Roof Side Opening Window (RIGHT) Building shown For Queries and Help please contact 01777 802300 Please note that all images are for illustration purpose only.
Page 2
8x8 Evolution My Den Metal Roof Side Window Opening (RIGHT) Metal Roof Floor Assembly shown position 515mm 1000mm 2348mm x 1217mm (2) Back Panels Front Panels 8x8 Floor Plan position position 1220mm 1220mm 1220mm 610mm 1220mm Single Door 610mm Panel...
Page 3
Door and Front Windows position options Side Opening Window (LEFT) Glazing Units position option (610mm) Panel Front Left Side Bottom Floor Plan Panel Single Door Panel 1220mm 1220mm (LEFT) Door Position (LEFT) Side Window Glazing Units Opening position (610mm) (LEFT) 610mm 610mm Panel...
Page 4
Building Parts: 8x8 Evolution My Den Metal Roof Building Parts 8ft Back Water Part ID Roof Section Deflector Flashing 1000mm Width Roof Section PT25544 1000mm Width Roof Section PT25545 515mm Width Barge Board PT25533 Flashing Gable Frame Standoff PT25535 Drip Edge...
Page 5
Base Module Woodkits Fixing Kit Parts List required: 1. Base Module A - 1220mm x 2528mm (2) ID: PT25398 2. Gable Bearers - 38mm x 2452mm (2) ID: PT25385 Gable Bearers Base Modules (For each end of the assebled base) Base Module fixing Base Module fixing Base Module fixing...
Page 6
Base Module Stages Base Module fixing Base Module fixing Base Module fixing 70mm Side 70mm Back Floor Boards Plinth Screws Screws Floor Joist Pilot drill holes before fixing Side Side of Base Module Front Front ID: PT25398 ID: PT25398 Gable Bearers are fitted on each side of Position the gable bearers each side to fully assembled base.
Page 7
Floor Sections Stages Floor Stages Floor Stages Floor Sections Diagram Pilot drill holes 70mm before fixing Screws Plinth Back ID: 15906 Wall ID: 15606 Floor Boards Panel Front Plinth Base Module Side Base Module Lay and fix the Plinth Floor Joist Position the plinth into the top of lengths together at assembled base module...
Page 8
Floor Section Stages Floor Stages Side Back Front Place the floor assembly inside the plinth and base module. Wall Panels Section Stages Parts List required: 1220mm 1220mm 1. Door Panel - LEFT (1) 2. UPVC Single Door - LEFT (1) Lining Flush 3.
Page 9
Wall Panels Section Stages Left Gable (High) Panel Stages Left Gable (High) Panel Stages Left Gable and Door Panel (LEFT) Position *Check the Side Opening Window (LEFT) position option floor plan for guidelines. ID: PT25534 Position and fix 2 50mm the plain gable panel (Left) Screws...
Page 10
Wall Panels Section Stages UPVC Door fixing LEFT - Gable Cloaking Strip (CS) UPVC Door fixing Front ID: PT21077 ID: 19503 50mm Screws Side Pilot drill holes Side (LEFT) Front before fixing (LEFT) Position and fix 80mm the gable Position and fit the UPVC Door Fix and secure the UPVC Door Cloaking Strip is used to fix section to the door panel (LEFT)
Page 11
REAR - Wall Panels Section Stages 1220mm 1220mm Parts List required: 1. Back Panel 1220mm LEFT (1) and RIGHT (1) Lining Flush Lining Flush 2. Rear Cloaking Strip (1) 60mmx16mmx2012mm Panel Position Diagram Rear 16mm 16mm 74mm 1146mm 1146mm 74mm Side Side Side...
Page 12
REAR - Wall Panels Section Stages Back Panel Stages ID: PT25545 Back Position and fix the back panel 50mm Pilot drill holes (RIGHT) and Screws cloaking strip before fixing RIGHT - Wall Panels Section Stages Parts List required: Cloaking Strip Right Opening 1220mm 1220mm...
Page 13
RIGHT - Wall Panels Section Stages Right Gable (Low) Panel Stages RIGHT - Gable Cloaking Strip (CS) Side Opening Window (RIGHT) fixing ID: PT21077 Front ID: PT25522 50mm Screws Pilot drill holes ID: PT25535 50mm before fixing Screws 50mm Back Screws Pilot drill holes Side...
Page 14
Door on the Left Panel Stages Bottom Panel Stages Glazing Unit fixing Bottom Panel Stages Front ID: PT25548 ID: PT25548 Secure the Bottom Panel *Check the Front Window Panels position option (LEFT or RIGHT). 50mm Screws Position and align the Glazing Unit Check the corner gap of panel Front...
Page 15
Door on the Left Panel Stages Top Panel Stages Top Panel Stages Top Panel Stages ID: PT20323 Check the corner Top Panel fixing Fix and secure gap of panel Front the Top Panel Front ID: PT20323 50mm Front 70mm Screws Screws Position the Top Pilot drill holes...
Page 16
Drip Edge Flashing Stages REAR - Roof Stand-Off Frame (SOF) GABLE - Roof Stand-Off Frame (SOF) ID: PT21077 Position and fix the Gable Frame 44mm x 27mm x 2590mm ID: 21173 ID: PT21077 Position and fix the Position and fix Drip Edge Flashing the Rear Frame.
Page 17
Roof Section Stages Parts List required: 1. Metal Roof Section L2920mm x W515mm - (1) [ID: 21149] 2. 98mm Metal Roof Screws Floor Plan Rear Side Side (Left) (Right) Side Front (RIGHT) Front of Building Roof Section Stages Roof Section Stages Roof Section Stages ID: 21149 Roof sections...
Page 18
Roof Section Stages Roof Section Stages Roof Section Stages Metal Roof Cross-Section Diagram 98mm Metal 98mm Metal Roof Screws Roof Screw ID: 21149 Metal Roof Wall Panels Ensure the 98mm metal roof screws 98mm Metal Ensure the 98mm metal roof screws is align fix through to the wall panels Roof Screws and fix through to the wall panels below.
Page 19
Roof Section Stages Roof Section Stages Roof Section Stages Roof Section Stages Wide 98mm Metal Roof Screws ID: 21140 98mm Metal Roof Screws Side Front (LEFT) ID: 21140 Roof section position * Use Step ladder when fixing the roof sections, 2 people are required.
Page 20
Roof Section Stages Barge Board Flashing Stages Foam Closure Strip fixing Monopitch Ridge Flashing Stages 25mm Metal ID: 21179 Roof Screws Side Front ID: 21166 Front Position and fix the Fit and place the Foam Monopitch Ridge Flashing Closure Strips to the to the front of roof sections.
Page 21
Internal Cover Trims Internal Cover Trims Internal Cover Trims Position and fit ID: 21083 the D Mould strips Fit the edge frames to cover the join Slide and fit the side around the opening between the window batton to the window frame using gap down the window window frame.
Page 22
Internal Cover Trims Guttering fixing Guttering fixing Cut to size ID: 21083 Fix the cladding cover strips over the joins in the internal cladding boards with Panel ID: 20131 Pins 25mm Black 25mm Black Back Screws Screws Position and fix in place the Guttering Kit Gutter bracket fixing Back on the back of the building...
