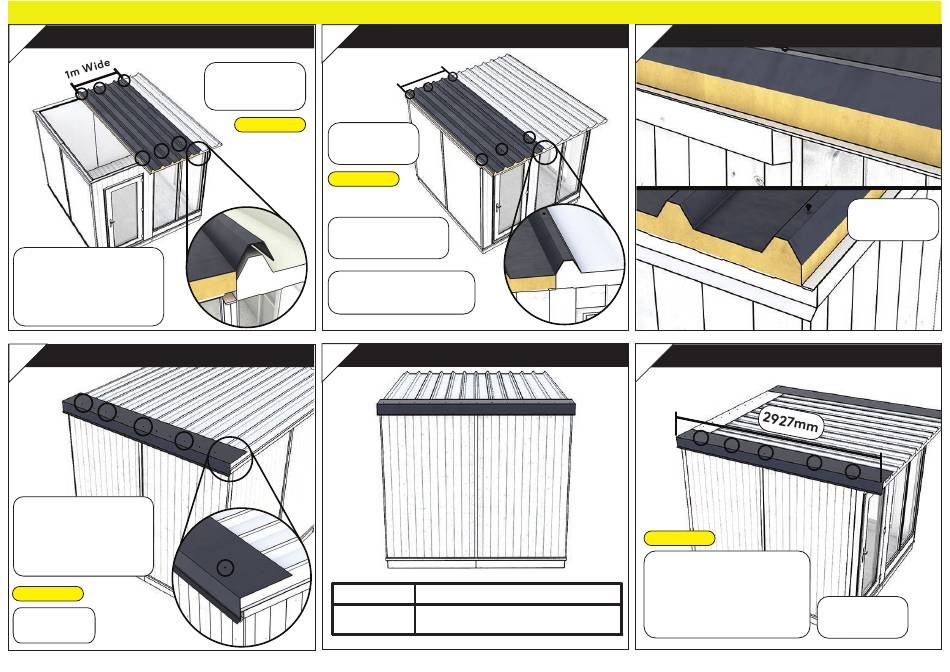

Project Timber Evolution My Den Building Instructions page 19

57 Roof Section Stages
Position the 1m wide roof
section and slot it into the
first roof section. Fix in
place with metal
roof screws
60
Water Deflector Flashing Stages
Position and fix the
Water Deflector
Flashing through the
top ridge of metal
roof.
Back
ID: 21169
25mm Metal
Roof Screws
58
98mm Metal
Roof Screws
ID: 21140
98mm Metal
Roof Screws
ID: 21140
* Use Step ladder when
fixing the roof sections,
2 people are required.
Repeat previous roof
section fixing stages
61
Water Deflector Flashing Length Size
Building size
8x8
Roof Section Stages
Roof Section Stages
1m
Wide
Back View
Water Deflector Flashing Lengths
L2530mm x 1
Roof Section Stages
59
Side
Front
(LEFT)
Back
62 Barge Board Flashing Stages
ID: 21177
Position the Barge Board
Flashing on both side of
roof sections. Fix the
flashing through the top
ridge of metal roof.
Roof section
position
Side
(LEFT)
25mm Metal
Roof Screws
