Cabling

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing
and recording images instantly.
A non-PoE switch will require an adaptor for power transmission.
1. NETWORK CONNECTIONS – Using a PoE Switch or PoE Injector, connect the camera using an Ethernet
cable for both data and power.
2. NETWORK CONNECTIONS – Not using PoE Switch or PoE Injector, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.

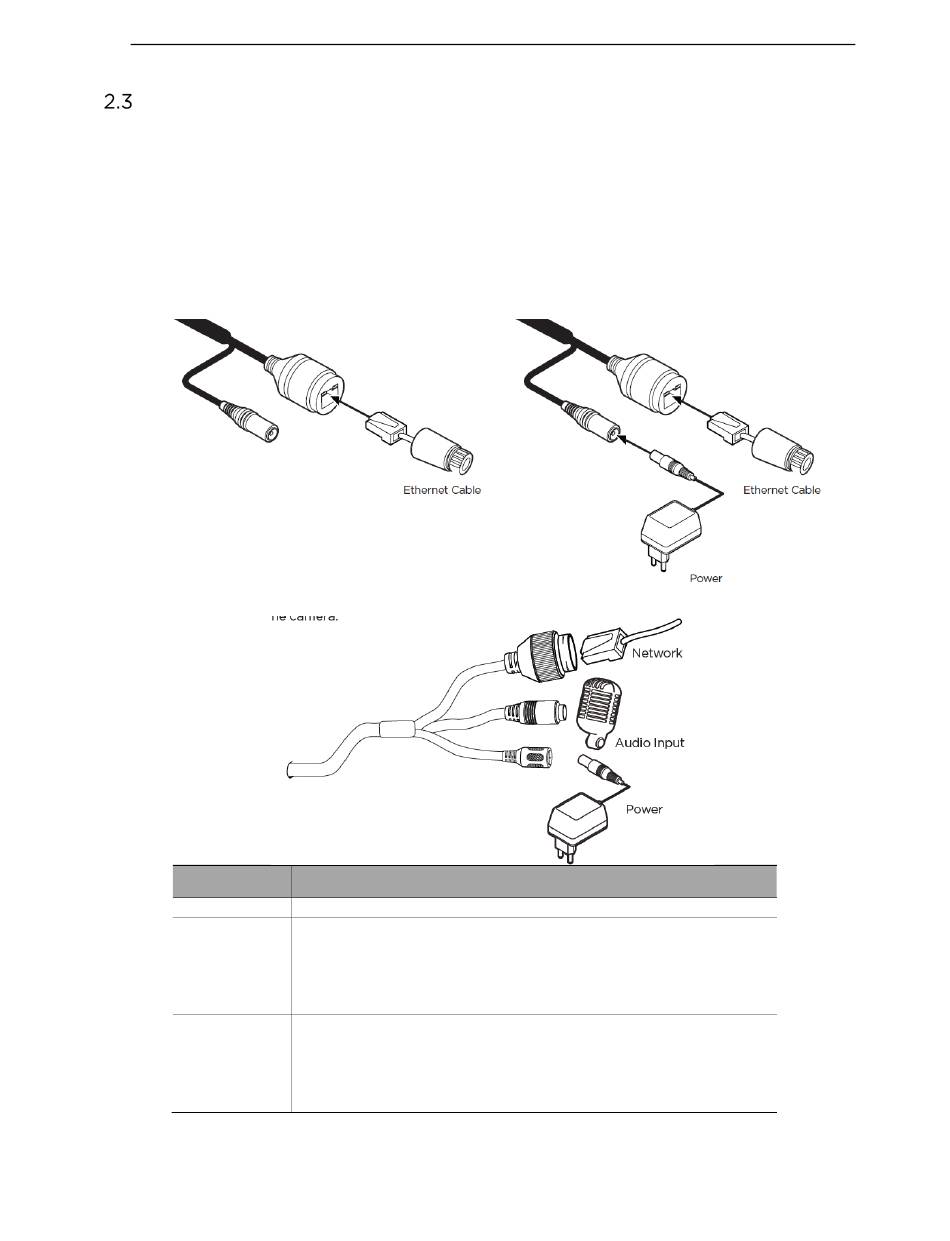

Use the diagram below to connect all supported external devices to the camera.
No.
Network Cable
Audio Input
Power Input
Connect a crossover cable into the RJ-45 port.
Connect the 'audio in' port of the camera to the microphone
directly or 'line out' port of the amplifier connected with a
microphone.
If the microphone is connected directly, the microphone with the
embedded amplifier such as condenser mic. needs to be used.
Please, check the voltage and current capacity of the rated power
carefully.
Power requirements: DC12V, PoE (IEEE 802.3af class 3). Adapter
not Included.
Power consumption: <9.5W
Description
-8-
