Cabling

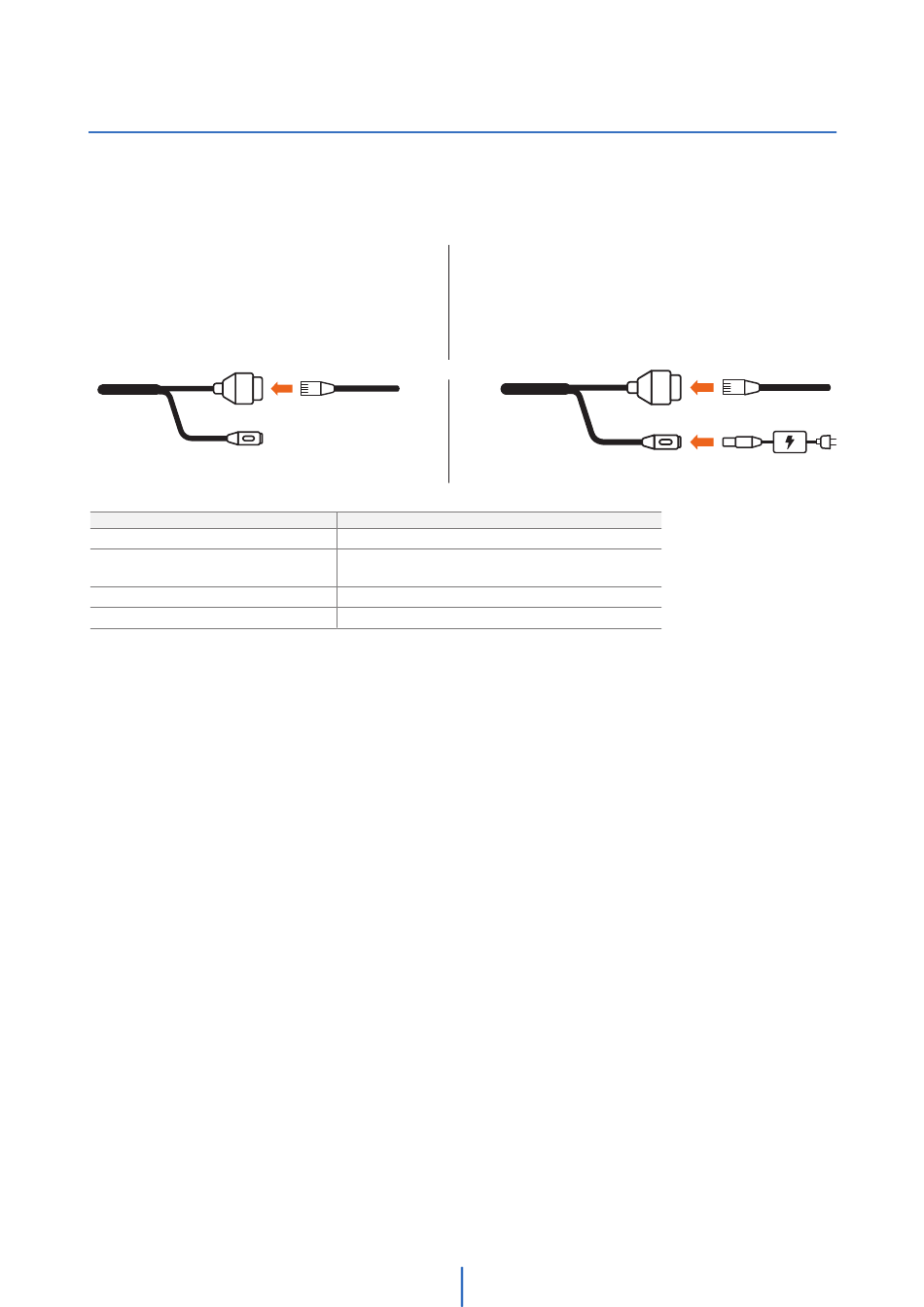

Pass the wires through and make all necessary connections.
Use a PoE Injector (required. Sold
separately) to connect data and power to
the camera using a single Ethernet cable.
Power information
Power requirements
Power consumption
Maximum cable distance
Connector
Use a non-PoE Switch to connect data
using an Ethernet cable and use a power
adapter to power the camera.
OR
DC12V, PoE, adapter not included
12V DC: 10.4W, 866mA
PoE: 12.5W, 260mA
328' (100m)
RJ45
