5. Menu Operations

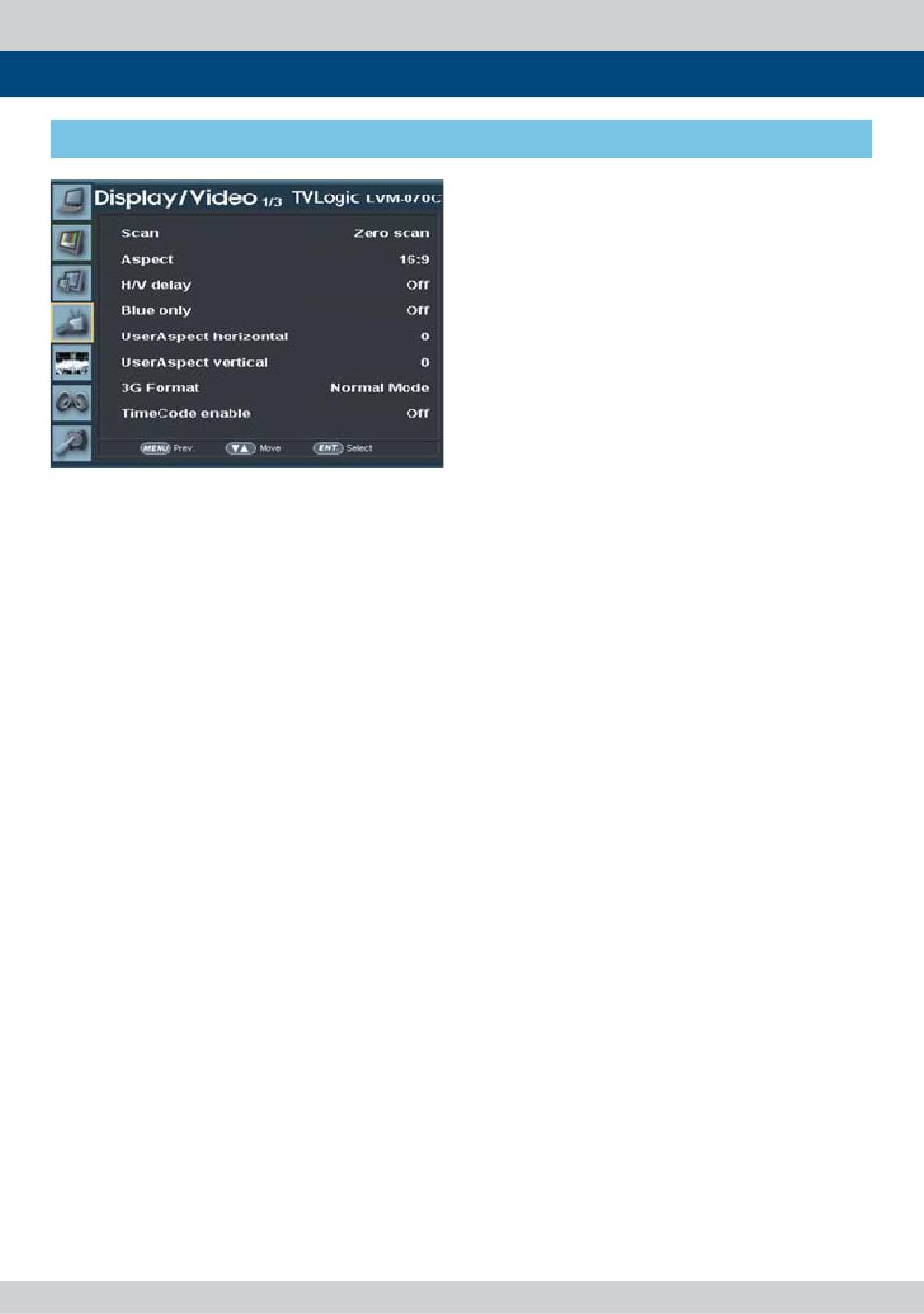

[4] Display / Video

• [SCAN] Button/Lamp •
- Used to change the scan mode. Press the
button to activate through the scan modes:
- [Zero Scan]->[Over Scan]->[Pixel To Pixel]
->[User Aspect]
* Please refer to "8. Other Functions [1] SCAN"
for more information.
• • Aspect
- Used to change the display ratio between
4:3 and 16:9.
- Activates in the order of [16:9]-[4:3]-[2.35:1]-
[1.85:1]-[15:9]-[16:10] -[AUTO].
• • [H/V DELAY]
- Used to check horizontal sync. and vertical
sync. simultaneously.
• • [BLUE ONLY]
- Press the button to remove red and green
from the input signal and display the screen
only under a blue signal. Press the button
again to activate mono mode.
- Activates in order :
14 Multi Format LCD Monitor
[Off ]-[Blue Only]-[Mono]-[Off ]
• • USER ASPECT HORIZONTAL/VERTICAL
- Activates only when the Scan mode is set to
USER ASPECT.
- Used to set the horizontal/Vertical aspect ratio
of the screen arbitrarily.
• • 3G FORMAT
- Used to select input format of SDI 3G A/B
support(NORMAL MODE, A 444 10BIT_YCbCr,
A 444 10BIT_RGB, A 444 12BIT_YCbCr, A
444 12BIT_RGB, A 422 12BIT_YCbCr, B 444
10/12BIT_YCbCr, B 444 10/12BIT_RGB, B 422
12BIT_YCbCr, B 422 10BIT_YCbCr, 60P).
• • TIME CODE ENABLE
- Used to display the Time Code.
- Available modes are VITC, LTC and OFF.
