Keysight M5200A Startup Manual page 62

3 Setting up the M5200x software
62

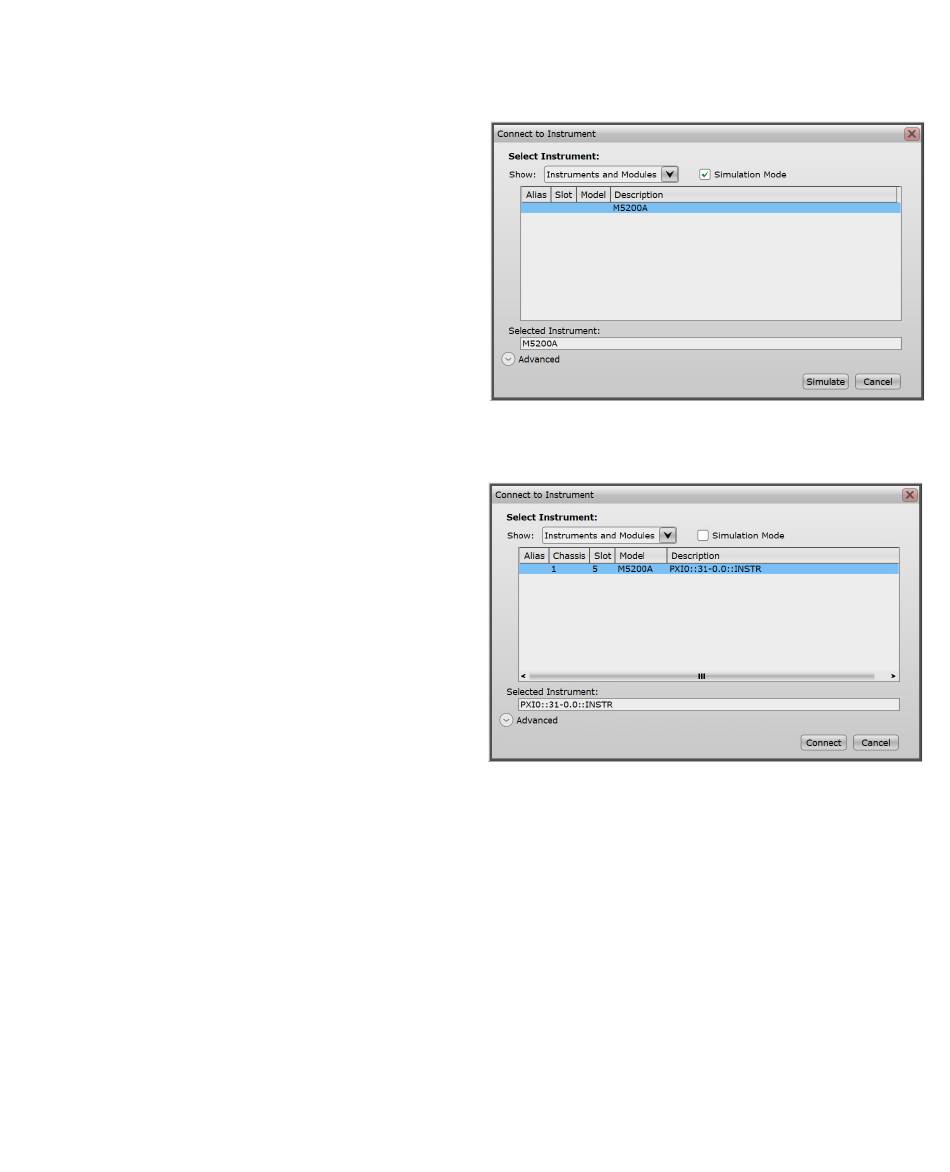

Figure 29 Default window without any active cards
Figure 30 Default window with active cards
As shown in Figure
auto-detects any active M5200A cards that are connected to the
chassis. All such cards are displayed along with the chassis, slot
number and VISA address on the Connect to Instrument window.
There are two modes that the M5200x SFP can be operated in.
30, while launching, the Keysight M5200x software
M5200A PXIe Digitizer Modules Startup Guide
