3 Setting up the M5200x software
64
• 'Simulation mode' disabled—This is the active mode of SFP
operation and is available when the Simulation Mode check box is
manually cleared. The Simulate button is replaced with the Connect
button on the Connect to Instrument window, as shown in
Figure 32. In this mode, only the active modules are displayed along
with the respective chassis number, slot number and VISA address.

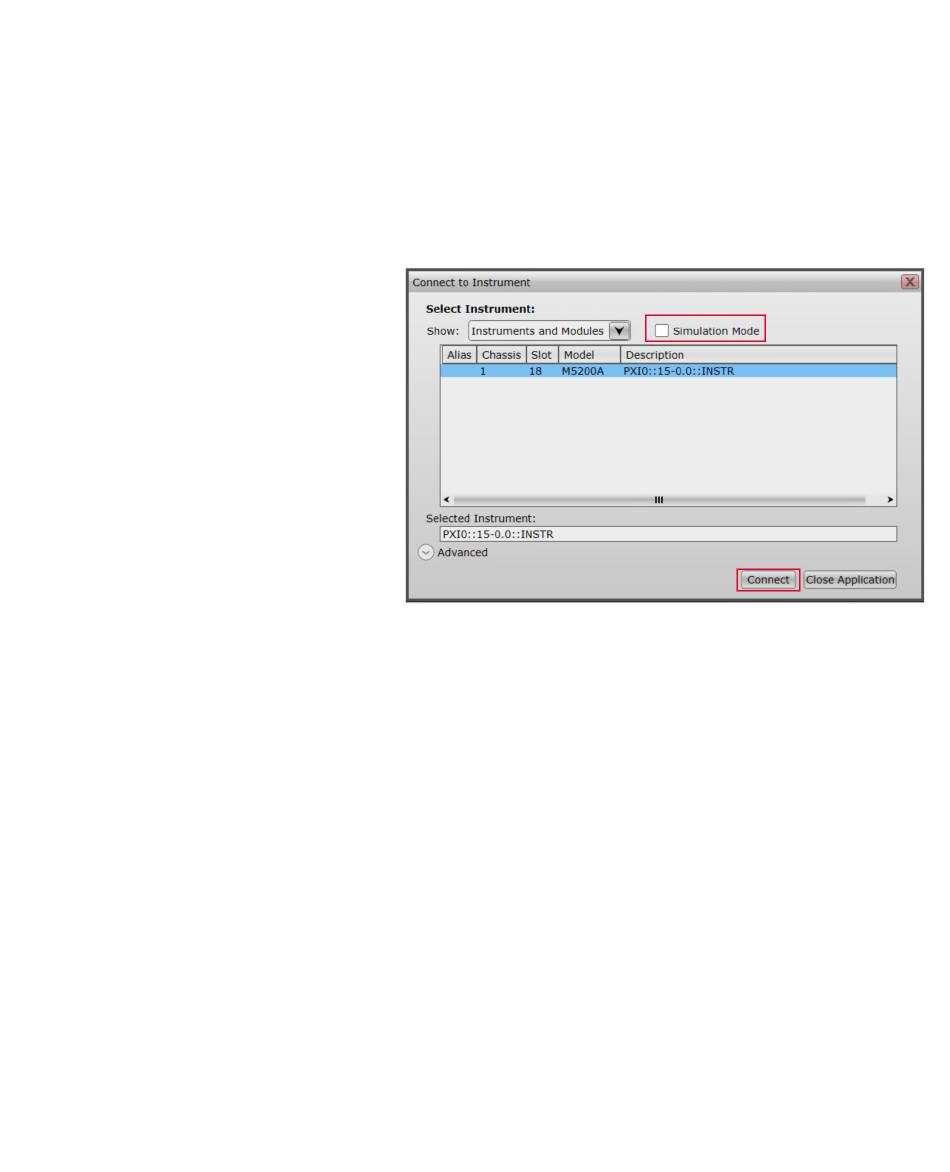

Figure 32 Connect to Instrument with "Simulation Mode" disabled
This mode is used for active SFP operations. In this mode, toggling the
SFP controls changes the signal state on the selected module. The status
bar on the main window shows 'Connected to <VISA-address>' to indicate
the module that has been selected, as shown in Figure 33.
