2 Setting up the M5200A module

2.2.5: Installing Slot Blockers and Filler Panels

2.2.6: Installing the Module

38
6 Connect the Interface module to your laptop or desktop PC.
To assure proper operating temperatures, install slot blockers (Keysight
model Y1212A, 5 per kit) and EMC filler panels (Keysight model Y1213A, 5
per kit) in empty module slots.
Plan your module position. Before installing the module, remove plastic
thread protectors on the top and bottom of mounting screws. Install the
left-most module first and continue installing modules from left to right,
similar to installing the embedded controller, as shown in
Figure 8 illustrates and x-ray view of the direction and position of the
module inside the chassis during insertion.
When installing the M5200A module:
1 Hold the module by the injector/ejector handle and make sure that the
injector/ejector handle is pushed down in the unlatched (downward)
position. Slide the module into chassis, using the slot guides (top and
bottom).
2 Slide the module into position. When you begin to feel resistance, pull
up the injector/ejector handle to fully inject the module into the
chassis backplane connectors.
3 Tighten the module retaining screws (top and bottom) and torque them
to 5 Lb-In (0.57 N-m).

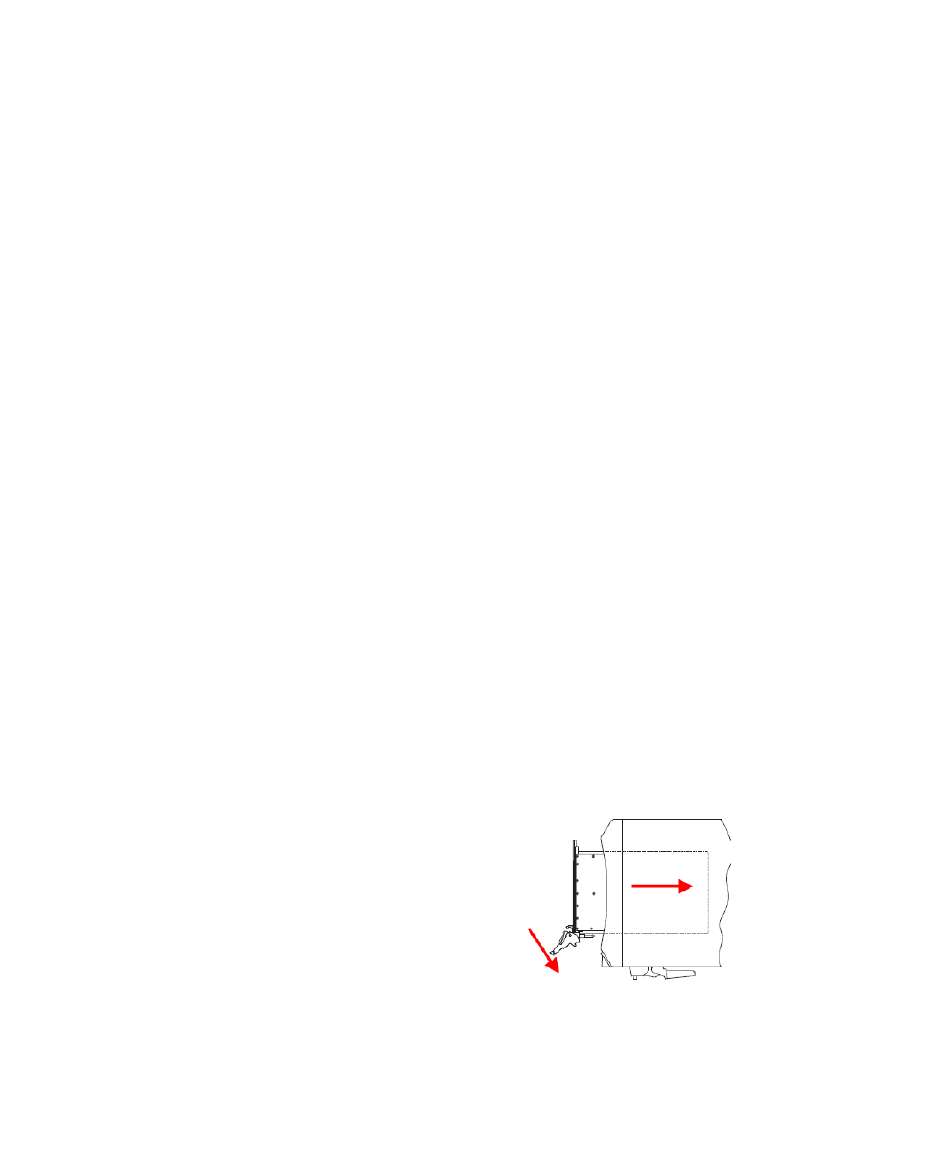

Figure 8 X-ray illustration of installing a PXIe module
M5200A PXIe Digitizer Modules Startup Guide
Figure 7. Also,
