2 Setting up the M5200A module
42
If any or all modules and their slot locations are still not visible in
Connection Expert, click the
You may also launch the M5200x Soft Front Panel (SFP) software to check
the M5200A module connection status.
Click Start > Keysight M5200x PCIe Module > M5200x SFP (x64).
The "Connect to Instrument" window appears by default and if connected,
it displays the M5200A modules along with the respective slots and VISA
address.

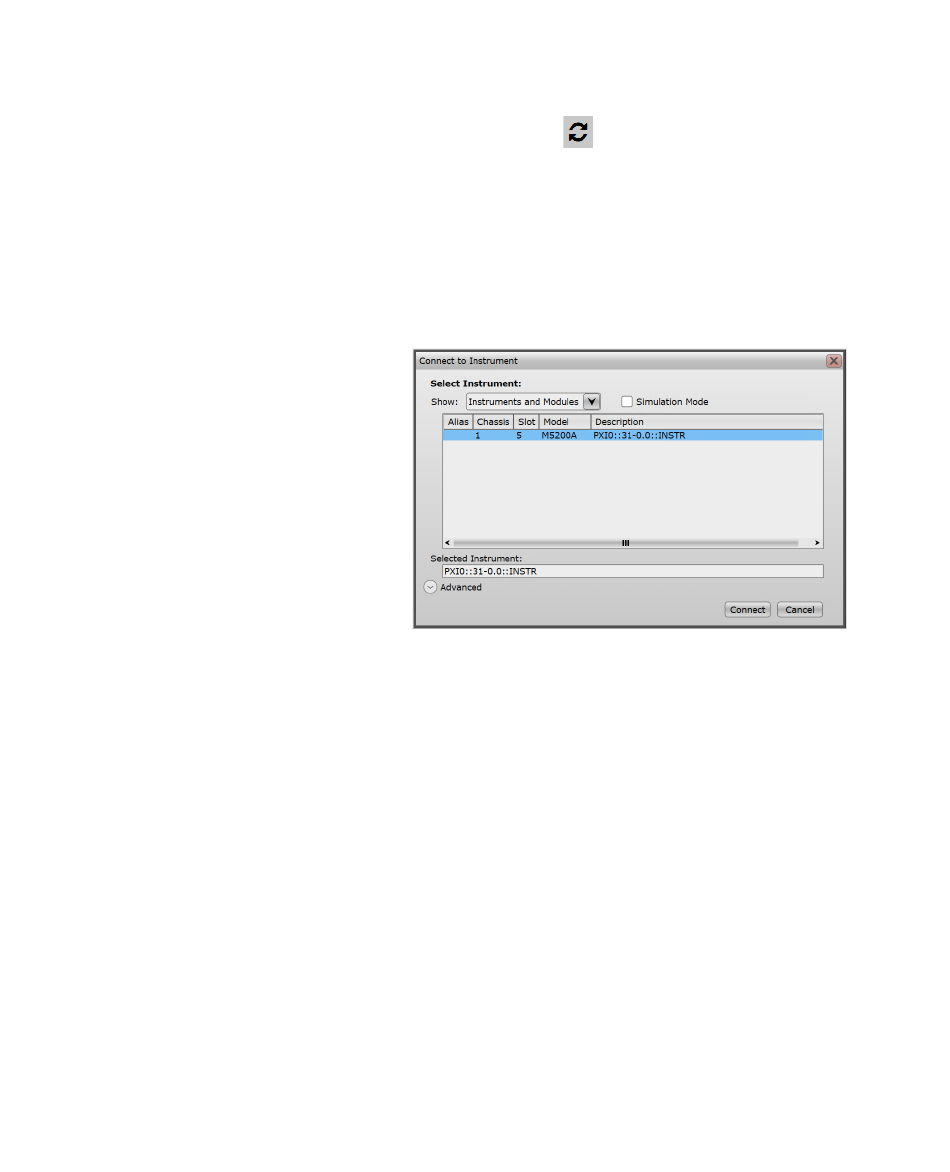

Figure 11 Checking M5200A connection in M5200x SFP
If you are still unable to communicate with the M5200A modules, verify
that the following software and hardware has been correctly installed:
• Keysight IO Libraries Suite
• M5200x SFP (x64)
• Module and chassis drivers
• System Interface Card, cable and PC PXIe card connections, if you are
using an external host PC
icon to scan.
