Section 2.3: Verifying M5200A module's operation

2.3.1: Verifying M5200A connection

M5200A PXIe Digitizer Modules Startup Guide
The operation of the M5200A module must be verified after you ensure
that all required software is installed, the chassis is powered on, and all
cabling is correct.
The Keysight Connection Expert (installed with IO Libraries Suite) helps
you check the connection of the M5200A PXIe Digitizer modules. To check
if the module and its slot location are visible in the Keysight Connection
Expert, click Start > Keysight Connection Expert.

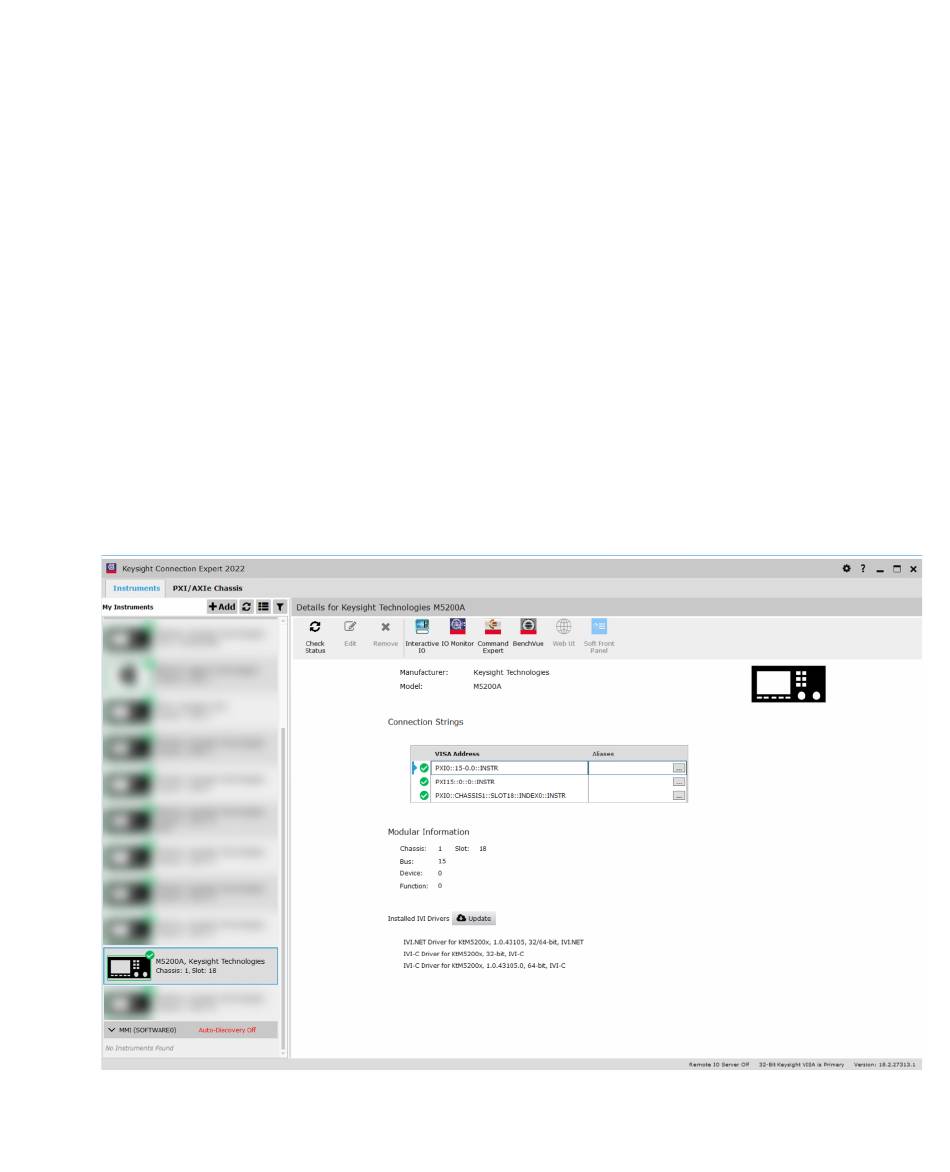

As shown in Figure 10, the connected instruments are visible in the
Connection Expert, including one or more M5200A modules in their
respective slots.
Figure 10 Checking M5200A module connection in Connection Expert
