M5200A PXIe Digitizer Modules Startup Guide

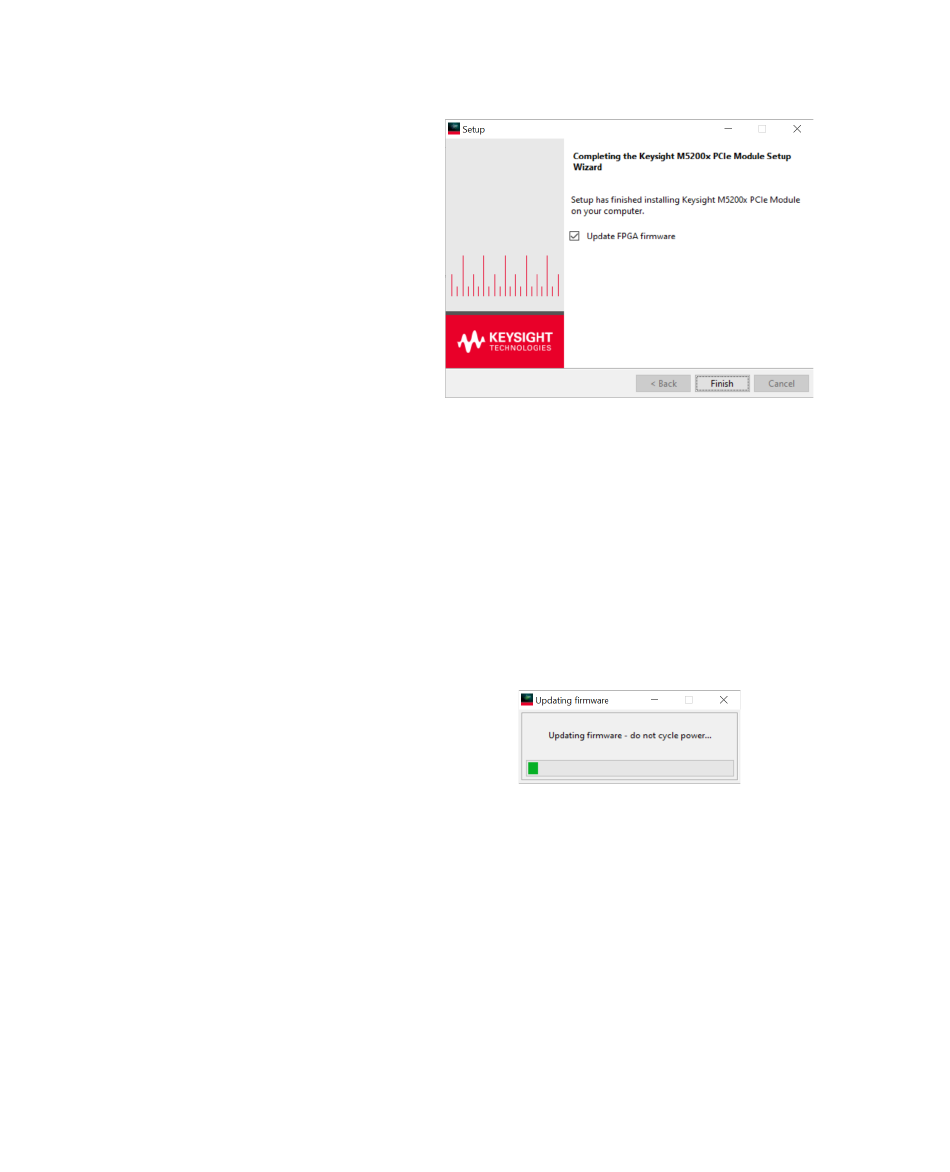

Figure 25 Completion window on the M5200x Setup Wizard
Note that the final window displays an option, which is enabled by
default, to Update FPGA firmware.
i With the Update FPGA firmware enabled, click Finish to
complete the software installation, to exit the M5200x Setup
Wizard and to allow the installer to proceed with updating the
FPGA firmware revision on the M5200A modules.
The following prompt is displayed during FPGA firmware
update.
Figure 26 Updating firmware prompt in the M5200x Setup Wizard
ii Clear the Update FPGA firmware check box, click Finish to
complete the software installation and exit the M5200x Setup
Wizard.
Setting up the M5200x software 3
