Section 4.4: Troubleshooting issues with PathWave FPGA

4.4.1: Module-specific BSPs not installed

4.4.2: Xilinx Vivado tool not installed

M5200A PXIe Digitizer Modules Startup Guide
If the BSP file for either of the supported modules is not installed, the
KF9000B PathWave FPGA SW prompts the error shown in
you try to create a new project.

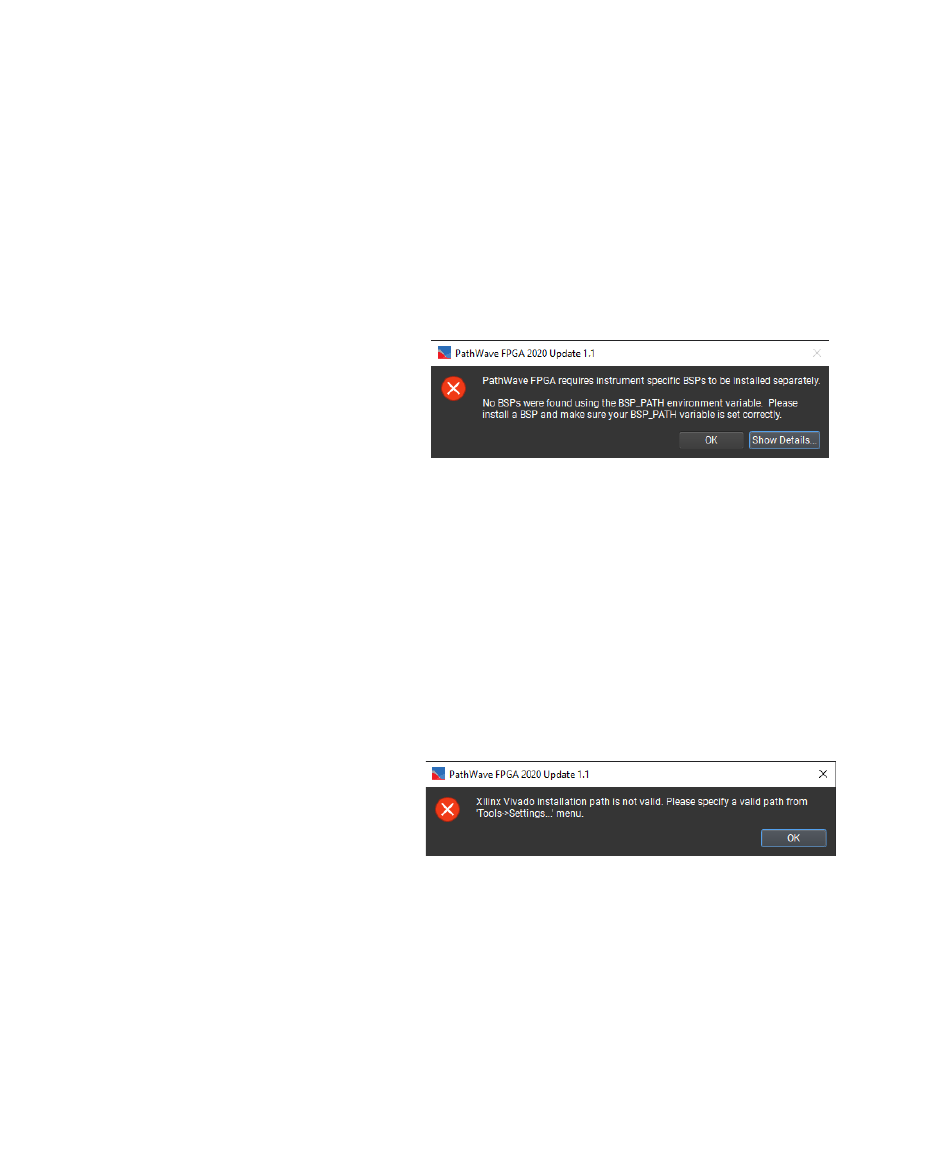

Figure 35 Error prompted by PathWave FPGA SW if BSP is not installed
To fix this issue, install / reinstall the SW drivers for the required driver.
See Installing required software
If you do not have the Xilinx Vivado Design Suite on the same machine
where the KF9000B PathWave FPGA software and BSP are installed, the
following error is prompted, when you click the Generate Bit File... icon.
Figure 36 Error prompted by PathWave FPGA SW if Vivado is not installed
In such cases, contact Xilinx support or download Vivado Design Suite
from https://www.xilinx.com/.
Troubleshooting and Safety information
on page 54.
