Step 2

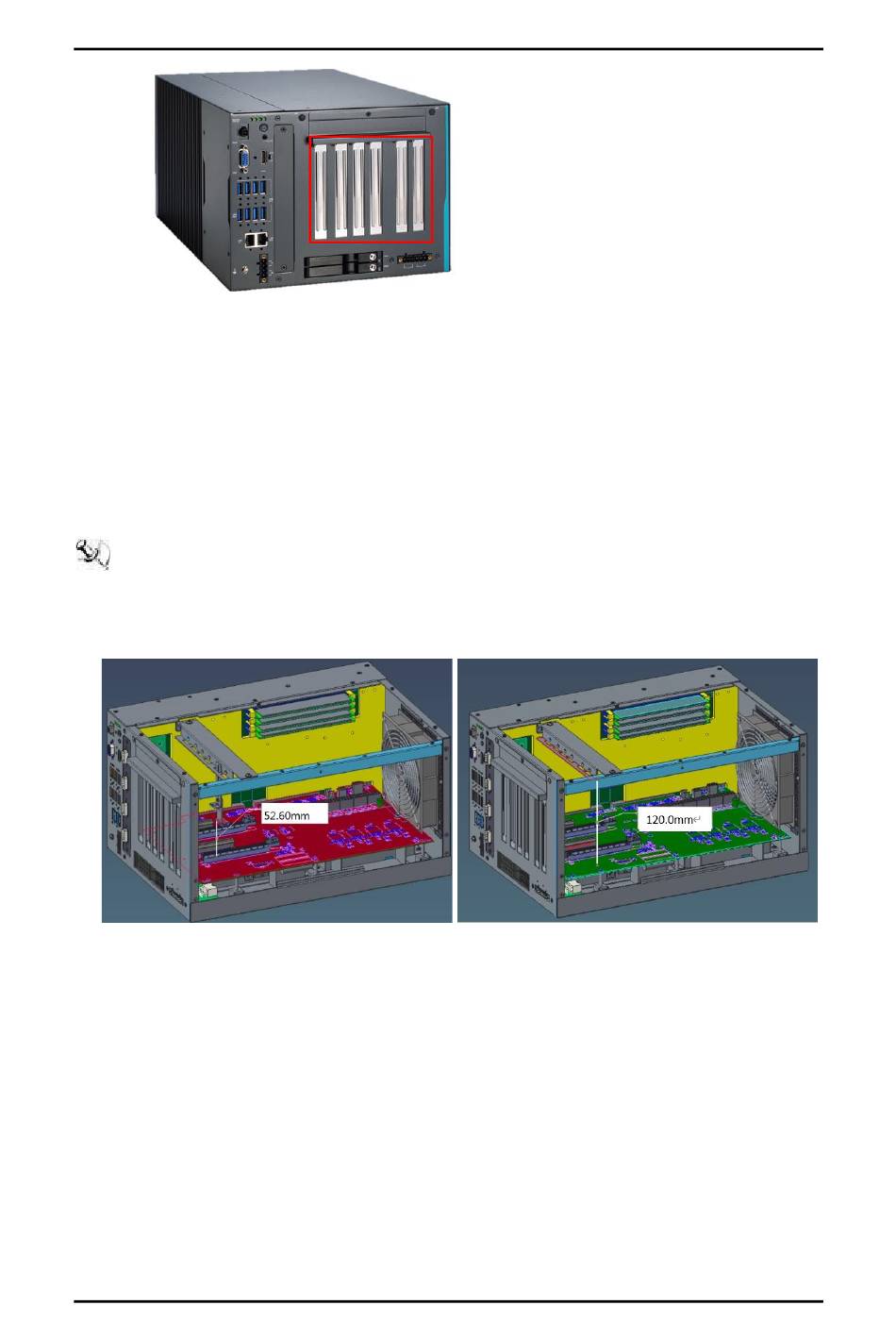

Align the PCIe card with the slot, press the card into the slot until it is firmly seated
and tighten the screws.
Step 3
Take the holder bracket and its screws out of the accessory box, then fasten the
holder bracket to the chassis to secure the add-on card in place.
Step 4
Close the side cover back to the chassis and fasten all the screws. The installation is
complete.
Note: When installing an add-on card with height lower than 120.0 mm and higher than
52.6mm, please take the extension holder bracket out of the accessory box and
follow the following steps to assemble.
Step 5
Assemble the extension holder bracket and the holder bracket. The procedure is
illustrated below.
Hardware Installation
IPC972 Series User's Manual
-
43
