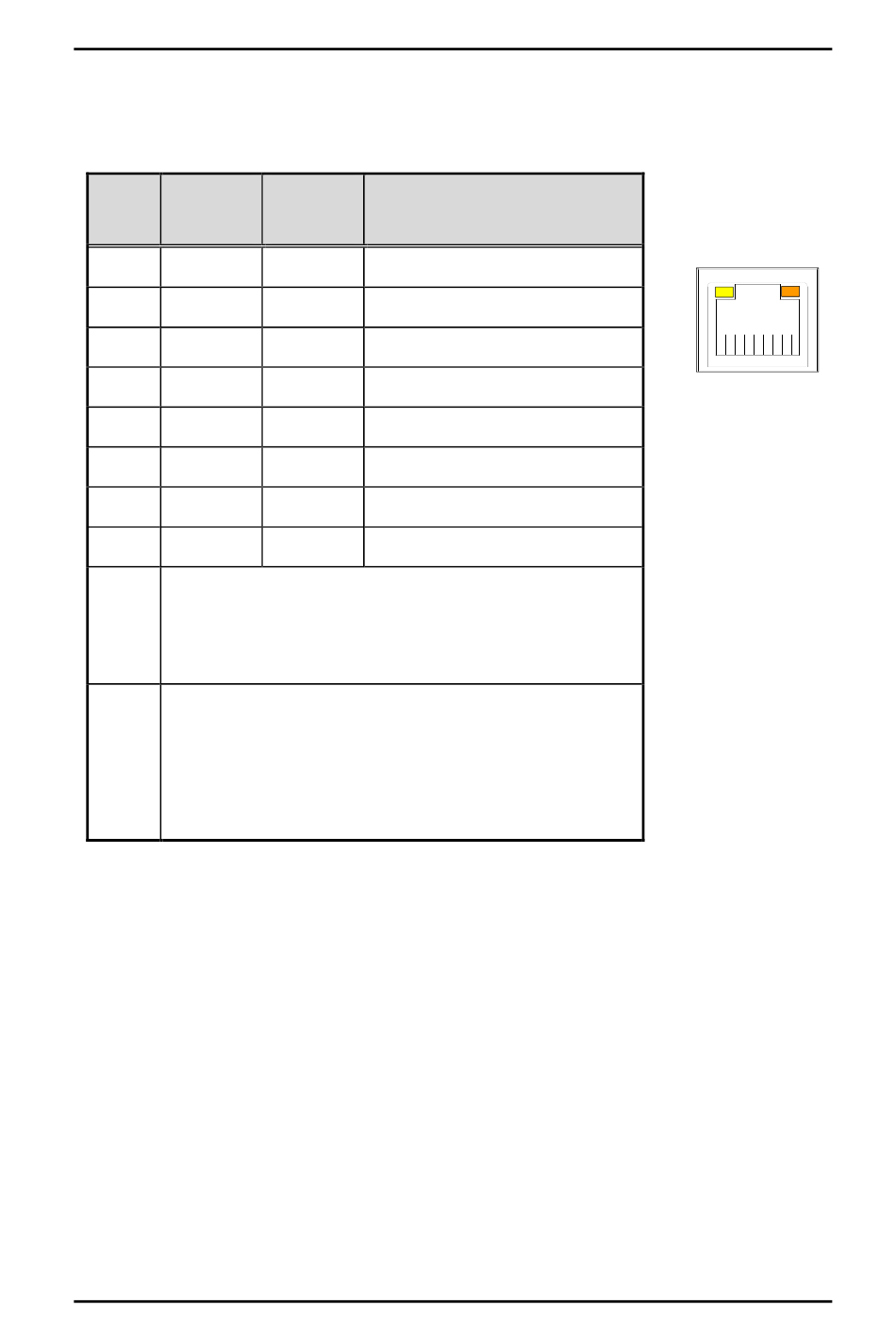

The system has two RJ-45 connectors: LAN1 Ethernet connection can be established by
plugging one end of the Ethernet cable into this RJ-45 connector and the other end (phone jack)
to a 1000/100/10-Base-T hub.
1000
Pins
Base-T
L1 BI_DA+
L2 BI_DA-
L3 BI_DB+
L4 BI_DC+
L5 BI_DC-
L6 BI_DB-
L7 BI_DD+
L8 BI_DD-
Active Link LED (Yellow)
A Off: No link
Blinking: Data activity detected
Speed LED
1000: Orange
B
100: Green
10: OFF
32
100/10
Descriptions
Base-T
TX+ Bidirectional or Transmit Data+
TX- Bidirectional or Transmit Data-
RX+ Bidirectional or Receive Data+
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
RX- Bidirectional or Receive Data-
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
A B
L8 L7 L6 L5 L4 L3 L2 L1
