1.7.4

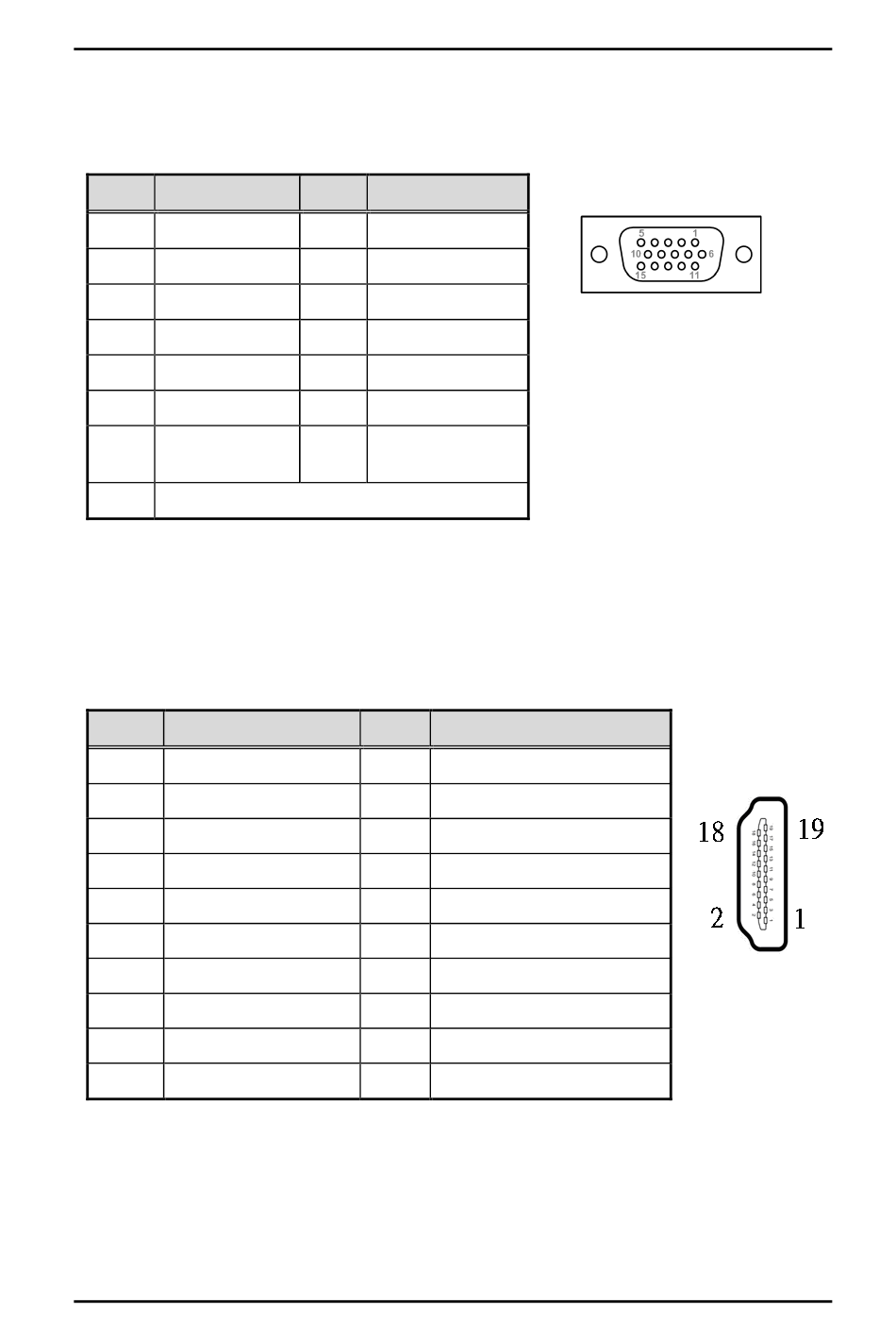

VGA Connector (CN5)

The CN9 is a 15-pin D-Sub connector which is commonly used for connecting a CRT monitor.
Pins Signals
1 Red
3 Blue
5 GND
7 GND
9 +5V
11 N.C.
Horizontal
13
Sync
15 DDC CLK
1.7.5

HDMI Connector (CN6)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single
cable.
Pins Signals
1 HDMI OUT_DATA2+
GND
2
3 HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5 GND
6
HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+
Introduction
Pins Signals
2 Green
4 N.C.
6 DETECT
8 GND
10 GND
12 DDC DATA
14 Vertical Sync
Pins Signals
11 GND
12 HDMI OUT Clock-
13 N.C.
14 N.C.
15 HDMI OUT_SCL
16 HDMI OUT_SDA
17 GND
18 +5V
19 HDMI_HTPLG
