3.3 Connecting the Port

3.3.1 Connecting the Console Port

The switch of S5864 has a console port.
The rate of the console port is a value ranging from 1200bps to 115200bps. It has a
standard RJ45 plug. It is odd-even optional and has traffic control. After you connect the
console port to the serial port of the terminal, such as STAR-510G+ or PC through a
console cable, you can configure and monitor the switch of S5864 by running a terminal
emulation software, such as super Windows terminal. The cable is provided according
to the host. The communication parameters of the terminal serial port can be set to a
rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic control.

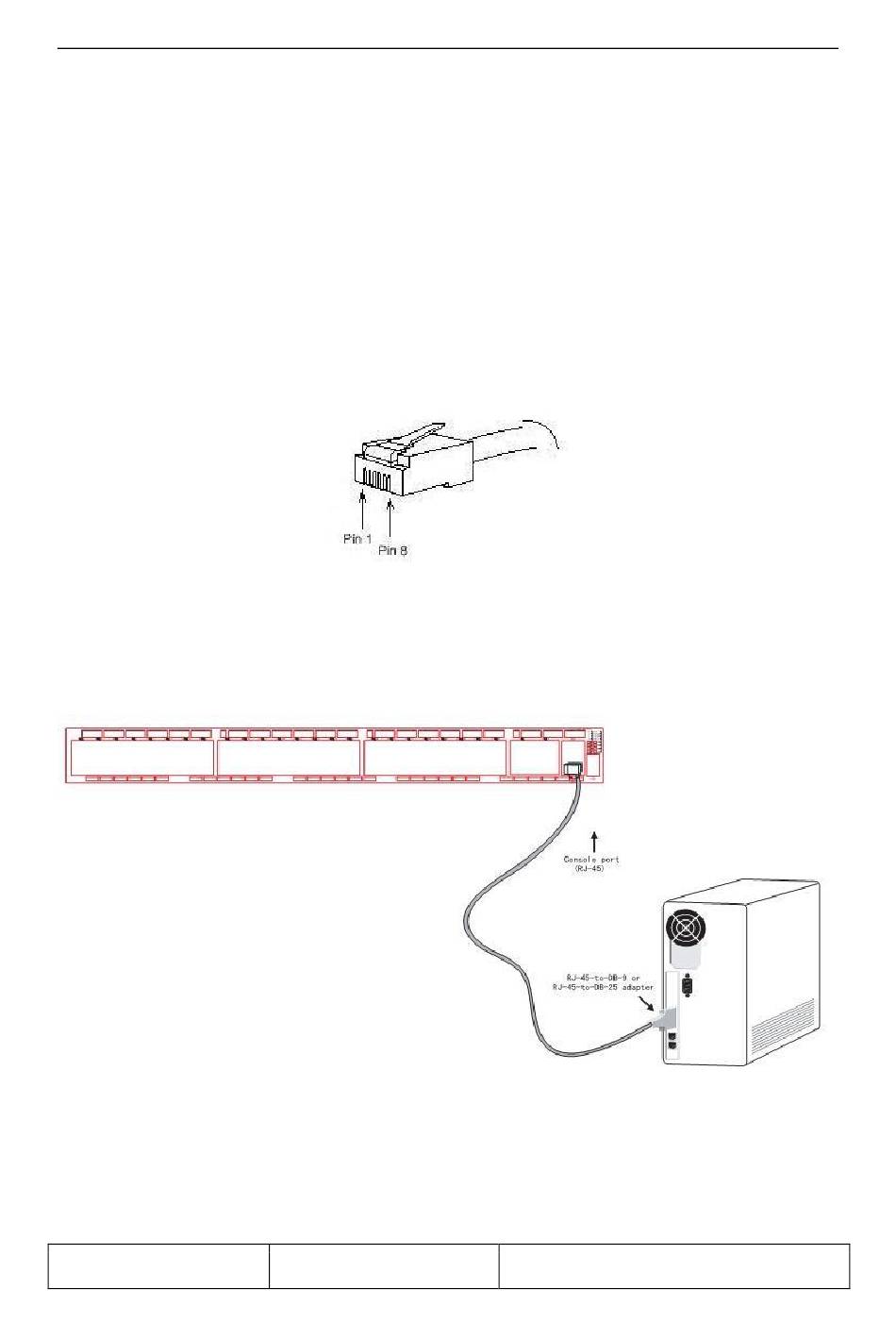

Figure 3-3 RJ-45 connector of the console port
The RJ45 connector of the console port is shown in the following figure. The RJ45 plug
corresponds to the RJ45 socket, whose pins can be aligned from left to right with the
value from 1 to 8.
Figure 3-4 Connecting the console port of S5864 and computer
Caution: The switch shown in figure 3-3 does not represent the material S5864.
Table 3- 1 Pins of the console port
NO. Name Remark
