Chapter 1 S5864 Introduction

The section describes the characteristics and parameters of S5864 and gives an
overview of S5864.
1.1

Appearance Description for Standard Configuration

The built-in ports of S5864 are: 48 10GE SFP+ ports, 4 40GE QSFP+ ports, 1 console
port, 1 gigabit management port and 1 USB interface.
Table 1-1 Attributes of the built-in port
Port
10GE optical port
40GE optical port
Console port
Ethernet management port
USB interface
S5864 has 5 hot swap fans and 2 two power sockets at its back.

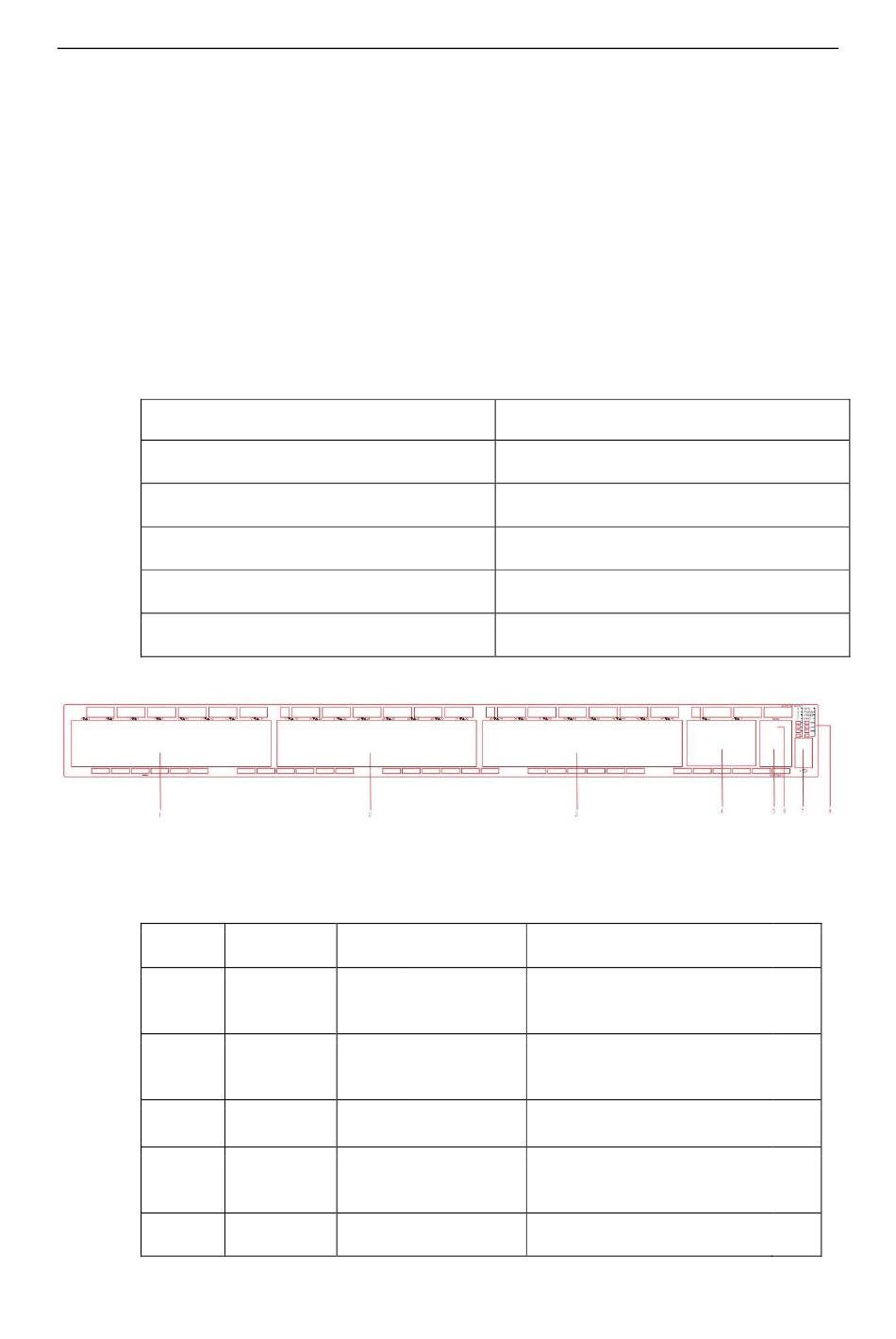

Figure 1- 1 Front template of the S5864 switch
Table 1-2 Parts at the front template of the S5864 switch
No. Abbrev.
1，2，3 SFP+
4 QSFP+
5 CONSOLE
6 MNG
7 USB
SFP+ interface, LINK/ACT indicator
QSFP+ interface, LINK/ACT indicator
RJ45 interface, a rate of 9600bps
RJ45 interface
USB interface
Name
10GE Ethernet optical
ports
40GE Ethernet optical
ports
Console port
Gigabit Ethernet
management ports
USB
- 1
S5864 Hardware Installation Manual
See table 1-1.
Attribute
Description
48 10GE SFP+ ports
4 40GE QSFP+ ports
Manages the switch locally.
Gigabit Ethernet Base-T
100/1000BASE-T
USB interface
ports,
