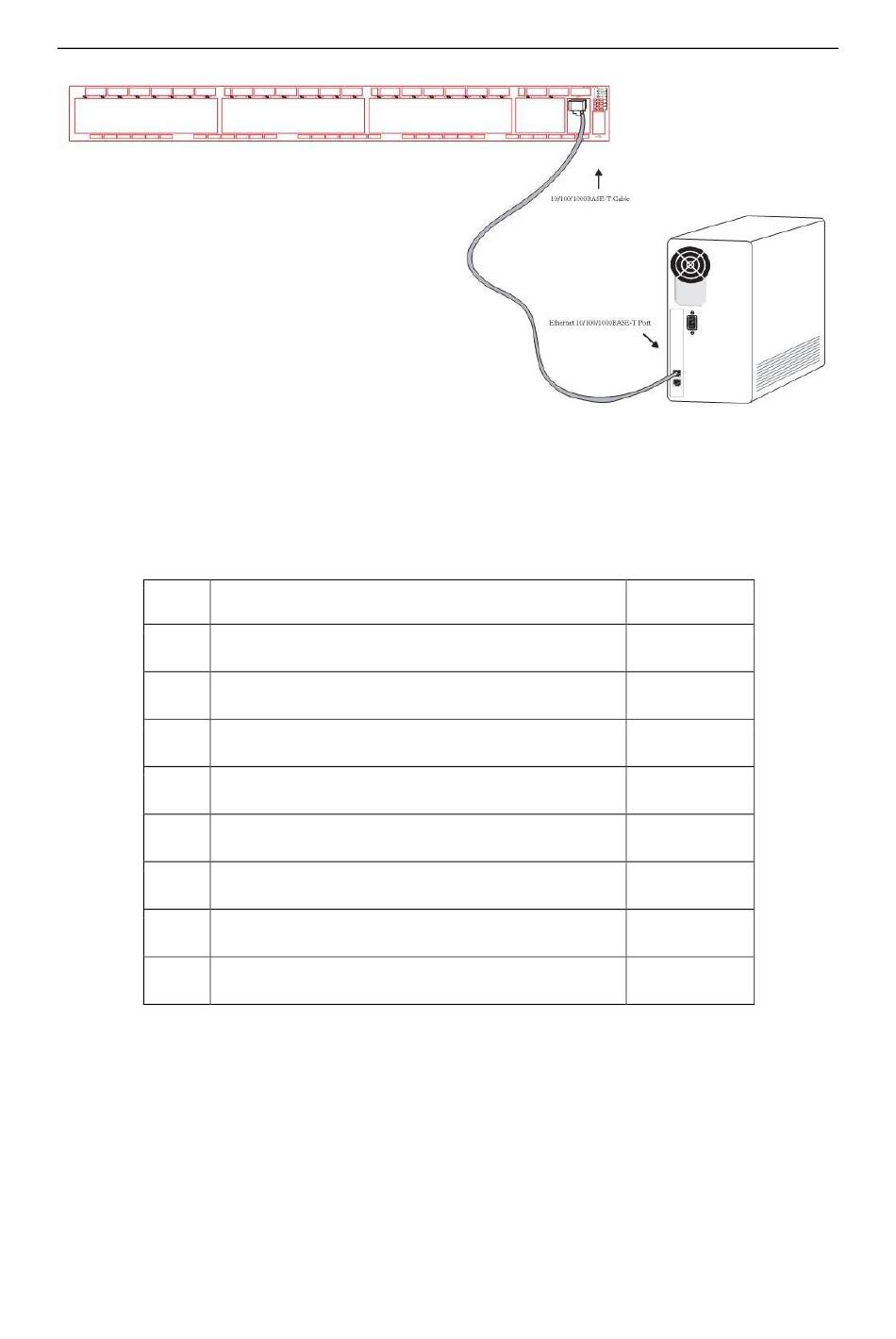

Figure 3-8 Connecting the 1000Base-TX port and other Ethernet terminals
Caution: The switch shown in figure 3-8 does not represent the material S5864.
No.
1
Sending/receiving the normal phase of data 0
2
Sending/receiving the paraphase of the data 0
3
Sending/receiving the normal phase of data 1
4
Sending/receiving the normal phase of data 2
5
Sending/receiving the paraphase of the data 2
6
Sending/receiving the paraphase of the data 1
7
Sending/receiving the normal phase of data 3
8
Sending/receiving the paraphase of the data 3
3.3.4 Connecting 40GE Ethernet QSFP+ Ports
S5864 provides with 4 40GE QSFP+ ports. Each port has its corresponding indicator: 1~4.
The four ports can be configured into 2 modes:
1.
Set the rate of the port to 40Gbps
You can connect the QSFP+ optical port to the QSFP+ optical module and then you
can connect other Ethernet terminal devices with 40GE optical ports through the optical
cable.
Table 3- 2 Pins of Gigabit RJ45
Pin Name
- 13
S5864 Hardware Installation Manual
Remark
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
