S5864 Hardware Installation Manual

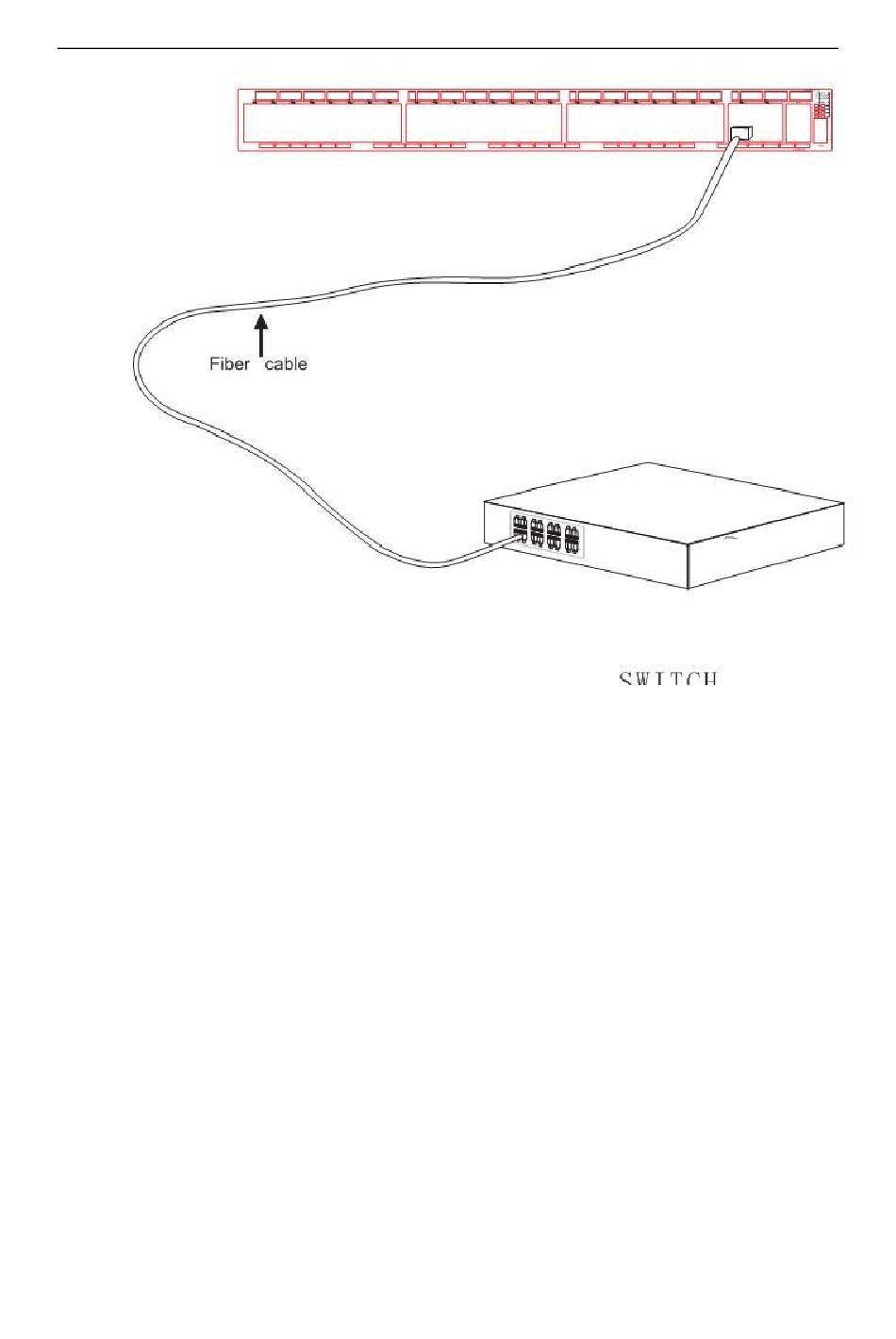

Figure 3-9 Connecting the 40GE QSF+ port and other Ethernet terminals
2.
Set the ports to 4 10GE ports
You can connect the QSFP+ optical module to the optical port and then you can
connect other Ethernet terminal devices with 10GE optical ports through the MPO-4*LC
optical cable.
- 14
